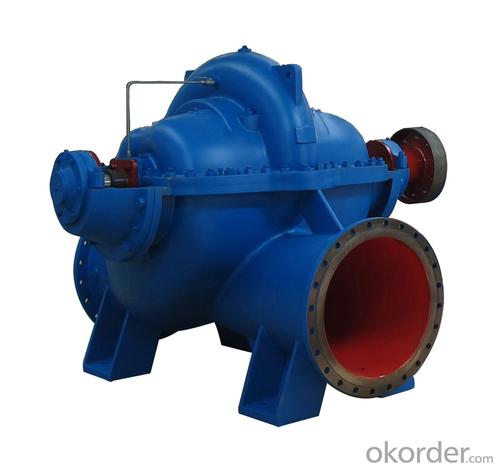

Split Casing Pump GS Series
- Ref Price:
-
- Loading Port:
- China Main Port
- Payment Terms:
- TT OR LC
- Min Order Qty:
- -
- Supply Capability:
- -
OKorder Service Pledge
Quality Product, Order Online Tracking, Timely Delivery
OKorder Financial Service
Credit Rating, Credit Services, Credit Purchasing
You Might Also Like
General Description
GS series split case pump are new type of single stage double suction centrifugal split pump with high efficiency and performance. It is widely used in delivering and transferring liquid, like municipal water supply system, waste water disposal, energy generating plant, mine and metallurgy industry, agriculture irrigation and flood disposal.
Performance range
Outlet diameter of pump DN 80—800mm
Capacity Q 22—116003/h
Head H 7—200m
Temperature T -20℃～105℃
Solid grains ≤80mg/l
Permitted working pressure ≤2.5Mpa
Instruction of pump type
GS300-700MA/4
GS: High efficiency Split case pump (single stage double suction centrifugal pump)
300: Outlet diameter is 300mm
700: The nominal diameter of impeller
M: remodel design of impeller
A: A\B\C separately represents that outer diameter impeller cutting
Structure
*GS pumps are horizontally installed, the casing and the cover of the pump are divided along the axis.
*The pump cover is above the shaft and the casing is under the shaft.
*The inlet and the outlet are under the shaft.
*The center-line of inlet and outlet is perpendicular to the axis.
*The rotor can be removed without disturbing the inlet pipe and the outlet pipe, only dismantling the pump cover while maintenance.
*The shaft seal uses packing seals or mechanical seals.
The direction of rotation
The rotation for GS series pump is clockwise looking from the motor to the pump, for example, the pump inlet is on the right, and the outlet is on the left. The motor can be connected with the other end of pump shaft according to customer’s requirements, meantime, the rotation, the direction of inlet and outlet are opposite to the above mentioned.
Material of main parts
The medium-contacting parts are made of cast iron.
The material of impeller: cast steel /brass /according to customer’s requirements.
Parts range
Pump, Motor, Coupling joint, Foundation plate and Mounting resistant cushion will be supplied when inlet diameter of pump is less than 200mm, more than 200mm inlet diameter will only supply pump, motor, coupling joint.
Remind:
Please indicate the material of main parts in your inquiry or purchase contract. Any special requirement, please don’t hesitate to contact us.
- Q: I want to put a water pump on a horse trough with the pump on the outside of the fence. There is a hose attachement at the bottom of the trough for the intake. I want to have the outake hook back to fall into the top of the water, reducing algae and eliminating mosquito larvae. I have never used a pump before. Need advice on type, size, etc. Thanks!
- Some people put goldfish in their troughs; I don't know if this is a great life for the goldfish but it would be easier.
- Q: Water pump part is stainless steel, which part is it?
- Of any part of the body that is in contact with water
- Q: I own a Camaro 1995 V6 3.4L automatic, it was diagnosed that the water pump was leaking and I was going to take it in on Saturday 3/1/08. But this morning I drove it and it seem that the car is losing power the RPM goes all up to 4-5 thousand to make a speed change. The car seems to stall like if it gets stuck the RPM goes up and eventually the next speed kicks in. I will be taking the car in tomorrow 2/27/08 to see whats wrong but I was hoping maybe someone knows whats wrong so that I can have an idea before someone tries to take advantage of me. I do know that the car started leaking water/coolant more than before after that little drive in the morning.The car is very well kept oil change is always on time .I always make sure that the water and the oil is level. transmission fluids are clean. I do know that the EGR Valve needs to be replaced. (hope this info helps)thank you
- if you dont have coolant in your car then it wont run right not to mention damage the engine
- Q: I want to build a portable, working steam room display for trade shows. I need to feed water from a storage tank to a steam generator when it's called for. How can I do this? Is there a type of water pump that would work for this?
- I would buy a little aquarium filter pump to feed the steam system.You can regulate it with a little valve in the tubing and use any kind of tub as a reservoir for the water depending on the amount you need to create the steam.
- Q: Pump house should be equipped with those equipment and valves
- The room should be full of equipment!
- Q: I'm only 18 and don't know much about cars, but my car was overheating so me and my boyfriend brought it to a mechanic.They told me it needs a new timing belt and water pump and that alone would be like 1450.. From my research that sounds like bullshit. By the way I drive a 2000 neon, is it THAT hard to work on, or am I being ripped off?
- Take it someplace else... I could be wrong but $1400 sounds to high.... maybe $400 would be closer to a correct ammount.
- Q: Colleagues, could you explain the principles of operation of the water vane vacuum pump? What range of pressure can one achieve with this type of vacuum pump? If somebody could post a reference to books, app notes, commercial datasheets of such pumps, that would be simply great.
- *Correctly said by Mr.Pete. I think you are asking about water ring vacuum pump. Basically it is a liquid ring vacuum pump. *A liquid ring pump is a rotating positive displacement pump. They are typically used as a vacuum pump but can also be used as a gas compressor. The function of a liquid ring pump is similar to a rotary vane pump the difference being that the vanes are an integral part of the rotor and churn a rotating ring of liquid to form the compression chamber seal. They are an inherently low friction design, with the rotor being the only moving part. Sliding friction is limited to the shaft seals. Liquid ring pumps are typically powered by an induction motor. *Single stage vacuum pumps typically produce vacuum to 35 torr (mm Hg) or 0.047 bar, and two-stage pumps can produce vacuum to 25 torr (mmHgA), assuming air is being pumped and the ring-liquid is water at 15°C (60F) or less. Dry air and 15°C sealant water temperature is the standard performance basis which most manufacturers use for their performance curves. *You have to take negative pressure if you are talking about pressure. Negative gauge pressure, a way of expressing pressure measurements below atmospheric pressure.
- Q: The pump works and water goes to the house from the reserve tanks but there can be long delays before it cuts in after mains pressure is lost. After it stops the pressure gauge falls back slowly to zero. Pressure vessel is a sphere has a valve on top. Any suggestions ?
- Espa Water Pumps
- Q: Hey guys, I have a American Volkswagen Jetta 1999 manual transmission Gas Fuel, and the water pump is messed and I need to know where it goes. In front of the radiator? or somewhere else? Does anyone know where I can get any websites showing me instructions? Thanks.
- The okorder for the kit. It comes with a water pump. There are other websites that sell complete VW kits, that is just the one I used. The Bentley brand manual is the best and a must if you plan on working on your own car.
- Q: do I need to replace it again ? How hard is it to change the water pump? Any Idea where on the internet I can download a free maintenance manual or replacement instructions ?
- If it were mine, I'd replace the belt again anyway, coolant can accelerate the wear or advance rotting of the belt. The waterpump is driven off of the timing belt so you'd need to make sure you have it all set up to TDC and all marks aligned before removing the belt. Then just remove the bolts to the water pump, scrape away all old gasket material and install new pump, torque bolts to specs w/ micrometer (in lbs) but before you can do all that, you have to remove all components on the front of the motor. Long story short...let a shop do it for you!!!
