Product description

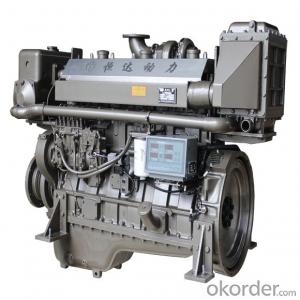

Main products of our engine: displacement from 3L to 15L, Power ranging from 20KW to 450KW. We have B, L, C series products ,which is America Cummins technology;615, 618 series products, which is Austia Steyr technology. Products are researched and developed independently include Marine power diesel engine, Diesel Generator , Machinery diesel engine , Diesel Generator Sets, Fire pump.The power range of generator set produced by the company is 20-2000kw. The products are common type, automatic type, silent type, multi machine grid connected type, etc.
Engine features
1. Digestion and absorption of advanced technologies at home and abroad carefully build a product.
2. By the whole crankshaft,high-quality alloy cast iron body and the cylinder colver, has large power oil consumption,small volume,light weight, small vibration, low noise.
3. By domestic fomaous turbocharger and a high-pressure oil pump, direct injection combustion system, fuel injection pressire, power, economic benifit .
4.Compact structure, convenient use,high reliability, overhual period is more than 10000 hours.
FAQ
1, What is your warranty period?
Our wanrranty period is 1 year or 1000 running hours, whichever comes first (Excep the damageable spare parts of genset causesd by incorrect man-made operation).
2,What is you MOQ?
Our MOQ is 1 set.
3, What is your delivery time?
Less than 10 sets, 30 working days after received the 30% T/T deposit.
4,What is your payment term?
30% TT as deposit, 70% TT before shipment.
5, What is your comapny's available production capacity?
300 sets per month.
- Q: A couple years ago the power in our area was out for two whole weeks because of ice and such, we stayed warm thanks to gas heating but now I'm in an all electric mobile home in the same area. All I want to power is the refrigerator, deep freeze, microwave, one laptop and at least one, maybe two little plug in heaters.I need to know what size/type generator to get and if I need a separate kit or anything in order to hook up to my mobile home. I don't want to buy the wrong type or size and find out it doesn't work in the middle of an ice storm again.Thank you for any and all help, it's very much appreciated.
- Total the wattage of All of the devices you want on the generator. Typical heater is about 1500 watts, a microwave about 900, the freezer and the refrigerator about 1500 or 1800 watts each, totals to about 4500 watts. If you get a gas generator which is the least expensive type then a unit 1.5 times the total is the smallest you should choose for a typical run item these will probably be rated about 7500 watts peak. Any smaller and you risk brownouts that will destroy the equipment you are trying to operate. A 10% cushion is just too small for these smaller units. If you choose a more expensive diesel powered unit it is safer at the 7500 watts, if you choose natural gas or propane then it must be double the computed wattage.
- Q: Hi,I read an article and it said This implies, that more or less all customers of Esson, who own appliances dependent on permanent electricity supply, dispose of their own emergency Diesel-generator installed on their premises.I try to understand it, but I think it is grammartically wrong. I think it should be This implies that more or less all customer of Esson, whose own appliances depend on
- who own appliances and whose own appliances are both correct but they mean different things. The first one is saying those people OWN (have) appliances. The second one is saying those people have their OWN appliances. The first 'own' is a verb, the second 'own' is an adjective. In the text, a simpler way of saying it is: This implies that more or less all customers of Esson, who have appliances that depend on electricity supply. .
- Q: I am build a 40KVA permanent magnet generator for diesel engine. the customer request the voltage is DC 28V after an rectifier. may be this 28V dc charge for the battery. can someone help me how much AC voltage should be output by the permanent magnet generator?permanent magnet generator----AC ???V----rectifier---28VDC---charge to battery.
- In AC side connect a series high current Choke with less no of turns take the out put use a High current bridge Diodes with suitable heat sink.For regulating out put ,In the series choke place a Dc winding that can be excited by a separate dc circuit, Increase saturation will give same voltage decrease excitation will give drop in voltage.It is like magnetic Amplifier.Set the out put voltage with pre set point or a regulating circuit.I have given rough Idea If you want further detail PM me (This only cheapest method unless you have use thyristor or others to con troll may be expensive)
- Q: hi,Thanks for your help in advance,Need more information on recent trends in applications of DC shunt generator. Kindly help.thank you
- Well you already said it was a DC generator. By nature all generators generate their output voltage in cycles as they rotate, or even as they go back and forth for a linear generator. Therefore they generate AC, but the commutator converts this to DC. The commutator is a rotary switch that reverses the connection at the correct part of the rotation so that the current always flows one direction. That is DC, direct current instead of AC, alternating current. Sometimes AC generators may be called an Alternator. A shunt generator simply means it is self excited, that is the field magnet is connected across the generator's output, rather than having a separate DC generator for the field.
- Q: I'm a student majoring in Architecture one of my class, Building Utilities, needs me to survey a high rise building. In my team, we divided the parts bc there are so many and one of my job is to electricity. Can someone explain to me the meaning of phase, R.P.M, power factor, and (especially) their respective units/numbers from this picture
- Phase is 3Φ 4W, which means three phase, four wires. Three wires for each of the phases and one wire for the neutral. There are two ways to connect 3 phase generators, ywe which looks like the letter Y (3 or 4 wires) or delta which looks like a triangle (3 wires). Voltage is 380/220V, which means a wye-connected generator with two voltages available. For heavy loads like heating and motors, a line voltage of 380V, measured across two of the phases, is available. For light loads like lights and outlets, a phase voltage of 220V, measured across a phase to neutral, is available. The use of 380V means smaller conductors can be used. When the generator spins at 1500rpm (revolutions per minute), the output frequency is 50Hz. N 120 f / P P 120 f / N 120 * 50 Hz / 1500 4. The generator has 4 poles per phase. Since it is an even number, the generator is a synchronous generator. Prime is the Apparent Power S in kVA that the generator set is capable of providing for an unlimited number of hours per year. In this case 600kVA. But as a Standby Generator (Emergency) operated less than 500 hours/year, the apparent power S is 660kVA. Current is 1003A. This is the rated current that can be supplied to the building at 380/220V. S √(3) V_LINE I_LINE I_LINE S / (√(3) V_LINE) 660kVA / ( √(3) * 380V) 1003A Power factor 0.8 lagging, which means at worst case the loads attached to it can have a power factor greater than 0.8. Power factor P / S. P S * pf 660kVA * 0.8 528kW The Real Power P or W loads the generator can supply are 528kW. So it can supply 5280 100W light bulbs, for example. If power factor is 1, 660kW could be supplied. There should be an electrical switchboard close to the generator, which will have labels showing how power is fed throughout the building. Everything else is specific to the device (Model, Serial, etc). Probably too much information for you, but when you are trying to understand something too much is better than too little.
- Q: Design the logic circuit for starting an emergency diesel generator. For the generator to start, the generator must be disconnected from the bus, there must be sufficient start air pressure, and the fuel tank must indicate there is oil. When these conditions are met, then the diesel may be started. Presume there are senors to determine these values.
- This is just an and gate function. When the outputs of all the sensors are true and a start command is present, the output of the gate will go high to allow the engine to start.
- Q: Did some searching, and found little other than single, model specific, manuals (either paper or on CD). The paper manuals are $50-60 each. Single model PDF manuals on CD are about $20.Does anyone know if a comprehensive set of shop service manuals is even available for Yamaha Portable Generators? (gas and diesel) I don't mind paying, but I don't want just ONE manual, I want 'em all. That way I don't have to go through this again when a different model Yamaha comes into my shop. TIA for any help!:-) ?
- try okorder
- Q: If i had a remote alaskan town of 1000 residents, how much power would I need to generate to run the whole town. Would a diesel generator work?
- A mine can take a *LOT* of power. If it were just the people, and they were not used to electrity, maybe a MegaWatt would be enough, for a while at least. Since you would be burning diesel to make the electricity, price would be high. You might want to get firm contracts that somebody would buy all you generate.
- Q: I know that when a coil is moved between magnets, it produces electricity. how does a generator work without magnets ?one more thing I want to know, what makes the generator turn on when the light go out ?
- Generators all use magnets of one form or another either permanent magnets, or electromagnets.
- Q: Electrical Power Generator, Capable of using JP-8 fuel.
- J P-8 is a better hotter burning deisel fuel they use it in the military on diesel motors as well as generators
