Tower Crane TC7135 Double-trolley Type
- Ref Price:
-
$40,000.00 - 200,000.00
/ unit
- Loading Port:
- China main port
- Payment Terms:
- TT or LC
- Min Order Qty:
- 1 unit
- Supply Capability:
- 30 unit/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Quick Details of TC7135 tower crane
Feature: Tower Crane
Condition: New
Max.Lifting Load: 16T
Span: 71m
Place of Origin: China(Mainland)
Model Number: TC7135
Packaging & Delivery of TC7135 tower crane
Packaging Detail: Nude package
Delivery Detail: 25-30days
Specifications of TC7135 tower crane
● Max. working range 71m, tip lifting weight 3.5T and Max. lifting weight 16T.
● Slewing mechanism and trolleying mechanism all take VFD+PLC technical control.
● Take double-trolley type, greatly enhance lifting performance.
Free standing height (m) | 50 | ||||
Max height with attachment (m) | 200 | ||||
Working range can be adjusted（m） | 50、55、60、65、71 | ||||
Min working range（m） | 2.5 | ||||
Max lifting capacity（t） | 16 | ||||
Tip load @ 71m（t） | 3.5 | ||||
Hoist mechanism (VFD+PLC) | Falls | 2 | 4 | ||
Lifting capacity（t） | 0－4 | 0－8 | 0－8 | 0－16 | |
Speed（m/min） | 0－80 | 0－40 | 0－40 | 0－20 | |
Motor | YZPBF280-8-55KW | ||||
Trolleying mechanism (VFD+PLC) | Speed（m/min） | 0-56 | |||
Motor | YPBE132M-4-7.5KW | ||||
Slewing mechanism (VFD+PLC) | Speed（r/min） | 0-0.6 | |||
Motor | YLEW112M-6-120N.M×2 | ||||
Climbing speed（m/min） | 0.5 | ||||
Counterweight（t） | 26 | ||||
Mast section size（L×W×H）m | 2×2×3 | ||||
Working temperature | -40－+60℃ | ||||
Total power (KW) | 95 | ||||
Power supply requirement (KVA) | 255KVA for generator | ||||
Cable type ( within 30 meters from site power source to lower electric box of tower crane ) | |||||
Startup voltage & current | 380V×95%=361V 260A | ||||
Rated working voltage & current | 380V 146A | ||||

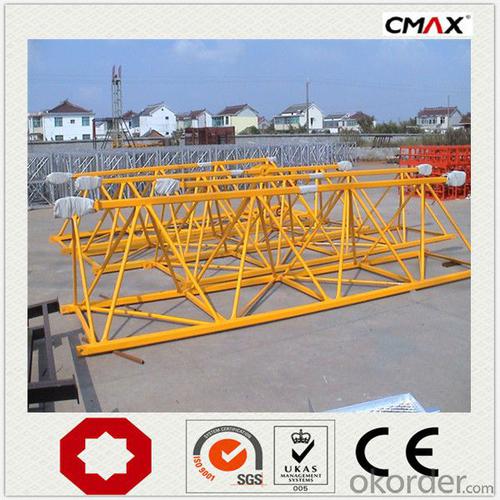

Images of TC7135 tower crane
FAQ of TC7135 tower crane
Q: What about our tower crane's warranty?
A: Usually there is one-year quality warranty including main electronic parts (not including consumable parts). There are consumable spare parts together with whole machine and normally they are enough for one year.
Q: What is 3 main mechanism of the tower crane?
A: there are trolleying mechanism/ slewing mechanism/ hoisting mechanism.
Q: Can you equip with light on tower crane jib, monitor, remote control and anemometer?
A: Sure. All of these could be provided with extra cost upon the clients’ requirements. But according to general practice, remote control is not suggested because most of the operator feedback operation in the cabin will provide a wide working view.
To Lead The Revoluation of International Trade
- Q: I would like to get some advice from Martial artists of the training that Crane style Kung Fu go trough especially the balance. I would like to learn how they learn to balance without difficulty and the training they go trough.
- Balance is balance - there's no specific training but good balance will help you with all aspects of your training. A few things that helped me - tying shoelaces by getting into a crane posture rather than kneeling to the laces. The concentration on the shoe helps to balance you. Practice Crane Stance and try to keep a clear mind while in the stance - if you start worrying then you'll fall. Remember to keep the knee high and the foot pointed.
- Q: I have a vessel 40 feet off the ground in a platform, and the crane can get to within 30 feet of it (from the side). I'm more curious of the process for sizing them though.
- As you won't be building your own crane (that would be stupid since you would be fully liable). Call a crane vending/renting company. They'll be more than eager to provide you with technical council. How you pick a crane? What do you need to do with it - type of crane for instance -Moving stuff around in a warehouse, yard,.. always at the same places = overhead crane -Lifting heavy stuff once (for instance another crane) or for a short period - mobile crane -lifting stuff for a longer period but not permanent (construction) = tower crane How much do you need to lift, what can it cost? ... It's al pretty simple
- Q: I need step by step information on how to make a paper crane.
- Go okorder and search PAPER CRANE... then you will find a page easily than easily tells you how to do it with pictures and everything.... EASILY
- Q: What are the components of a tower crane? What are its main technical parameters? What is lifting torque?
- 1. Tower crane consists of three parts: metal structure, working mechanism and electrical system. The three main technical parameters are lifting moment, lifting weight and working speed. Lifting moment refers to the boom as the basic arm length maximum amplitude corresponding to the rated lifting weight of product, product or maximum weight with the corresponding inflection point.
- Q: Operation points of tower crane (tower crane)?
- Slewing bearing: tower crane is one of the most critical components, mainly to bear overturning moment and vertical load. After the failure, the demolition and replacement is extremely difficult, loss of large, so you have to check carefully to do maintenance, each 200H must be a senior grease lubrication from the rotary bearing surface, until now exudation. Slewing bearing adopts high strength bolt connection, if the pretension is not enough, or long-term operation, do not check, not fastening, will cause loose. If the individual bolts loose, will cause the remaining bolts overload, the consequences will be disastrous. The luffing mechanism only moves horizontally, the load is light and the line speed is not high, so it should be easy to master and operate. However, the amplitude involves the change of the lifting torque, and if there is no stopping in time, there will be the possibility of over torque. Therefore, the main requirement of variable amplitude operation is stationary parking and accurate positioning. The tower crane is of great height and the hanger is hung longer, so it is easy to swing the hanger when it is running. This is an objective phenomenon. What is called stabilization hook operation is how to make the swinging hook stop quickly, or how to make the hook move with the movement of the crane as soon as possible, and minimize the operation of the swing. The operation of stabilization hook is the skill that the driver should master.
- Q: What symbols are there in the story? What might be the symbolic meaning of the sea? the boat? the seabirds? the shark? the unmanned life-saving station? the lighthouse? the tourists on the beach?What is the theme of the story? What does the story as a whole say about human beings and nature? about male bonding? about survival? how are these three topics related in the story as a whole?
- This Site Might Help You. RE: The Open Boat by Stephen Crane? What symbols are there in the story? What might be the symbolic meaning of the sea? the boat? the seabirds? the shark? the unmanned life-saving station? the lighthouse? the tourists on the beach? What is the theme of the story? What does the story as a whole say about human beings and nature?...
- Q: ok I found an injured crane what do I feed it?
- Cranes are omnivores. But I would feed crane with vegetarian stuff like grain, berries, plants, roots, seeds, stems, bulbs, fruits, nuts. But if you want make it non vegetarian then rodents, fish, amphibians, snakes, rodents, lizards, small fish, frogs, shellfish, mollusks and crustaceans.
- Q: I just watched hunger games, and in the end Secana Crane was locked in a room with nightlocks, but why did they do that to him? what did he do to get killed?
- He angered the President by failing to stop the contestants from beating the game, so his death was demanded.
- Q: What is the insulation resistance of tower crane?
- The lightning resistance of tower crane (tower crane) on the construction site shall be no more than 4 ohms.I. tower crane GB/T 5031--20085.5.5.9 lightning protectionIn order to avoid lightning stroke, the main structure of the tower crane, the motor frame and all the electrical equipment metal shell, wire metal protection tube should be reliable grounding, and its grounding resistance should be no more than 4 ohms. When multiple repetitive earthing is adopted, the grounding resistance shall be no more than 10 ohms.
- Q: Emergency treatment of interrupted electricity during lifting of tower crane
- The rotating gear shall be immediately inserted into the screw or wood, while the power supply shall be checked rapidly to remove the trouble.
