Tower Crane TC6024 Max. lifting weight 10 T
- Ref Price:
-
$40,000.00 - 200,000.00
/ unit
- Loading Port:
- China main port
- Payment Terms:
- TT or LC
- Min Order Qty:
- 1 unit
- Supply Capability:
- 30 unit/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Quick Details of TC6024 tower crane
Feature: Tower Crane
Condition: New
Max.Lifting Load: 10T
Span: 60m
Place of Origin: China(Mainland)
Model Number: TC6024
Packaging & Delivery of TC6024 tower crane
Packaging Detail: Nude package
Delivery Detail: 25-30days
Specifications of TC6024 tower crane
● Max. working range 60m, tip lifting weight 2.4T and Max. lifting weight 10T.
● Slewing mechanism and trolleying mechanism equipped with VFD technical control, stable and reliable,can provide stepless speed regulation.
● Outstanding in working efficiency, operating speed and stability. Reduce future maintenance cost.
Free standing height (m) | 50.5 | |||||||
Max height with attachment (m) | 200 | |||||||
Working range can be adjusted（m） | 48、54、60 | |||||||
Min working range（m） | 2.5 | |||||||
Max lifting capacity（t） | 10 | |||||||
Tip load @ 60m（t） | 2.4 | |||||||
Hoist mechanism (VFD+PLC) | Falls | 2 | 4 | |||||
Lifting capacity（t） | 0－2.5 | 0－5 | 0－5 | 0－10 | ||||
Speed（m/min） | 0－80 | 0－40 | 0－40 | 0－20 | ||||
Motor | YZPBF250M1-6-45KW | |||||||
Trolleying mechanism (VFD+PLC) | Speed（m/min） | 0-56 | ||||||
Motor | YZPBE132S-4-5.5KW | |||||||
Slewing mechanism (VFD+PLC) | Speed（r/min） | 0-0.6 | ||||||
Motor | YTW112M-4-5.5KW×2 | |||||||
Climbing speed（m/min） | 0.5 | |||||||
Counterweight (t) | 48m jib | 54m jib | 60m jib | |||||
15.45 | 17.85 | 18.9 | ||||||
Mast section size（L×W×H）m | 2×2×3 | |||||||
Working temperature | -40－+60℃ | |||||||
Total power (KW) | 63 | |||||||
Power supply requirement (KVA) | 230KVA for generator | |||||||
Cable type ( within 35 meters from site power source to lower electric box of tower crane ) | 50mm2（3+2, 5 cores） | |||||||
Startup voltage & current | 380V×95%=361V 219A | |||||||
Rated working voltage & current | 380V 121A | |||||||

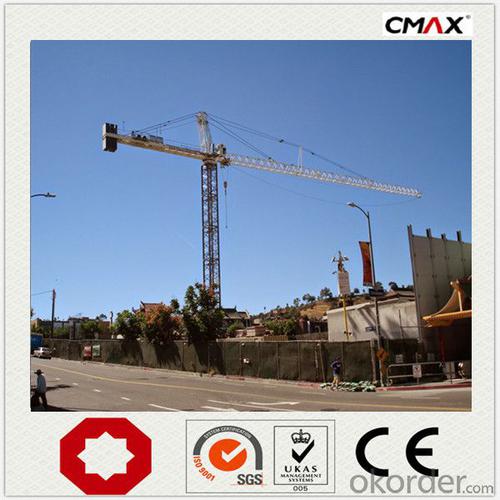

Images of TC6024 tower crane
FAQ of TC6024 tower crane
Q: What is the principal to quote the right tower crane to the client?
A: First, we need to know clients’ requirements. Normally the following information should be clarified by the client: max lifting capacity, height (height under hook), tip load and jib length.
Second, we need to know what the foundation requirement from the client is. (Fixed/undercarriage/ undercarriage with traveling system), mast section type (panel/integrated), power supply source (voltage, ampere and frequency), the distance between the machine and power supply……
Third if there are special needs, we could suggest proposal according to clear data provided by the clients. End-user, as construction machinery buyer, knows the site situation well and should make decision, such as the machinery specification, type…….
Q: What about our tower crane's warranty?
A: Usually there is one-year quality warranty including main electronic parts (not including consumable parts). There are consumable spare parts together with whole machine and normally they are enough for one year.
Q: What is 3 main mechanism of the tower crane?
A: there are trolleying mechanism/ slewing mechanism/ hoisting mechanism.
Q: Can you equip with light on tower crane jib, monitor, remote control and anemometer?
A: Sure. All of these could be provided with extra cost upon the clients’ requirements. But according to general practice, remote control is not suggested because most of the operator feedback operation in the cabin will provide a wide working view.
