Scaffolding Parts-Color Galvanized Brace End Thickness 2.75mm

Scaffolding Parts-Color Galvanized Brace End Thickness 2.75mm System 1

Scaffolding Parts-Color Galvanized Brace End Thickness 2.75mm

Ref Price:

Loading Port:: XINGANG

Payment Terms:: TT

Min Order Qty:: 2000 Unit/Units pc

Supply Capability:: 10000 Unit/Units Per Month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

Concrete Formwork Plywood

Premium Table Formwork System

Steel Frame Formwork SF-140

Hot Dip Galvanized Tie Rod Nut With Base Plate For 80mm

Scaffolding Parts-Hot Dip Galvanized Brace End Thickness 3.5mm

Formwork System-H20 Timber Beam With Length 4200 mm

Plank Clamp

Adjustable Aluminum Formwork For Rectangle / Square Concrete Column Formwork

Quick Details of Color Galvanized Brace End Thickness 2.75mm

Place of Origin: China (Mainland)

Brand Name: CMAX

Type: Scaffolding Parts

Scaffolding Part Type: Other

certificate: SGS,ISO9001

color: silver or black gray

Pipe production process (hot rolled technique)	Billet inspection--- acid washing, cleaning--cutting--visual inspection--scraping--visual reinspection--centering--heating--piercing--pipe rolling--sizing--cooling--reheating--stretch reducing--cooling--straightening--ends cutting--visual inspection--electromagnetic, eddy current testing-- drifting--hydraulic testing--marking and packing




Size	O.D: 38.1mm-48.6mm
	W.T: 2.0mm-4.0mm
	Length: 5.8m, 6m, 11.8m, or according to the clients' requirements.
Material	Q195-Q345, S235JR, S275JR, S355JR, GR.B-D, STK500
Standard	GB/T3091-2001, BS1387-1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53SCH40/80/STD.
Usage	mechanical treatment field, petrochemical industry, transport and construction field
Main Market	North/South America, Europe, Asia, Africa, Mid East,etc
Sruface	Galvanized
Authentification	ISO9001:2008 SGS BV
MOQ	5 ton or according to customers' requirement
Port	Tianjin Port
Package	1.Packed in bundle,suitable for sea transport(by container)
Package	2.According to the clients' requirements.
Delivery term	FOB(30% deposit the balance before shipment)
Delivery term	CIF(30% deposit the balance against with the copy of B/L)

technology: galvanized, powder coated

Item	Scaffolding Diagonal Brace End
Material	Q235
Dimensions	0.66kg
Standard	EN74
Note	OEM service is available
MOQ	1000pieces
Package	in steel pallet ,carton, plywood case, or as your request
Payment Terms	TT,L/C, we can contact in detail
Delivery Time	20-30days

Futures of Color Galvanized Brace End Thickness 2.75mm

1) up to eight connections per joint

2) option to attach horizontals at right angles with high accuracy at the required level

3) free choice of angles between horizontals by using large or small connection gaps

4) load transfer aligned to axes with positive connections

5) the flat shape of the connection plate means no mortar, dirt, ice, grit blasting debris etc. can accumulate

6) high joint load capacity and stiffness

7) can be adapted to suit any plan shape and form of construction by using the variable connection options,

the choice of spans available and freely selectable scaffold height increments of 50 cm

8) hot dip galvanized surface for long lasting antirust ability

Packaging & Delivery of Color Galvanized Brace End Thickness 2.75mm

Packaging Detail: In steel pallet,or customized as your request.

Delivery Detail: 15days after received the down payment

Specifications of Color Galvanized Brace End Thickness 2.75mm

Timely delivery,

Lastingly Rustless,

Fracture performance advantages,

Strong ability to resist deformation

Ringlock System standard/48.3mm * 3.2mm

Description	Dim(L)mm	Weight (kg)
1.0m	1000mm	4.99
1.5m	1500mm	7.8
2.0m	2000mm	9.7
3.0m	3000mm	14.41
4.0m	4000mm	19.12

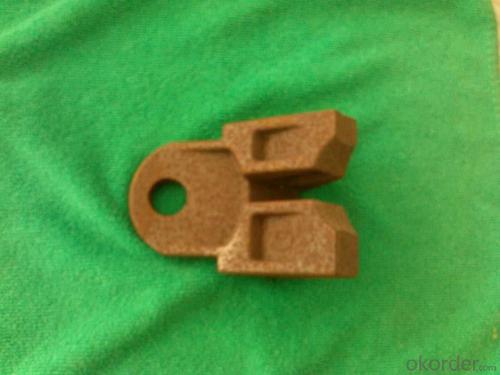

The detail of the Diagonal brace end Thickness 2.75mm

Specifications	data
material	Q235
technology	galvanized, powder coated
certificate	SGS / ISO9001
weight	0.66kg
*other details see below pictures,the length can under your requestments

About us

1.Enough production lines and workers to delivery on time.

2.Main product: Scaffolding System( Kwikstage, Cuplock, Ringlock, Haki); Scaffold Coupler( British Type, American Type, German Type, Italian Type, Australian Type, Mideast Type, Korean Type, Janpanese Type, Indian Type etc.); Shoring Props,Formworks, Frame System, Scaffold Steel Tubes, Accessories, Steel / Aluminum Planks etc.

3. Main Market: Europe, Australia, Newzealand, North America, Middle East, ect.

4.Our products have passed the customer`s quality test,and the factories have thequality testing instruments.

5.OEM Service

6.Rizhao is a coastal city with convenient transportation.

7.Provide good service for everyone.

Color Galvanized Brace End Thickness 2.75mm

Q:What is an integrated climbing frame? What are the works? What are the advantages: The climbing frame, which is also called the lifting frame, can be divided into several types, such as hydraulic, electric, manual and so on. It is a new type of scaffolding system developed in recent years, which is mainly used in high-rise shear wall construction.

Q:The difference between the scaffold and the scaffold: The difference between climbing frame and scaffolding is commonly used scaffolding from below has been set up, which is followed by building up climbing frame, the figure is upstairs, they have in common is that we are like scaffolding

Q:The whole concrete wall climbing frame or good use of steel scaffolding: Floor scaffold:Advantage：1) large bearing capacity. When the scaffolding geometry and structure comply with the relevant requirements, under normal circumstances, the bearing capacity of 15kN ~ 35kN of the single column scaffold (1.5tf ~ 3.5tf, design value).Clamp and Tube Scaffold2) easy to install and disassemble, set up flexible. Because the length of the steel tube is easy to adjust and the fastener is convenient to connect, the utility model can be used for various buildings and structures with various planes and elevations.3, compared with the economy, the processing is simple, and the investment cost is low; if the geometric dimensions of the scaffold are carefully designed, and the utilization rate of the steel tube is improved, the material consumption can also obtain better economic effect. Fastener steel pipe frame equivalent to 15 square meters per square meter of construction steel.

Q:Advantages and disadvantages of climbing frame and floor type scaffold: 2) easy to install and disassemble, set up flexible. Because the length of the steel tube is easy to adjust and the fastener is convenient to connect, the utility model can be used for various buildings and structures with various planes and elevations.

Q:What are the maintenance and maintenance of hydraulic climbing formwork: Regular inspection of the climbing device should check the connections. In particular, the following parts of the site to focus on inspection and reinforcement: according to the design requirements of the bolt with spring washers

Q:Climbing frame is divided into several kinds, what is its running mode? What is the rental cost? Please explain in detail! Thank you very much: Install the lifting seat and a guide seat is connected with the high wall, main frame vertical rod, the frame set up to the designed height, laying the top scaffold, block feet - laying bottom safety nets and scaffolding, making turning plate - the upper part of the frame body structure and effective tie (tie spacing is not greater than 6m) - display efflux dense mesh safety net to the top of the shelf, the anti dropping boom is inserted into the base anti dropping device, the installation of steel rope - placed distribution cables, installation control cabinet, electric hoist, electric wiring and debugging system, pre inspection, electric hoist, demolition of frame body and the upper structure of pulling and synchronization a layer - installation completed, enter the upgrade cycle

We are an enterprise which is engaged in mechanical designing, processing, mold manufacturing and casting. Its customers are based on foreign investors, state-owned enterprises and medium-sized private companies. Because of the advanced technology, our products are involved in petroleum, metallurgy, mining, and textile, medical and other industries. The company makes a rapid rise in the machining area under the conduct of business philosophy “quality first, customer first” and the management principle “strengthen the management, continuous improvement”.

1. Manufacturer Overview
Location	Hebei, China
Year Established	1987
Annual Output Value	Below US$1 Million
Main Markets	China; United States; Britain; Japan; Germany; Israel
Company Certifications	GB/T19001-2008/ISO9001:2008 Quality Certification

2. Manufacturer Certificates
a) Certification Name
Range
Reference
Validity Period

3. Manufacturer Capability
a)Trade Capacity
Nearest Port	Xingang
Export Percentage	1% - 10%
No.of Employees in Trade Department	10-20 people
Language Spoken:	Chinese; English
b)Factory Information
Factory Size:	Above 3,000 square meters
No. of Production Lines	Above 10
Contract Manufacturing	Design Service Offered
Product Price Range	Average
