1.Chemical Composition of Middle Chromium Alloyed Grinding Ball with Best Quality Rwa Material for Refractory Factory and Cement Plant
Item | Chemical Composition(%) | |||||||||
C | Si | Mn | Cr | P | S | Mo | Cu | Ni | ||
13Cr | 2.0-3.0 | ≤0.10 | 0.5-1.5 | 10-14 | ≤0.10 | ≤0.10 | 1.0Max | 2Max | 0-1.5 | |
High chrome cast grinding balls | 17Cr | 2.0-3.0 | ≤0.10 | 0.5-1.5 | 14-17 | ≤0.10 | ≤0.10 | 3.0Max | 1 Max | 0-1.5 |
20Cr | 2.0-2.8 | ≤0.10 | 0.5-1.5 | 18-22 | ≤0.10 | ≤0.08 | 2.5 Max | 1 Max | 0-1.5 | |
26Cr | 2.0-2.8 | ≤0.10 | 0.5-1.5 | 22-28 | ≤0.10 | ≤0.08 | 3 .0Max | 2 Max | 0-1.5 | |
Item | Brand | C | Si | Mn | Cr | P | S | Mo | Cu | 0-1.5 |
Middle Chrome Cast Grinding Balls |
7Cr | 2.1-3.2 | 0.5-2.2 | 0.5-1.5 | 6~10 | ≤0.10 | ≤0.10 | 0-1.0 | 0-0.8 | 0-1.5 |
Item | Brand | C | Si | Mn | Cr | P | S | Mo | Cu | Ni |
Low Chrome Cast Grinding Balls |
2Cr | 2.2-3.6 | ≤1.2 | 0.5-1.5 | 1.0-3.0 | ≤0.10 | ≤0.10 | 0-1.0 | 0-0.8 | -- |
2.Applied Field of Middle Chromium Alloyed Grinding Ball with Best Quality Rwa Material for Refractory Factory and Cement Plant
1) Metal mining in mines,
2) power stations,3) Chemical engineering
3.Packing Information of Middle Chromium Alloyed Grinding Ball with Best Quality Rwa Material for Refractory Factory and Cement Plant
Steel drum (800-900kg per drum)
flexible container bag (1000kg per bag)

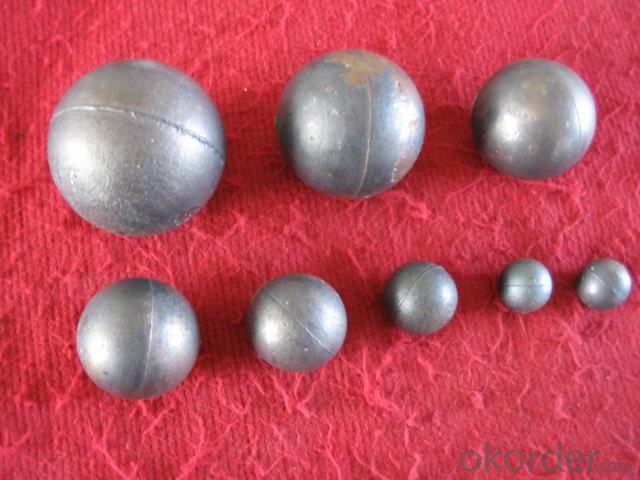

5. Photos of Middle Chromium Alloyed Grinding Ball with Best Quality Rwa Material for Refractory Factory and Cement Plant
- Q: Casting blank in the cooling process to release a large amount of heat energy, what can be recycled?
- Casting, do not need to provide a rough casting foundry drawings, according to your chart will put foot margin in the processing needs of the surface, the rest of the size can be found according to the mechanical design manual and manual casting.
- Q: How to calculate the price of casting parts?
- According to the complexity of the workpiece, material and casting requirements and process yield
- Q: What are the factors affecting the machining process of the casting material and structure?
- As for the metallographic structure, usually the finished products after casting are treated by heat treatment. The mechanical properties of the carbon steel after heat treatment (quenching and tempering) are detected. The stainless steels are treated by heat treatment (solid solution, etc.) and the metallographic structure is analyzedThere is a lot of talk and a bit of confusionIf you have a specific brand, you can search for Baidu or buy tools
- Q: How to improve the surface roughness of casting parts?
- One is to improve the accuracy of the model; the two is to improve the molding sand mesh. How much is the other relationship?.
- Q: What is normalizing, annealing, tempering, quenching? What is the difference between forging parts and casting parts?
- The aim is to make the grain fine and distribute the carbide evenly. The difference between normalizing and annealing is that normalizing cooling rate is slightly faster than annealing cooling rate, so normalizing structure is finer than annealing structure, and its mechanical properties are also improved. In addition, normalizing furnace cooling does not occupy equipment and has higher productivity. Therefore, normalizing may be used instead of annealing as much as possible. The main application areas of normalizing are as follows: for low carbon steel, after normalizing, the hardness is slightly higher than that of annealing, and the toughness is better. It can be used as the pretreatment of cutting. Used for medium carbon steel, instead of quenching and tempering, as the final heat treatment, or as an induction heating method before surface hardening. Used for tool steel, bearing steel, carburizing steel, etc., it can eliminate or restrain the formation of network carbide, so as to obtain the good organization of spheroidizing annealing. For cast steel, the microstructure can be refined and the machinability can be improved. Used for large forgings, which can be used as final heat treatment, so as to avoid larger cracking tendency during quenching.
- Q: Casting parts need to be subjected to the kind of heat treatment after the weldment is finished
- 1, gray cast iron: General graphite annealing, to be heat treatment annealing, surface hardening etc.; ductile iron can be various: annealing, normalizing, quenching and isothermal quenching, surface treatment, chemical heat treatment.2. Pouring liquid metal into the casting cavity which adapts to the shape of parts. After cooling and solidification, the casting method is called casting. Castings obtained by casting are called castings. Casting structure design: ensure the working performance and mechanical performance requirements, consider the technical requirements and performance of alloy casting casting casting structure, casting structure design is reasonable or not, the casting quality, productivity and cost has a great influence.3. Heat treatment is a metal hot working process in which the material is in solid state by means of heating, heat preservation and cooling to obtain desired microstructure and properties
- Q: How do casting parts remove stress?
- Annealing treatment, according to different casting annealing treatment, eliminate thermal stress, if need to restore hardness or increase hardness, and then quenching treatment
- Q: For example, casting parts contain many holes, inclusions and other defects, the size and the number of holes exceed which limit is not qualified
- For example, the castings shall be in accordance with the requirements of the second types of castings in the technical requirements for aluminum alloy castings of GB/T9438-1999;
- Q: Lathe processing stainless steel casting parts to use what type of tool, the speed into the amount of how much tool angle
- Processing stainless steel materials, you can use YG class tools, such as YG8, YG8N. The tool geometric parameters g0=15 degrees to 18 degrees, a0=6 degrees to 8 degrees, kr=75 degrees, ls=-5 degrees to -8 degrees; cutting amount is Vc=43 m/min, ap=0.3 to 0.5 mm, f=0.16mm/r.
- Q: Which master knows how the casting tolerances for malleable iron, gray iron and ductile iron should be chosen? Hurry up, thank youCan you provide a tolerance scale for castings, please?
- The tolerance of a specific size can be obtained from the tolerance grade and nominal size of the casting.
CDE is one of the largest factory specialized in producing Forged Grinding Balls and Cast Grinding Balls in China. Our annual production of grinding balls is about 100,000 ton. Our company has passed ISO9001: 2000 quality system authentication. We mainly export our grinding balls to Chile, Peru, Ghana, Argentina, Philippine, South-Africa, Italy, Japan, Korea, India, Australia etc more than 20 countries and areas.
1. Manufacturer Overview
| Location | Shandong, China |
| Year Established | 1971 |
| Annual Output Value | US$50 Million - US$100 Million |
| Main Markets | Domestic Market, Southeast Asia, South Asia, North America, South America |
| Company Certifications | ISO9001;IS014001 Certificate |
2. Manufacturer Certificates
| a) Certification Name | |
| Range | |
| Reference | |
| Validity Period |
3. Manufacturer Capability
| a) Trade Capacity | |
| Nearest Port | Qingdao Port |
| Export Percentage | |
| No.of Employees in Trade Department | 6-10 People |
| Language Spoken: | English, Chinese, Korean |
| b) Factory Information | |
| Factory Size: | Above 60,000 square meters |
| No. of Production Lines | Above 10 |
| Contract Manufacturing | Forged Grinding Ball,Cast Grinding Ball,Casting Cylpebs,Grinding Rods,Decorative Steel Ball |
| Product Price Range | Average |
