Graphite Electrodes for Water Electrolysis - Big Dia. Super Quality
- Ref Price:
-
$1,800.00
/ m.t.
- Loading Port:
- Tianjin
- Payment Terms:
- TT or LC
- Min Order Qty:
- 400 m.t.
- Supply Capability:
- 5000 m.t./month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
1. Specifications
.UHP Graphite Electrodes
.HP Graphite Electrodes
.RP Graphite Electrodes
2. Introduction of Graphite Electrodes
G-High Graphite Electrodes have the properties of superior electric conductivity and chemical stability, high mechanical strengt
G-High Graphite Electrodes are made from Petroleum Coke and Needle Coke, using Coal Tar Pitch as agglutinant, produced through the process of calcining, mixing, kneading, compressing, roasting, graphitization and machining, etc.
G-High Graphite Electrodes have the properties of superior electric conductivity and chemical stability, high mechanical strength, less impurity, seismic performance in high temperature. G-High Graphite Electrodes are mainly used for steel-making in electric furnaces, mineral hot furnaces and electric resistance furnaces.
Graphite Electrodes conduct electric current into the furnace. Electric current produces arc in the smelting district, when the temperature increases to about 2000°C, smelting begins. Our series of Graphite Electrodes are applicable to the common furnaces and high power furnaces with high voltage and short arc. G-High Graphite Electrodes are classified into three classes.
NP Graphite Electrodes: mainly used in common power electric ovens for smelting steel, smelting silicon and smelting yellow phosphorus;
HP Graphite Electrodes: mainly used in high power electric ovens for smelting steel;
UHP Graphite Electrodes: mainly used in ultra high power electric ovens for smelting steel.
Graphite electrode(please check form)
Graphite nipple
3. Details
Specification | Specific Resistance (μΩ.m) | Young's Modulus (Gpa) | Flexural Srength (Mpa) | Bulk Density (g/cm 3 ) | Ash Content (%) | Coefficient of thermal expansion ( 100-600 C)10 -6 1/C | ||||||
| (max) | (min) | (max) | ||||||||||
Electrode | Nipple | Electrode | Nipple | Electrode | Nipple | Electrode | Nipple | Electrode | Nipple | |||
Regular power | 200-350 | 8.5 | 7.5 | 9.3 | 13.7 | 9.8 | 15.0 | 1.55 | 1.72 | 0.3 | 2.9 | 2.8 |
| 400-500 | 8.5 | 7.5 | 9.3 | 13.7 | 6.4 | 15.0 | 1.53 | 1.72 | 2.9 | 2.8 | ||
| CTL Resistant Oxidation Electrode | 200-350 | 8.0 | 7.5 | 9.3 | 13.7 | 10.0 | 15.0 | 1.56 | 1.72 | 0.3 | 2.9 | 2.8 |
| 400-500 | 8.0 | 7.5 | 9.3 | 13.7 | 7.0 | 15.0 | 1.54 | 1.72 | 2.9 | 2.8 | ||
High Power | 200-500 | 6.5 | 5.5 | 12.0 | 16.0 | 12.0 | 18.0 | 1.63 | 1.74 | 0.2 | 2.4 | 2.2 |
Supper High Power | 250-500 | 6.0 | 4.8 | 14.0 | 18.0 | 13.0 | 19.0 | 1.65 | 1.75 | 0.2 | 2.0 | 1.7 |
Ultra High Power | 250-500 | 5.8 | 4.5 | 14.0 | 18.0 | 14.0 | 20.0 | 1.68 | 1.77 | 0.2 | 1.5 | 1.4 |

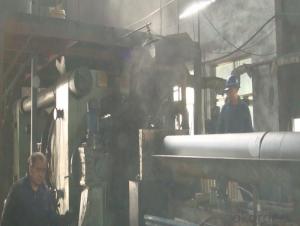

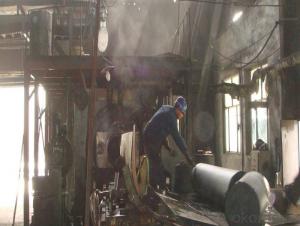

4.Pictures of Graphite Electrodes
5. FAQ
We have organized several common questions for our clients，may help you sincerely：
①How about your Warranty of Graphite Electrodes with big Dia.？
Warranty: 1-Year for the whole light. Warranty is based on correct storage, installation, using and maintenanc
②How to guarantee the quality of the products Graphite Electrodes with big Dia.？
We have established the international advanced quality management system，every link from raw material to final product we have strict quality test；We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. We have D&B report and you could check details information for our company.
③How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible.
- Q: Why use platinum ferroalloy instead of iron as electrode?
- General industrial grade silicon dioxide, because the preparation technology is different, can be divided into two types, one is dry, sintered (Fume Type), a wet precipitation type (Precipitated Type), and two of the surface area, the surface with hydroxyl (-OH) are the same, in general, the former the latter is more, less, the two surface has the tendency of hydrophilic, as for lipophilic polymer, such as paint, rubber... Etc.,... If the silica surface pre rendered hydrophobic, has a good effect.
- Q: Where is the graphite electrode scrap?
- Atoms, ions, and electrons collide with each other in strong oscillatory motion to produce more electrons and ions.
- Q: MITSUBISHI machine graphite electrode processing, how does not accumulate carbon?
- Carbon deposition can cause insufficient combustion of gasoline and cause engine chattering.
- Q: What is the application of wire cutting with graphite electrode?
- Greatly shorten the preparatory time of mechanical processing, and improve the level of automation of the whole process of machining, and also enhance the ability of the manufacturing system to adapt to changes in production conditions.
- Q: Electrolytic water solution, two electrodes are graphite electrode, the negative electrode can produce large amounts of hydrogen, the anode does not produce half of oxygen, and only a small amount of it?
- The oxygen will react with the graphite and the gas will dissolve.The iron has been oxidized.
- Q: Please senior doubts. The graphite electrode is used in the mold cavity In what case is graphite processing taken?
- Instead of copper as discharge material.1. Electrode design1 can reduce the number of individual electrodes / can be made into a composite electrode2, it can save the electrode clamp system and save the cost2, the electrode processing1, high speed milling rough processing copper block 3 times2, high-speed milling finishing faster than copper 5 times3. Good machinability4, complex geometric modeling can be realized3, light weight, its density is less than 1/4 of copper1, good thermal stability (without deformation)2 can reduce the number of individual electrodes / can be made into a composite electrode3, without deburring4. The electrode is easy to clamp4 、 electric discharge machining EDM1, roughing, the electrode loss is small2, high work removal rate3 can reduce the number of individual electrodes / can be made into a composite electrode4. No pollution to the environment in the electrolyte5, light weight, its density is less than 1/4 of copper6, excellent thermal stability, the electrode does not change7, the fine graphite electrode can be used to produce high quality workpiece surfaceDifferent grades of graphite materials can be used for processing different workpieces
- Q: Iron and graphite as electrodes and Nacl as electrolyte solutions. Why do they produce electric current? Graphite and iron react not with solution, can they be connected by wires?
- Graphite here acts only as an electrode, and the real reaction on the graphite is oxygen, the galvanic cell reaction called iron oxygen corrosion
- Q: What kinds of carbon are there?
- The carbon block can be divided into blast furnace carbon block, aluminum carbon block and electric furnace block. Carbon products can be divided into carbon products, graphite products, carbon fibers and graphite fibers according to the depth of processing. Carbon products can be divided into graphite products, carbon products, carbon fibers and special graphite products according to the raw materials and the production process. Carbon products according to their ash content, and can be divided into multi gray products and less ash products (including ash below l%).
- Q: Excuse me, why does the graphite electrode flake when electrolyzed salt water is used?
- For example, according to connection of the electrode, which can be divided into two types of unipolar and bipolar type electrolyzer (see photo). The electrode is connected with the DC power supply parallel polarity monopolar electrolyzer, electrodes on both sides of the same, at the same time as anode or cathode. At the same time as the positive and negative electrode bipolar type electrolyzer ends respectively with DC power supply connected, as anode or cathode. The current through the electrode through the electrolysis cell in series, each side of the intermediate electrode as the anode, the other side is the cathode, so it has a bipolar electrode. When the total area at the same time, the current bipolar type electrolyzer is small, high voltage DC power supply, the required investment ratio monopolar, bipolar type filter press used. The general structure, more compact. But easy to leakage and short circuit, slot structure and operation management is more complex than the monopolar type. The monopolar electrolyzer section is generally rectangular or square, cylindrical covers a large, empty The utilization rate is low and the adoption rate is less
- Q: What is the difference between SGL graphite electrode and graphite electrode in general?
- Can not say that the more detailed the better, is relative, must be uniform within the range (after all, it is very important to choose the aggregate), such as spectral pure graphite, is not due, he is a lot of technology to producing stains, then burning, and then producing stains, the strength is quite good,
