EPDM Waterproof Membrane for Roof Project

EPDM Waterproof Membrane for Roof Project

Ref Price:
$1.01 - 5.98 / m² get latest price
Loading Port:
Qingdao
Payment Terms:
TT or LC
Min Order Qty:
5000 m²
Supply Capability:
100000 m²/month

Add to My Favorites

Follow us:


OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

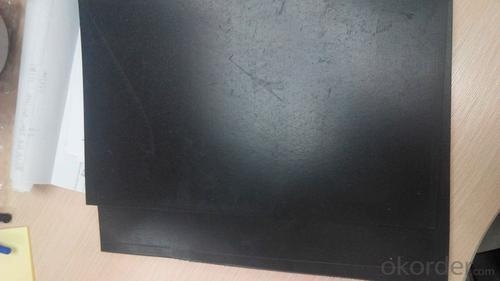

EPDM Waterproof Membrane



1. Description of EPDM Waterproof Membrane:

CMAX EPDM waterproof membrane is of high elasticity with best performance among high polymer waterproof material it’s made of ternary ethylene-pro-pylene rubber.

We owe the world-advanced equipment of cold feeding extrusion and continuous vulcanization technology. With the best performance among high polymer waterproof materials, EPDM is of exceptional elasticity and will not split or cracked under normal building movement.



2.    Specification of EPDM Waterproof Membrane:

Type

EPDM Rubber Waterproof Membrane

Type

Vulcanized and Weldable

Thickness

1.2mm

1.5mm

2.0mm

Weight(kg/m2)

1.54-1.58

1.79-1.83

2.25-2.29

Size

1.2m (width) * 20m (length)/roll.  Weldable type could be 4m wide.

Packing

24/roll, with plastic bag. (Weldable: 80/roll)

Usage

Roof, basement, pond, Lake, steel structure roofing, underground, tunnel, etc



3. Technical Data Sheet of EPDM Waterproof Membrane



  1. NO.

    Item

    Unit

    Technical requirement

    1

    Tolerance on size

    Thickness

    %

    ±10

    Width

    %

    ±1

    length

    %

    Does not allow negative

    2

    Fracture tensile strength (normal temperature )

    Mpa

    ≥7.5

    Fracture tensile strength(60 )

    Mpa

    ≥2.3

    3

    Breaking elongation,(normal temperature )

    %

    ≥450

    Breaking elongation,(-20 )

    %

    ≥200

    4

    Tearing resistance

    KN/m

    ≥25

    5

    Impermeability

    *

    0.3Mpa impermeable

    6

    Bending at low temperature

    °C

    ≤-40

    7

    Elongation and contraction volume at heating

    Elongation

    mm

    ≤2

    contraction

    mm

    ≤4

    8

    Hot air aging 80°CX168h

    Fracture strength retention

    %

    ≥80

    Rate of elongation at break

    %

    ≥70

    9

    Alkaline (saturated Ca(OH)2  solution normal

    Temperature x2  168h )

    Fracture strength retention

    %

    ≥80

    Rate of elongation at break

    %

    ≥80

    10

    Ozone aging (40 degree by 168 hours )

    Elongation 40% , 500x10-2

    *

    No Crack

    11

    Phytotron aging

    Fracture strength retention

    %

    ≥80

    Rate of elongation at break

    %

    ≥70



 4.     Property of EPDM Waterproof Membrane:

1)    Excellent anti-aging performance, service life up to 50years;

2)    High extension rate, high tensile strength, small size changes at heat treatment;

3)    Good plant roots penetrability resistance and can be made waterproofing layer of planting roof;

4)    Special modified molecular structure, effectively resolving the current domestic and foreign glue joint problem;

5)    Good low temperature flexibility, and good performance of adapting to ambient temperature changes;

6)    Convenient application, solid joint, no environment pollution;

7)    Chemical corrosion resistance, can be used for special occasions;

8)    Convenient maintenance, low costl

9)    Convenient for dealing with details;

10) Good anti-perforated.



Application of EPDM Waterproof Membrane:

1)     Roof, Basements, Tunnels

2)     Industrial and civil building waterproofing

3)     Geosynthetic liner for fish ponds, swimming pools, channels, irrigation system.

Especially suitable for projects with high requirement in durability, anti-corrosion and deformation





FAQ:



1. What are we supplying?

We are specialized in producing , geocell, geogrid, geomembrane, geotextile, waterproof membarne, etc.


2. How Many years experience do we have?
We have been exported to more than 15 countries in the past 13 years.



3. How long do we usually reply your request?

We always reply our customer within 8 hours.


Q: Can geomembranes be used in fishpond lining?
Yes, geomembranes can be used in fishpond lining. They are often used as liners in aquaculture systems to prevent leakage and contamination of water.
Q: Can geomembranes be used in mining tailings ponds?
Yes, geomembranes can be used in mining tailings ponds. Geomembranes are impermeable synthetic liners that are designed to prevent seepage and contamination of water or soil. In mining operations, where tailings ponds are used to store waste materials, geomembranes are commonly employed as a liner to prevent the seepage of potentially harmful substances into the surrounding environment. This helps to protect water sources and minimize the environmental impact of mining activities.
Q: Can geomembranes be used for decorative waterfalls and fountains?
Yes, geomembranes can be used for decorative waterfalls and fountains. They are commonly used in such applications to create a waterproof barrier and retain water in the desired area. Geomembranes provide durability and flexibility, making them suitable for designing and constructing aesthetically pleasing water features.
Q: Brief introduction of geomembrane
The geomembrane is a kind of waterproof barrier material, which takes the high-molecular polymer as the basic material. Mainly divided into: Low density polyethylene (LDPE) geomembrane, high density polyethylene (HDPE) geomembrane and EVA geomembrane. 1, complete in specifications of width and thickness. 2 has excellent resistance to environmental stress cracking and excellent resistance to chemical corrosion. 3, excellent resistance to chemical corrosion. 4 has a larger using temperature range and a longer service life. 5, used in the refuse landfill, tailings storage yard, channel seepage-proofing, dam seepage-proofing and subway projects, etc.. Physical mechanical properties of geomembrane Varieties index item LDPE geomembrane HDPE geomembrane EVA ordinary type environment friendly type tensile?strength (vertical and horizontal) (MPa) ≥14 ≥17 ≥25 ≥18 breaking elongation rate (vertical and horizontal) (%) ≥400 ≥400 ≥550 right angle tear strength vertical and horizontal) (N/mm) ≥50 ≥80 ≥110 ≥90 water vapor penetration coefficiency (g.cm/cm.s.pa) ) ≤1.0x10-16 ≤1.0x10-16 ≤1.0x10-16 ≤1.0x10-16 using temperature range +70℃~-70℃ +70℃~-70℃ +70℃~-70℃ +70℃~-70℃ environmental stress cracking resistance (F20.H) - - ≥1500 - 200℃ oxidation induction time (min) ) - - ≥20 -
Q: How do geomembranes contribute to the prevention of groundwater contamination?
Geomembranes contribute to the prevention of groundwater contamination by acting as a barrier between potentially hazardous substances, such as chemicals or waste, and the underlying soil and groundwater. They are impermeable liners that are installed in various applications, such as landfills, mining sites, or industrial facilities, to prevent the migration of pollutants into the groundwater. By effectively sealing off the contaminated areas, geomembranes help protect the quality and purity of groundwater, thereby safeguarding human health and the environment.
Q: What are the disadvantages of using geomembranes?
Some potential disadvantages of using geomembranes include their high initial cost, vulnerability to punctures or tears, potential for degradation over time, limited flexibility in certain applications, and the need for proper installation and maintenance to ensure effectiveness. Additionally, improper disposal of used or damaged geomembranes can pose environmental risks.
Q: What is the use of the floor decoration film?
The decorative film is a kind of packaging film. The whole process of finish includes many steps. The lack of the product protection in foregoing steps will bring unnecessary troubles and losses to subsequent steps steps and final using. So packaging film is required. The entray of all kinds of finishing materials and the clear-out of a variety of construction waste will pass through the entrance doors. During the removal of these items, the possibility of occurance of collision and friction will greatly increase. So the first place needed good product protection is our entrance doors.
Q: How to deal with the waterproof membrane on balcony?
1, Cleaning the base; 2, Leveling the base with cement mortar 3, brushing one layer of JS waterproof paint and paving one layer of non-woven fabric immediately. Then brushing a layer of JS waterproof paint again (it should be noted that walls should be flanged up for 300mm); 4, After the waterproof layer is totally dried, you can do the watyer conserving test for 24 hours; 5, After draining the water, you can lay the floor tile on it (it is better to leave the seams with the width of 5mm and brush structural adhesive in it).
Q: What are the functions of reflective membranes?
Application of reflective membranes in other fields: 1.car stickers 2. equipment and safety signs 3. road signs, plant indicator systems, house numbers 4. advertising and industry identification 5. public signs 6. other more applications
Q: What is the typical width of a geomembrane roll?
The typical width of a geomembrane roll can vary depending on the specific application and manufacturer, but common widths range from 4 to 30 feet.
