1.Chemical Composition of Alloyed Steel Grinding Ball with Low Prease and Top Quality made in China
Based on material, the forged steel balls are defined into 4 brands. And The chemical composition is shown in the following:
Brand | C | Si | Cr | Mn | S | P | Mo | Al | Microstructure |
CMAX-1A | 0.37-0.55 | 0.17-0.47 | 0.80-1.2 | 0.50-1.0 | ≤0.035 | ≤0.035 | micro | micro | M+C |
CMAX-2A | 0.7-1.00 | ≤0.025 | 0.4-0.8 | 0.7-1.0 | ≤0.025 | ≤0.025 | micro | micro | M+C |
CMAX-3A | 0.45-0.65 | 1.5-1.8 | 0.77-1.0 | 0.7-0.8 | ≤0.006 | ≤0.025 | micro | micro | M+C |
CMAX-45 | 0.40-0.55 | 0.71-0.47 | ≤0.25 | 0.50-0.85 | ≤0.025 | ≤0.025 | micro | micro | M+C |
CMAX-65 | 0.55-0.70 | 0.17-0.47 | ≤0.25 | 0.80-1.25 | ≤0.035 | ≤0.035 | micro | micro | M+C |
2. Specification of Forged Steel Grinding Ball Made in China apply for Power Plant, Mineral Processing and Cement Plant
Nominal Diameter | Diameter Tolerance | Weight of Single Ball | Numbers of Per Ton |
(mm) | (mm) | (g) | 32150 |
20 | +2 -1 | 32 | 15625 |
25 | 64 | 9090 | |
30 | 110 | 5645 | |
40 | 263 | 3802 | |
50 | 513 | 1949 | |
60 | +3 -2 | 888 | 1126 |
70 | 1410 | 709 | |
80 | 2104 | 485 | |
90 | 2996 | 333 | |
100 | 4110 | 243 | |
110 | +4 -2 | 5457 | 182 |
120 | 7102 | 140 | |
130 | 9030 | 110 | |
140 | 11279 | 88 | |
150 | 13871 | 72 |
4.Applied Field of Alloyed Steel Grinding Ball with Low Prease and Top Quality made in China
1) Metal mining in mines,2) power stations,3) Chemical engineering
5.Packing Information of Alloyed Steel Grinding Ball with Low Prease and Top Quality made in China
Steel drum (800-900kg per drum)
flexible container bag (1000kg per bag)

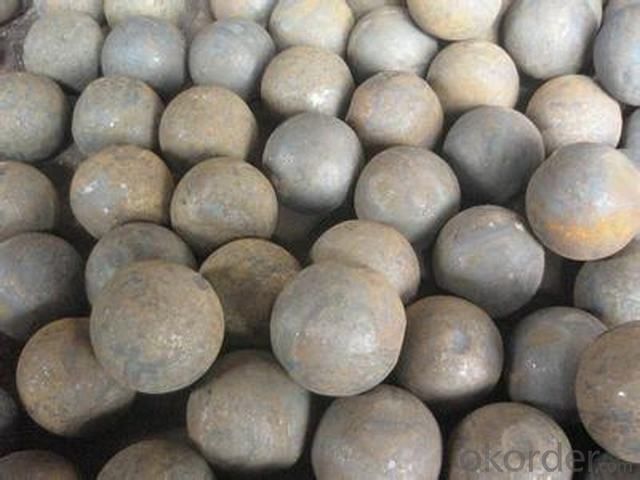

6. Photos of Alloyed Steel Grinding Ball with Low Prease and Top Quality made in China
- Q: What is normalizing, annealing, tempering, quenching? What is the difference between forging parts and casting parts?
- The aim is to make the grain fine and distribute the carbide evenly. The difference between normalizing and annealing is that normalizing cooling rate is slightly faster than annealing cooling rate, so normalizing structure is finer than annealing structure, and its mechanical properties are also improved. In addition, normalizing furnace cooling does not occupy equipment and has higher productivity. Therefore, normalizing may be used instead of annealing as much as possible. The main application areas of normalizing are as follows: for low carbon steel, after normalizing, the hardness is slightly higher than that of annealing, and the toughness is better. It can be used as the pretreatment of cutting. Used for medium carbon steel, instead of quenching and tempering, as the final heat treatment, or as an induction heating method before surface hardening. Used for tool steel, bearing steel, carburizing steel, etc., it can eliminate or restrain the formation of network carbide, so as to obtain the good organization of spheroidizing annealing. For cast steel, the microstructure can be refined and the machinability can be improved. Used for large forgings, which can be used as final heat treatment, so as to avoid larger cracking tendency during quenching.
- Q: How do casting parts remove stress?
- Annealing treatment, according to different casting annealing treatment, eliminate thermal stress, if need to restore hardness or increase hardness, and then quenching treatment
- Q: What are the casting parts processing engineering?
- Among them, special casting has metal mould casting, pressure casting, low pressure casting, lost wax casting (also known as precision casting), shell casting, lost foam casting, centrifugal casting, continuous casting, V casting, and clay casting
- Q: Casting parts have poor surface finish. What sand is used to make them?
- Manual coal dust, clay sand is a little worse. Mechanical styling is not bad either.
- Q: What should I pay attention to when designing a casting structure?
- The basic structure of unit 3 in the design of metal casting casting and its parameters are selected, usually should also pay attention to: (1) because of the metal type heat quickly, so the metal type casting minimum wall thickness should be bigger than the sand casting casting casting; (2) the inner wall of the internal ribs and the thickness of a should be connected the outer wall thickness of 0.6 to 0.7, or as the inner wall (rib) cold slowly, cracks in the wall at the junction in the casting shrinkage; (3) to prevent generating white grey cast iron, in addition to taking measures in the process, must make the wall thickness is not too thin (some information that cast fillet at the corner of the wall thickness of 15mm or more, with metal casting casting must be in the corner, for Aluminum Alloy, metal casting magnesium alloy castings shall not be less than 3 ~ 4m; (4) because of the metal type and the core that, for To facilitate the extraction of castings and casting out type, slope casting should be suitably large than sand casting metal casting, the general should be 30% ~ 50%, it should be pointed out that in addition to the height of the slope of casting size and alloy type, wall, is also related to the casting surface position, where the cooling and contraction of the metal type the surface of casting surface can be designed from the tendency of small inclination, while casting shrinkage tend to be pressed on the surface of metal casting type should be given greater inclination.
- Q: Younger brother is to do casting valve, precision casting parts, the valve internal sand serious, but the appearance is very standard, this is why, for God answers, thank you!
- If is casting, internal shell mold may be not completely dry, strength is not enough, resulting in shell mold collapse into molten steel.It is also possible that the refractory is not refractory enough.
- Q: In the design of casting steps and precautions, for casting design, we have what experience?.
- (3) to prevent generating white grey cast iron, in addition to taking measures from the process, must make the wall thickness is not too thin (some sources indicate that the corner wall thickness above 15mm, metal type casting must be in the corner, for Aluminum Alloy, magnesium alloy casting casting casting Create fillet should not be less than 3-4m, for casting round cast iron, copper alloy mould casting can see table 1.1-32 selection; (5) because of the metal and the core without let, for the convenience of the casting is taken out and the draw out type, slope casting casting should be suitably large than sand casting metal casting. General 30%-50%, it should be pointed out that in addition to the height of the slope of casting size and alloy type, wall, is also related to the casting surface position, where the cooling and contraction and metal surface of casting surface can be designed from the tendency of small inclination, while casting shrinkage tend to be pressed on the surface of metal castings the type should be given greater inclination, all kinds of metal type alloy casting casting casting.
- Q: Is 316 casting better than 304 casting?
- It is comprehensive. There is no simple comparison of the material to determine the degree of difficulty in processing
- Q: How to solve casting defect casting?
- Prevention methodReduce the gas in the metal liquid and oxidize the slag, improve the fluidity of the metal liquidIncrease pouring temperature and pouring speed, strengthen slag collection, slag block or bottom pouring bag, teapot ladle pouring, can not cut off when pouring, prevent the slag from blocking the nozzle, and cause the casting to breakIncrease the sprue and sprue height, increase the runner section area and the sprue number, and improve the filling speed and the metal hydrostatic headImprove the casting design and increase the thickness of the thin-wall part of the castingChange the pouring position and pouring system, the casting thin wall plane is located at the top and away from the gate, to prevent the filling of liquid metal splashing, eddy current, avoid metal stream in the casting thin sections or core support, cold iron, insert the confluence, when necessary, take horizontal vertical pouring cold or inclined castingIncrease the permeability of core and sand, strengthen the exhaust of mould, and the quantity of air outlet and riser should be enoughChange the size and location of the core, the inner cold iron, the core support, the internal cold iron, the insert should be no rust, no oil pollutionCheck the type, tight box, press the operation of iron is safe, to prevent running fire
- Q: ZGMn13 casting parts processing, with what knife head good?
- its surface wear resistance is high; the two is with the gradual wear of surface hardening, the hardening layer is continuously formed new if you have suggestions, processing, plasma cutting or flame cutting try
CMD is one of the largest manufacturers and professional exporters of forged grinding balls and cast grinding balls in China, with an annual output of 50,000 tons. Now, there are 180 employees in our company, with an area of 20,000 square meters. Our products are mainly exported to more than 20 countries in the world, such as Africa, South America, Asia, and Australia.
1. Manufacturer Overview
| Location | Shandong, China |
| Year Established | 1983 |
| Annual Output Value | Above US$100 Million |
| Main Markets | South Asia, South Asia, Central America, Western Europe, Eastern Asia, Mid East, Oceania, Africa |
| Company Certifications | ISO9001;IS014001 Certificate |
2. Manufacturer Certificates
| a) Certification Name | |
| Range | |
| Reference | |
| Validity Period |
3. Manufacturer Capability
| a) Trade Capacity | |
| Nearest Port | Qingdao Port |
| Export Percentage | |
| No.of Employees in Trade Department | 3-5 People |
| Language Spoken: | English；Chinese；Japanese；Korean |
| b) Factory Information | |
| Factory Size: | Above 20,000 square meters |
| No. of Production Lines | 8 |
| Contract Manufacturing | Grinding steel balls;Grinding steel cylpebs;Grinding media;Grinding meida ball |
| Product Price Range | Average |
