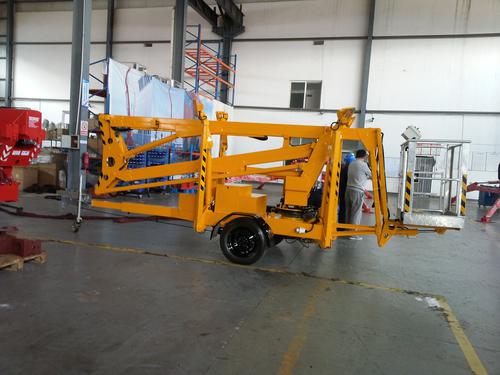

15M Trailer mounted platforms

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT OR LC

Min Order Qty:: -

Supply Capability:: -

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

18M Crawler Mounted Platforms

spider lift 15m

Mini Mobile scissor platform

Vehicle-mounted scissor platform

Six masts aerial working platform（lower-storage）

Retractable Single mast aerial working platform

Aerial work platform--EAWP16SA

Single Mast Aerial Work Platform--AMWP6/AMWP7.5

Model	P15
Max.working height	15m
Max.platform height	13m
Loading capacity	200kgs
Lateral Outreach	6.8m
Platform rotation	–
Jib rotation	100°
Turntable rotation	355°
Size of platform	0.9×0.8×1.1m
Overall stowed length	5.6m
Overall stowed width	1.62m
Overall stowed height	2.3m
Length outrigger footprint standard
Width outrigger footprint standard
Total weight	1800KGS
Traveling speed	35km/h
Power capacity
1. standard power source	Diesel engine
2. optional power sources	1.Electric 220V AC power
2. optional power sources	2.Battery

Specifications
►Industry leading working envelope
►Articulating boom
►Multiple job site application,indoors and outdoors
►high and low operation panel
►Hydraulic outriggers and outrigger interlocks
►Hydraulic surge brakes
►350°non-continuous turntable rotation
►All pipelines put inside the machine, to aviod tangled sun and rain or other objects
►Made of high strength steel,famous china brand
►Protective covers for oil-tank, emergency controls and etc.
►Easy handling

Q: How to choose the platform and how to use the method: Integrated the information investigation by you, choose a good cost performance lifting machinery, from its choice on the practicality and generality and technical parameters, usually there are many kinds of lifting machinery, lifting platform including (rail, vehicular, fixed, mobile, etc.) each of the technical parameters and usage are slightly different, but there are many features have a similar place, therefore, as a customer you want with a purpose of choose and buy, what are you going to do buy lifting mechanical, and what kind of elevator mechanical energy to meet your needs and purposes.

Q: How does hydraulic platform change sealing ring, how to operate: Flange join type, should remove flange join screw first, use the screw to remove the end of the cover, can not lever or hammer, lest damage; Inside the card key type connection, should use a special tool, the guide sleeve toward the push, reveal the card key and hydraulic plunger pump used to () after remove the card key items with nylon or rubber texture the card key fill out again after its; Thread connection type oil cylinder, should screw the screw down first; In the demolition of the piston rod and the piston, not hard to pull out of the cylinder, piston rod components should try to keep the components of the piston rod and cylinder axis slowly pulled in a line.

Q: What can be done when the hydraulic platform is down?: Your reason is simple: the oil always goes to the small oil tank, causing the load to be light first, and the cylinder is out of sync. The solution in the economy is to buy a synchronous shunt valve for the oil supply of two cylinders. In the transfer valve A or B, one is solved

Q: The characteristics of hydraulic platform: Light weight, good maneuverability, suitable for individual operation. The special mast strap-step device, which is smoothly and smoothly; 3, compact structure, small size of transportation, can enter the car of general elevator and pass through the door and narrow passageway. Double protected leg structure, work safer, and can be close to the working face lift.

Q: The ball of the universal milling and lifting platform rolls off, how to install,: Screw has a variety of forms, one of the most common is to use return and return two catheters, if not nut screw the screw will not drop the ball, if there is no turn the screw nut and fell out of the ball, that is to return or return pipe is broken, have to put on reload. Let me be specific. If there is no damage, then use the lithium base grease to keep the ball rolling in separate loops, and then turn the nut back in the way of the regular nut. The key is to start at the beginning, but once the ball comes out, it's going to come back again. Try it twice. (note the non-circular path (snails) don't let the ball drop!)

Q: How much is the construction elevator equipment: Imobile elevator optional configuration of hydraulic power, convenience and the surrounding the lap joint of frame, roller rolling or motor, prevent pinches safe touch, organ type safety guards, moving or motor rotary worktable, hydraulic flip table, to prevent falling elevator safety support bar, stainless steel security guard network, power system of electric or hydraulic elevator walking, mesa of ball. 2, vehicular elevator vehicular elevator is to enhance the maneuverability of elevator, the elevator on the battery truck or truck, it pick up the car engine power, achieve the function of vehicular lifter lifting. To adapt to the high-altitude work in and out of the factory area. It is widely used in hotels, buildings, airports, stations, stadiums, workshops, warehouses, etc. It can also serve as a temporary overhead lighting, advertising and so on. 3 hydraulic elevator, hydraulic elevator is widely used in automotive, container, mold manufacturing, wood processing, chemical industry and other kinds of industrial enterprises and filling production line, meet the demand of the rise and fall of various working height, at the same time can be equipped with all kinds of mesa form (e.g., ball, roller, wheel, steering, tilting, scale), with all kinds of control mode (points, linkage, explosion-proof), are characterized by their smooth lifting characteristics of accurate, frequent start, large capacity, effectively solve all kinds of lifting operation difficulties in industrial enterprises, make the production operation.

Q: The home is decorated, make a tatami mat the platform should pay attention to what aspect?: The advantage of pure electric type is that it can be easily and easily accessible by electric or remote control. When the drawback is power failure, the tatami mat can't be used. Manual electric integration tatami lifting table, set the advantages of the above two kinds of control mode, and avoid their disadvantages, so it is a mainstream product. Optimization!

Q: The hydraulic platform can't rise. Why?: The hydraulic platform and the control line are relatively simple, the hydraulic pump running at the point of rise will drive the oil hydraulic drive plunger up. Turn on the solenoid valve when the point is lowered. Be described in the hydraulic pump caused by dirt Chen Ji which reduces the pump fluid efficiency, hydraulic pump will be removed to clean the pump tablet, does not rule out the filtrate may be network jam.

Q: The purpose of the rail elevator: Cannot reach the requirements of the occasion, such as difficult to solve in the narrow space, can make the efficient delivery platform, product set for hydraulic system, the door on the interactive chain, floors and lifting platform work table can set operation buttons, achieve multipoint control.

Q: What is the difference between elevator and elevator platform and high-altitude platform: The elevator will use the motor to reverse the deceleration and pull the cable to lift the basket. The platform, like the high-altitude operating platform, USES hydraulic oil to pressurize or unload the platform. High altitude (pinyin: gao kong zuo ye) refers to the work performed at a certain location on a high level. National standard GB 3608-2008 "high job grading" regulation: "where in the fall for more than 2 m height datum (2 m) to operate the heights of the likely to fall, are called high homework." According to this rule, the scope of the construction industry is quite extensive. When working in a building, operate on a shelf above 2m.
