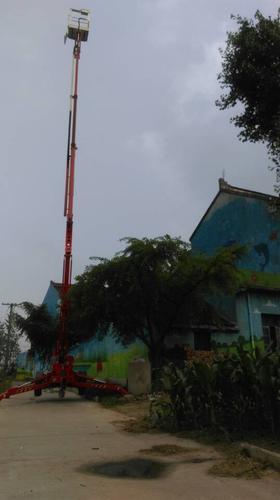

18M Trailer mounted platforms

Inquire Now

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

Model	PTS180
Max.working height	18M
Max.platform height	16M
Loading capacity	200kgs
Lateral Outreach	7M
Platform rotation	–
Jib rotation	100°
Turntable rotation	350°
Size of platform	0.9×0.8×1.1M
Overall stowed length	5.95M
Overall stowed width	1.62M
Overall stowed height	2.4M
Length outrigger footprint standard
Width outrigger footprint standard
Total weight	1950KGS
Traveling speed	35km/h
Power capacity
1. standard power source	Diesel engine
2. optional power sources	1.Electric 220V AC power
2. optional power sources	2.Battery

Specifications
►Industry leading working envelope
►Articulating boom
►Multiple job site application,indoors and outdoors
►high and low operation panel
►Hydraulic outriggers and outrigger interlocks
►Hydraulic surge brakes
►350°non-continuous turntable rotation
►All pipelines put inside the machine, to aviod tangled sun and rain or other objects
►Made of high strength steel,famous china brand
►Protective covers for oil-tank, emergency controls and etc.
►Easy handling
