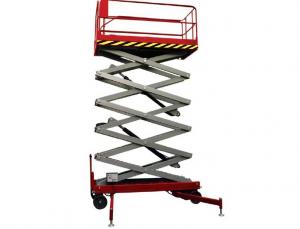

Manual Scissor Lift
- Ref Price:
-
- Loading Port:
- China Main Port
- Payment Terms:
- TT or L/C
- Min Order Qty:
- 4 Sets m.t.
- Supply Capability:
- 30 Sets Per Month m.t./month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Details of Manual Scissor Lift:
It is a type of platform that can usually only move vertically. The mechanism to achieve this is the use of linked, folding supports in a
criss-cross "X" pattern, known as a pantograph (or scissor mechanism). The upward motion is achieved by the application of pressure
to the outside of the lowest set of supports, elongating the crossing pattern, and propelling the work platform vertically. The platform
may also have an extending "bridge" to allow closer access to the work area, because of the inherent limits of vertical-only movement.
Features of Manual Scissor Lift:
It improves working efficiency and reduces man-power and labor intensity greatly. It is especially good for long time work at airport terminals, stations, docks, shopping market, stadiums and work shops.
The scissor lift is applied in the logistics industry, it can used in the wild or the environment without power supply. Auxiliary drive makes the equipment easily and can be moved and operated just by one person that reduce the labor costs greatly.
SPECIFICATION OF SCISSOR LIFT:
Scissor Lift Max. platform height(m): 6.2 /8.2/ 10
Scissor Lift Max working height(m): 8 /10/ 11.8
Scissor Lift Iverakk dumensions(m): 2.1*0.9*2.2 /2.1*1.1*2.4 / 2.6*1.3*2.4
Scissor Lift Plarform dimension(m): 2.1*0.9*2.2 /2.1*0.9*2.4 /2.6*1.2*2.4
Scissor Lift Platforn extension(m): 0.6 /0.6 /0.8
Lifing capacity(kg): 250/ 250/ 250
Extension capacity(kg): 100/100/100
Traving speed(km/h):3.6/2.88/3.24
Traving sspeed(km/h)0.7/0.7/0.7
Gradeability(%) 10.5 /10.5/ 10.5
Scissor Lift Machine weight(kg):1500/1820/2200
Scissor Lift Ground clearance(mm):60
Scissor Lift Battery4~6V-245AH
Scissor Lift Controls: Electrical
- Q: There are several reasons for the hydraulic cylinder oil leak on the elevator
- Internal leakage 1) wear-resisting ring on the piston is badly worn, causing friction between the piston and the cylinder liner, and finally pulling the casing, piston and seal. Sealing long term failure, piston seal (mostly U, V, Y ring, etc.) aging; 3) the hydraulic oil is dirty, and a large amount of impurities enter the cylinder to seal the piston seal to the bad.
- Q: Where do the elevator motors go?
- Abstract: the shear fork type electric elevator is a special equipment for high altitude operation. The it scissor mechanical structure, make the lifting platform lifting Has high stability, wide operating platform and high bearing capacity, make the work high above the range is bigger, and is suitable for many people work at the same time. It makes high-altitude work more efficient and safer. It is a special equipment for high-altitude operation. Characteristics: the lifting mechanism adopts high strength manganese steel. There is a safety protection device that prevents the elevator from overloading. Safety valve shall be set up to prevent rupture of hydraulic pipe. An emergency reduction device with a power failure. The product is suitable for high-altitude equipment installation, maintenance, etc. According to different requirements can choose different dynamic form (such as: three-phase ac power supply, single-phase ac power supply, dc power and diesel power, etc.), and with manual hydraulic equipment, can be in a power outage or lifting work as usual, no power supply and can add adjustable platform, can extend to the desired location on the length of the platform, so as to improve the work efficiency. It is the ideal of modern high building and equipment, which is necessary for the production of high-altitude safe civilization.
- Q: Does the shear fork lift stand belong to special equipment?
- In the light of the special equipment safety supervision regulations, hoisting machinery definition: refers to used for vertical lifting or vertical and horizontal moving heavy mechanical and electrical equipment, its range is rated lifting weight greater than or equal to 0.5 t lift.
- Q: Description of fixed hydraulic elevator
- Fixed hydraulic elevator products can be divided into cut and fork, double shear, guide rail, cylinder type and wall hanging type etc. Design is novel, dual ladder anti-rotating structure, double speed drop system, the largest rise in 35 meters, stable and reliable, beautiful, simple operation is the biggest characteristic of fixed hydraulic lift cylinder type. Double ladder anti-revolution structure ensures the safety and stability of the work. Also, considering the actual environment of the scene, the oil cylinder can be dumped and handled to ensure the maximum scope of the machine operation.
- Q: What is the hydraulic platform driven
- Choose an electric motor or internal combustion engine based on load and situation
- Q: What is the size of the hydraulic elevator platform for 2T
- If use the size of the demand is larger, can use fixed double span hydraulic lift, double straddle steady lifting, large carrying capacity, easy operation, widely used in vehicle maintenance, kilns, chemical plant, equipment and other industries use.
- Q: How to use the ball screw platform?
- The search is also practical for the platform overhaul. Hope is useful to you.I hope my answer will help you.
- Q: The home is decorated, make a tatami mat the platform should pay attention to what aspect?
- The second is to notice whether the product has a secure clamping system. Most of the products on the market are mechanical clamping system, which is low in safety, and the system is too resistant to it. Best choice is the electronic control system, because it will through the electronic system induction to the resistance changes, more than a certain value will stall, electric and automatic recovery (electronic resistance setting values are very sensitive, high security), such as task of children. The third is, of course, the manufacturer and the brand, the good manufacturer and the brand make the product more reliable, which is not to be said in detail.
- Q: There are several categories of mobile elevators
- Traction: product representatives have two wheeled and four-wheel traction. Adopts an external power do drawing, can use to do traction trailer or diesel hydraulic lifting power, mobile and can do the series elevator with mobile and flexible, steady lifting, large capacity, convenient operation etc., are widely used in factories, grain depot, airports, gas stations, organs, wharf, wild power, street lamp maintenance and architectural decoration and other industries. Self-execution: product stands for self-propelled elevator. Its main feature is the use of personnel can need not the lifting platform, can control the mechanical lifting and moving to the other place of work, itself has the function of walking and to drive, don't need to Traction, flexible mobile without external power supply, make the work high above the more convenient and quick, is the ideal of modern enterprise efficient safety production aerial work equipment. Auxiliary self-traveling hydraulic lift, with functions of automatic walking, able to work in different condition, without external power supply, without external power traction, mobile and flexible, easy to operate, lift freely, only one person can complete forward, backward, steering, fast, slow to walk and up and down movement, save work and effort. Especially suitable for the railway stations, docks, airports, power plants, stadiums, large enterprises such as large range of aerial work in domestic at present is the most ideal aerial work equipment.
- Q: What happens when the platform comes up and the power goes out.
- In pump station oil outlet on the right side with a nut, the nut off, is within the six-party of the screw, counterclockwise, the platform can fall, fall after what must tighten screw clockwise, the back nut, so that next time can normal use
