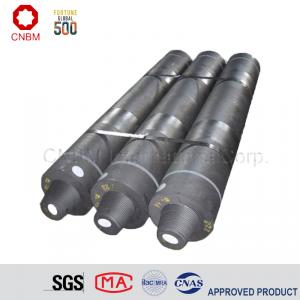

Graphite Electrodes Regular Power - Top Quality RP HP UHP Graphite Electrode with Nipple for EAF LF Steel Making
- Ref Price:
-
- Loading Port:
- Tianjin
- Payment Terms:
- TT or LC
- Min Order Qty:
- 23 m.t.
- Supply Capability:
- 60000 m.t./month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Company Profile
CNBM INTERNATIONAL CORPORATION
Build your world with our materials.
We are a primary subsidiary of China National Building Material Group Co., Ltd.
CNBM Group is a central government-owned enterprise and a Fortune Global 500 company (Ranking 203th in 2019). It is the largest building material manufacturer and service provider in the world, with 15 publicly-listed companies and over 180,000 employees (2019). We have more than 300 factory plants in China. For the refractory, we are top 3 in China. We have more than 17 plants in different cities.
Graphite Electrode
Graphite electrode is made from the domestic first class petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steels, metal and other nonmetallic materials, etc. The Graphite electrodes include: regular power, high power, ultra high power and square electrode. The range of diameters covers from 200mm to 800mm. Our products own the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy.
CNBM and its partner have 4 production bases and the annual production capacity of graphite electrodes is 60,000 MT.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Technical Specifaication:
| Item | Unit | RP | HP | UHP | ||||
| 250-400 | 450-800 | 300-400 | 450-700 | 300-400 | 450-700 | |||
| Electric Resistivity | Electrode | μΩ.m | 7.5-8.6 | 7.5-8.8 | 5.5-6.8 | 5.5-7.0 | 4.6-6.0 | 4.8-6.2 |
| Nipple | 4.5-5.5 | 4.0-5.0 | 3.5-4.5 | |||||
| Bending Strength | Electrode | Mpa | ≥8.0 | ≥11.0 | ≥11.0 | |||
| Nipple | ≥15.0 | ≥16.0 | ≥18.0 | |||||
| Elastic Modulus | Electrode | Gpa | ≤9.0 | ≤11.0 | ≤13.0 | |||
| Nipple | ≤13.0 | ≤14.0 | ≤15.0 | |||||
| Bulk Density | Electrode | g/cm3 | 1.55-1.65 | 1.63-1.73 | 1.65-1.75 | |||
| Nipple | 1.70-1.75 | 1.73-1.80 | 1.75-1.82 | |||||
| Ash | Electrode | % | ≤0.3 | |||||
| Nipple | ||||||||
| CTE(100-600)ºC | Electrode | 10-6/ºC | 2.00-2.50 | 1.80-2.00 | 1.30-1.50 | |||
| Nipple | 1.50-1.80 | 1.50-1.80 | 1.20-1.40 | |||||
Current Carrying Capacity
| Nomina diameter | RP | HP | UHP | ||||
| Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
| in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
| 12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
| 14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
| 16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
| 18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
| 20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
| 22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
| 24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
| 28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
| 32 | 800 | 43000-54000 | 8-10 | / | / | / | / |
FAQ
Q:Are you a trading company or manufacturer?
A:CNBM is a large-scale central governmental industrial group with its own manufacturing sector, research and development sector, trading sector and logistics sector.
Q:I have some special requirement about specifications.
A:We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q:Do you accept OEM service?
A:Yes, we do.
Q:What is your delivery time?
A:It depends on the size/complexity of your order and our own production schedule. Usually we provide a faster delivery than the industry's average.
Q:What is the payment term?
A:Our payment terms are negotiable.
Q:Can I have my own logo on the product?
A:Sure, we can apply your own logo on the products according to your requirement.
- Q: Why use platinum ferroalloy instead of iron as electrode?
- Its surface properties must comply with the characteristics of the additives so that they can be dispersed evenly.
- Q: Why graphite can be used as conductive material?
- Lubricants can not be used in high speed, high temperature, high pressure conditions, and graphite wear-resistant materials can be at the temperature and at a high sliding speed, without lubricating oil work. Many transporting corrosive media devices are widely used, which is made of graphite material piston ring, the sealing ring and the bearing, they are running, without adding lubricating oil, graphite and many metal processing when good lubricant.
- Q: Graphite electrode specifications, graphite electrode manufacturers which good?
- Graphite electrode has good electrical and chemical stability. It has high mechanical strength, low impurity content and good vibration resistance at high temperature. It is a good conductor of heat and electricity. Qingdao Chenyang graphite graphite electrode quality is good, they are a direct manufacturer of graphite electrode. Hope to be of some help to you.
- Q: Synthesis techniques of carbon nanotubes
- Carbon nanotube discharge using graphite electrode is one of the earliest studies in various synthetic techniques. The researchers did a lot of work in optimizing arc discharge for carbon nanotubes. In recent years, in addition to people by adjusting the current and voltage, pressure and velocity change, change the electrode composition, improved electrode feeding mode optimization of arc discharge process, but also through changes the arc medium, simplified arc device. In the process of preparing carbon nanotubes, arc method is mature by changing the arc discharge conditions, catalyst, electrode size, feed mode, the distance between the poles and the raw materials. The carbon nanotubes formed by arc method are straight and wall (multi wall or even single wall). But the production rate is low, the arc discharge process is difficult to control, and the preparation cost is too high. The industrial scale production needs to be explored.
- Q: Why should graphite paper be placed between the heater and the graphite electrode?
- Heater design, the common heater has three shapes, cylinder, cup, spiral, the vast majority of the current heater is cylindrical, as shown in figure. The spiral heater has complicated processing technology and has been eliminated. Cup shaped heater for hemispherical crucible, the bottom melt temperature is more uniform, because the processing technology is difficult, already no use. Nowadays, most of them use cylinder heaters. The cylindrical heater is not only easy to process, but also is related to the large number of flat crucible used in the direct drawing single crystal furnace.
- Q: Please senior doubts. The graphite electrode is used in the mold cavity In what case is graphite processing taken?
- Instead of copper as discharge material.1. Electrode design1 can reduce the number of individual electrodes / can be made into a composite electrode2, it can save the electrode clamp system and save the cost2, the electrode processing1, high speed milling rough processing copper block 3 times2, high-speed milling finishing faster than copper 5 times3. Good machinability4, complex geometric modeling can be realized3, light weight, its density is less than 1/4 of copper1, good thermal stability (without deformation)2 can reduce the number of individual electrodes / can be made into a composite electrode3, without deburring4. The electrode is easy to clamp4 、 electric discharge machining EDM1, roughing, the electrode loss is small2, high work removal rate3 can reduce the number of individual electrodes / can be made into a composite electrode4. No pollution to the environment in the electrolyte5, light weight, its density is less than 1/4 of copper6, excellent thermal stability, the electrode does not change7, the fine graphite electrode can be used to produce high quality workpiece surfaceDifferent grades of graphite materials can be used for processing different workpieces
- Q: Graphite graphite graphite graphite electrode what is the use?
- Natural graphite electrode is the main raw material with graphite, high purity flake graphite powder or high carbon flake graphite powder as raw material, because carbon or graphite powder purity is high, the effect of conductive graphite powder is better in smelting alloy steel, iron alloy, electrode graphite powder as raw material. The electrode produced, then the strong current through the melting zone, the arc electrode into the electric furnace, the electrical energy into heat, the temperature rises to 2000 degrees Celsius, so as to achieve the purpose of melting or reaction.
- Q: Do electroplating experiments, graphite as an electrode, graphite how to pre process to ensure that the coating will not fall, resulting in increased color of the solution
- Use a tight filter cloth as an anode pack
- Q: Electrolysis of CuCl2 solutions with graphite electrodes
- CuCl2 refers to a copper chloride ionization ionization ion and chloride ion in aqueous solution, the equivalent of CuCl2 does not exist, but there are only Cu2+ and Cl-, even if there is no electricity, the ionization will happen, because this is the nature of it.
- Q: Excuse me, why does the graphite electrode flake when electrolyzed salt water is used?
- Device for electrolytic reaction. The electrolysis bath comprises a tank, an anode and a cathode, the majority of diaphragm separates the anode chamber and a cathode chamber. According to the different electrolyte aqueous solution electrolysis, molten salt electrolytic cell and nonaqueous solution electrolysis. When three kinds of direct current through the electrolytic cell, the anode oxidation the reaction solution and at the interface in the cathode and the electrolyte interface reaction, to produce the required products. To optimize the design of electrolytic cell structure, reasonable selection of electrode and diaphragm material is the key to improve the current efficiency, decrease cell voltage and energy saving.
