Resin - Orthophthalic Unsaturated Polyester for FRP Products

Resin - Orthophthalic Unsaturated Polyester for FRP Products

Ref Price:
get latest price
Loading Port:
Shanghai
Payment Terms:
TT or LC
Min Order Qty:
2000 m.t.
Supply Capability:
10,000吨 m.t./month

Add to My Favorites

Follow us:


OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Product description of unsaturated polyester resins

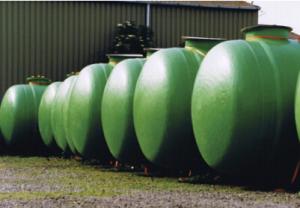

UPR196 is a common unsaturated polyester resin with medium viscosity and high reactivity,applicable to the manufacture of common steel glass products, cooling columns, containers of dilute acid etc.

Excellent appliication properties,short application time,good fiber wet,higher fiber content,very competitive prices,wide range application,good color resin



Specification of UPR

1.Orthophthalic
2.General pupose resin
3.Good impregnation to glass fiber and mechanical property

Technical Indexes of Liquid Resin

Item

Unit

Value

Standard

Appearance

Transparent Sticky Thick Liquid

Visual

Acid Value

mgKOH/g

16-22

GB2895-82

Viscosity(25°C)

mPa.S

380-620

GB7193.1-87

Gel Time

min

5-9

GB7193.6-87

Non-Volatile

%

62-68

GB7193.3-87

Thermal Stabilityility

h

≥24

GB7193 .5-87



Images







Features



Performance Indexes of Resin Casting Substance

ItemItem

Unit

Value

Standard

Barcol hardness  ≥

Barcol

38

GB3854-1983

Tensile strength  ≥

MPa

60

GB2568-1995

Tensile modulus ≥

MPa

3000

GB2568-1995

Elongation at break≥

%

3.0

GB2568-1995

Flexural strength ≥

MPa

88

GB2570-1995

Flexural modulus≥

MPa

3100

GB2570-1995

Impact strength ≥

KJ/m2

8.5

GB2571-1995

H.D.T ≥

°C

73

GB1634-1989

Note: Environmental Temperature for Experiment: 23±2°C; relative humidity: 50±5%

FAQ:

1. Why Choose us?

CNBM is a stated own company, provide the guarantee for the best quality, best service and safety business.

2. How will we guarantee the quality?

a, ISO 9001-2008 quality control system;

b, Strict and regular quality control in production;

c, Inspeciation when loading into container before shippment;

d, Sample stock for one year for quality tracing and record.

3. What is your MOQ?

Our MOQ is one pallet.
