China professional single girder gantry crane manufacturer
- Ref Price:
-
- Loading Port:
- Shanghai
- Payment Terms:
- TT OR LC
- Min Order Qty:
- 1 unit
- Supply Capability:
- 30 unit/month
OKorder Service Pledge
Quality Product, Order Online Tracking, Timely Delivery
OKorder Financial Service
Credit Rating, Credit Services, Credit Purchasing
You Might Also Like

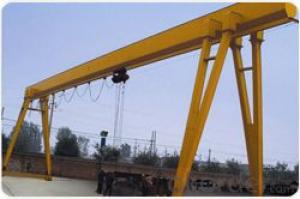

Single girder gantry crane is consisting of the skeleton structure, electric hoist, long travelling mechanism, cabin or hand control, and electrical control system. The electric hoist can move horizontally on the rail fitted under a girder. The girder can be welded structure of box.
Cabin or hand controller used for operating. The cabin has seats inside. Floor adopts insulation pads and toughened glass for windows; extinguisher and fan are equipped. Other accessory equipment like air-condition, buzzer, interphone and etc can be configured according to our client’s request!
The length of cantilevers can be designed to meet the working demands.
Application
This type is widely used in work yard, warehouse, cargo storage areas and shops to raise working efficiency and improving working conditions.
Features:
Overload protection,
Main lifting motor with thermal protection,
Hooks with latch,
Rubber buffers
Protective earthing,
Crane switch and travel end switch,
Technical Data:
lifting weight | t | 3~20 | |||||
Span | m | 12~30 | |||||
lifting height | m | 6/9 | |||||
working parts | travelling | Ground | m/min | 20 | |||
controlling room | 20/30/45 | ||||||
Motor | Ground |
| YSE802-4/0.8*2 | YSE90L-4/1.5*2 | |||
controlling room |
| ZDR100-4/1.5*2 | ZDR112L1-4/2.1*2 | ||||
Reducer |
| LD | |||||
wheel diameter | mm | Φ270 | |||||
electric hoist | type No |
| CD1 MD1 | ||||
lifting speed | m/min | 8 0.8/8 | |||||
travelling speed | 20 | ||||||
Motor | Lifting |
| ZD41-4/4.5 ZDS10.4/4.5 | ||||
Travelling |
| ZDY12-4/0.4 | |||||
working class |
| A3 | |||||
steel track recommended |
| P24 P38 | |||||
Power |
| 380v 50Hz | |||||
the crane weight | Ground | Kg | 6646/8646 | 7630/9430 | 10163/12163 | 11931/13931 | |
controlling room | Kg | 6996/8996 | 7780/9780 | 10513/12513 | 12281/14281 | ||
Max. wheel pressure | KN | 37/42 | 40/46 | 44/50 | 48/54 | ||
