PTZ, DOME Camera-100M7A670

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT or L/C

Min Order Qty:: 100pcs pc

Supply Capability:: 1000pcs per month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Packaging & Delivery

Packaging Detail:	Neutral color box
Delivery Detail:	7-10 days after getting payment money

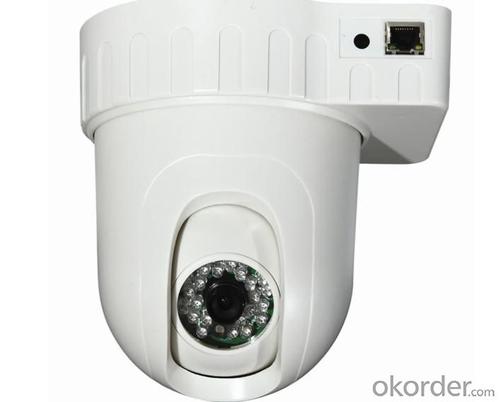

Specification of PTZ,DOME camera

* PWM function, Adopt multi-angle super power Infrared LED, the brightness of image uniform and soft.

* Adopt LED ARRAY Infrared light source, IR distances can reach 150 M.

* IR distance 70M; English/Chinese OSD menu;

* Dome ID, baud rate, communication protocol can be set via the controller;

* Supported Protocols : Pelco-D/P; Others on special request;

* 7",Total metal body construction, waterproof IP 66;

* Optional , 4 Alarm inputs and 2 alarm outputs.

*Optional IP module (built in provision);


Signal System	PAL /NTSC
Focus Model	Auto / Semiautomatic / Manual
Communication	RS-485
RS-485 Protocols	PELCO_D , PELCO_P
Baud Rate	2400 bps/4800 bps/9600 bps
Supporting All-in-one Module	Sony, Hitachi, SAMSUNG, CNB,LG, China brand etc.
Cruise Tours	5 groups
Preset Points	Max. 256 Points
Pan/Tilt Speed	12°/s
Pan Range	0º~360º
Tilt Range	0° ~ 90º
Auto Flip	Horizontal 180°,Vertical 90°
A-B Scan Speed	5~180°/s (15-64 grade available)
IR Control	Auto / Manual
Menu Language	English/Chinese
Peak Emission Wavelength	850
Leds	48pcs
Monitor Output	1.0V[p-p] / 75Ω, PAL、NTSC, BNC
Address	0-255
Security	Password protection: configured by the administrator
Privacy Zones (Masking)	Support
Heater In Operation	Auto
Alarm Input	4 inputs
Alarm Output	2 outputs
Power-off Memory	Support
Park Action	Line scan
Protection Level	IP66+
Working Temperature	-25℃ ～+60℃
Power Supply	DC12V4A
Power Consumption	≤45W (PTZ cradle head input power:10W; IR ON input power:35W)
Material	Aluminum alloy
Package	30.530.539CM
Net Weight	6.5KG
Humidity	≤95%(no condensation)
Mount Option	Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount

Q: Night to monitor the infrared light is not bright because it is not open monitoring?: 2: the camera where the environment is too bright, surrounded by incandescent or other light source, the camera will not enter the night mode, it will not open the infrared light

Q: What is the 960h in the surveillance camera?: 960H is a set of quasi-HD solutions defined and developed by Techwell and Sony, which incorporates Sony's new generation of 960H CCD Sensor and Effio solutions, and the DVR side uses Techwell's latest TW9960 analog quasi-HD A / D solution. 960H resolution of 960 * 576, relative to the traditional D1 (720 * 576) overall picture clarity (details) increased by 30%. For the original analog monitoring system to upgrade the upgrade, only the front-end camera and back-end storage replaced by 960H products, transmission part can continue to follow the original system coaxial cable, the system architecture and the original analog system basically unchanged, Engineering and users without the need for professional skills training can be the original D1 system upgrade to 960H quasi-HD, the overall increase in the screen 30% at the same time will not change the user's habits, suitable for limited budget but want to experience " User.

Q: Camera clarity, 1080p. 3mp. 4k, what does it mean: 4K, that is, 3840 × 2160 pixel resolution

Q: 20 meters away with the number of mm monitor camera lens appropriate?: According to the imaging principle, the smaller the focal length, the wider the field of view, but the distance is not clear. The larger the focal length, the narrower the field of view, but the longer the distance will be clearer.

Q: What is the difference between monitoring the camera and the usual?: 3. Camera effect: monitoring with the camera, generally require high clarity, because the current computer camera commonly used sensor chip is Micron or modern photographic chip, these two kinds of chip camera, clarity are similar, if the use of 5 glass Lens, then the requirements are less stringent occasions are generally able to meet the basic requirements, and 30 frames per second speed is basically able to meet the monitoring needs. If you need better clarity, you can use the physical dynamic 1.3 million camera (not online nonsense 1.3 million, need to emphasize that the sensor chip and interface chip support physical dynamic 1.3 million camera, can really be considered 1.3 million ), This camera is generally better imaging results than the use of magnesium light and modern sensor chip camera, can get better than the average physical 350,000 camera effect, but the bandwidth occupied and CPU occupancy rate is very high. So easy to monitor the camera system easy to use.

Q: Zhongwei HD monitoring system IP address is not how to do: Click on the problem of the screen, right - remote management - network management, the IP address can be changed to other IP (such as 192.168.1.172, etc.), change the device management interface, a key to set IP, so there will be no IP conflict Causing the camera can not use the problem.

Q: What do I need to do with video surveillance systems?: Video surveillance system developed a short period of twenty years, from the 19's 80's analog monitoring to hot digital monitoring and then to the Internet video surveillance, has undergone enormous changes. In the IP technology gradually unified global Today, we need to re-understand the history of video surveillance system development. From the technical point of view, the development of video surveillance system is divided into the first generation of analog video surveillance system (CCTV), to the second generation based on "PC + multimedia card" digital video surveillance system (DVR), to the third generation based on IP network video surveillance System (IPVS).

Q: Outdoor surveillance camera what brand good ah: According to the use of the camera environment, can be divided into: outdoor night vision infrared ball, outdoor intelligent high-speed ball, outdoor night vision wide dynamic, backlight compensation, automatic white balance, and so the search function bolt, hemisphere and so on.

Q: 3.6mm and 6mm surveillance camera can see the screen angle is how much: 3.6MM angle is generally about 87 degrees 6MM angle is 60 degrees. The scope of the monitoring is not the same, a clear distance is not the same, 3.6MM lens is generally the best clear distance of 7-8 m 6MM lens the best clear distance of 15 meters 3.6mm: 90 ° about 6mm: 60 ° 8mm: 45 ° about 12mm: 35 ° or so

Q: Will the surveillance camera brand which?: Low-end camera - the series of cameras are mostly domestic brands, more well-known Viewse (Wei as), YHDO (Yonghui), SUNSPRO (as the new treasure) and FOSUE (Fu as) and so on.
