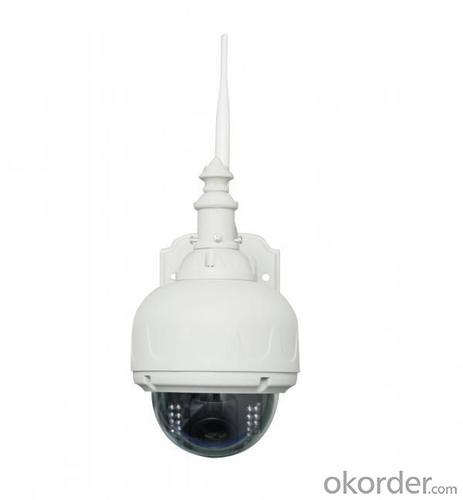

Indoor Camera-100H7BZ

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT or L/C

Min Order Qty:: 100pcs pc

Supply Capability:: 1000pcs per month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Packaging & Delivery

Packaging Detail:	Neutral color box
Delivery Detail:	7-10 days after getting payment money

Specification Of Indoor Camera

* PWM function,intelligent IR illumination & power consumption is variable,dependant the zoom factor

* IR distance 150M; English/Chinese OSD menu;

* 12 pcs of the third generation dot-matrix high-power IR leds, the infrared leds with the integrative module synchronous linkage.

* In the two sides of IR led with infra-red segregation board;Lens won't reflect light.

* Dome ID, baud rate, communication protocol can be set via the controller;

* Supported Protocols : Pelco-D/P; Others on special request;

* 7",Total metal body construction, waterproof IP 66;

* Optional IP module (built in provision);

* Optional , 4 Alarm inputs and 2 alarm outputs.


Signal System	PAL /NTSC
Focus Model	Auto / Semiautomatic / Manual
Communication	RS-485
RS-485 Protocols	PELCO_D , PELCO_P, 3D Locate etc.
Baud Rate	1200 bps /2400 bps/4800 bps/9600 bps
Supporting All-in-one Module	Sony, Hitachi, SAMSUNG, CNB,LG, China brand etc.
Cruise Tours	3 groups
Cruise Points Qty Per	Max.16 points, dwell time user selectable
Pan Speed	1°～180°/s（1～64Step Speeds）
Preset Speed	180°/S
Preset Points	220 Points
Preset Accuracy	±0.01º
Pan Range	360º
Tilt Range	(-)5° ~ 90º
Auto Flip	Horizontal 180°,Vertical 90°
A-B Scan Speed	5~180°/s (15-64 grade available)
IR Control	Auto / Manual
Menu Language	English/Chinese
Peak Emission Wavelength	850
Leds	Ø20(12pcs)
Monitor Output	1.0V[p-p] / 75Ω, PAL、NTSC, BNC
Address	0-255
Security	Password protection: configured by the administrator
Privacy Zones (Masking)	Support (Sony Module support 24 zones)
Heater In Operation	Auto
Alarm Input	4 inputs
Alarm Output	2 outputs
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan
Protection Level	IP66+
Working Temperature	indoor：（0ºC～+40ºC） outdoor：（-40℃～+60℃）
Power Supply	AC/DC15-28V ≤3A (standard power: AC24V3A)
Power Consumption	≤20W
Material	Aluminum alloy
Package	30.53240CM
Net Weight	6.5KG
Humidity	≤95%(no condensation)
Mount Option	Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount

Indoor Camera-100H7BZ

Q: 960P HD network camera stored one day more G?: To see the set of the stream to 2M of the stream to count, 2M * 60 * 60 * 24 ÷ 8 = 21600M = 21.6G

Q: Monitor how the camera is connected: 3. How to use the network cable to monitor the camera to save costs. Twisted pair transmitter generally refers to the use of cable to transmit video equipment, twisted pair transmission using differential transmission principle, the video signal will be converted into the same amplitude, the opposite polarity of the video signal, through the twisted pair transmission, The two ends of the opposite side of the video signal subtraction into a normal video signal, it can effectively suppress common mode interference, even in strong interference environment, its anti-jamming capability is better than coaxial cable, and through the Video signal processing, the transmission of the image signal than the coaxial cable is clear, the same network cable will not interfere with each other.

Q: 3 megapixel surveillance cameras store much day: 3 million pixel surveillance camera video bit rate is generally set to 4Mbps, video files 24 hours a day about 42G.

Q: Network monitoring camera how to make external network access?: Second, to use the network to monitor the camera's P2P function, in the camera where the computer log on to the camera manufacturers authorized transfer site, account application and verification, equipment to add; then you can log in the Internet where the site input account And password, view the video has been added to the device.

Q: What is the camera's shooting range? How much is the diameter?: Can you say what the next camera, mobile phone, computer, monitor, or what?

Q: Monitor how the camera looks online: Your network must be telecommunications Oh! You video host connected to the network! Router to buy TPL to bring peanut shell! You enter your router on your computer and then forward the rules to upload your video host where the LP address! And your videotape port! Then go to dynamic DMMS where apply for peanut shells free! Apply for a good login! Login success will appear in the lower left corner of the LP and then you on the page HTPP: / / plus you get the LP: plus the port on it! Guangzhou An harmonic Electronic Technology Co., Ltd

Q: Monitoring camera POE power supply is good, or centralized power supply good?: The use of transformer front-end power take advantage, do not have to consider the line loss, because there are transformers can reduce the loss of lightning to the lowest (of course, lightning B is not guaranteed, are force majeure; unless there is a special contract), after-sales fault detection, Check the problem is out of the camera or power problems, with the lights of the transformer is a glance!

Q: 3.6mm and 6mm surveillance camera can see the screen angle is how much: This depends on how much the face of the CCD friends, 1/3 is 71 degrees 1/4 is more than 51 degrees

Q: HD camera is said that his clarity, infrared camera is that it's night vision function, in order to highlight the main features of the name of a: 1, the camera generally talked about the camera, it is natural to think of home cameras. In fact, surveillance cameras and home cameras are many different, first of all fundamentally design standards are different, one for industrial applications and design, one for home use and design, so they work in a long time, the use of the environment The volume is small, the monitoring machine with small size, and the home machine because all the control parts and tape all installed in the same chassis, so the volume to be much larger, and must be on-site manual control, can not achieve remote remote control ; In the key resolution, the home machine is generally about 300 lines in the horizontal, and monitoring machine for the blackboard on the blackboard, the horizontal resolution should be more than 400 lines. The JY-803 integrated color camera, 480TV line center resolution, 1Lux low illumination, with automatic white balance, backlight compensation and automatic electronic shutter adjustment function, built-in 22x optical lens.

Q: Hai Kangwei depending on the surveillance camera how to achieve continuous automatic capture, such as a second catch a?: Hai Kang hard disk video recorders to add network cameras: 1, first installed the network camera, connected through the network cable to the switch, the network camera connection is not the need for each network cable must be unified in a switch (such as: need in the distance Install a camera
