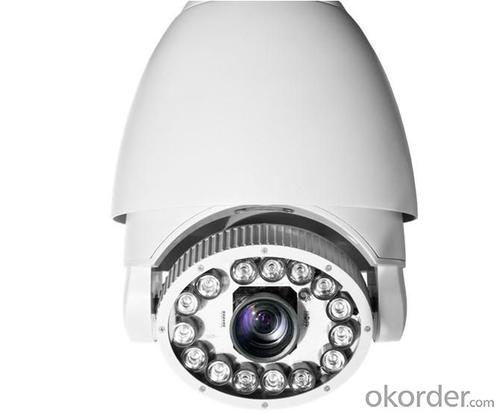

DOME CAMERA,PTZ-100H7CV

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT or L/C

Min Order Qty:: 100pcs pc

Supply Capability:: 1000pcs per month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Packaging & Delivery

Packaging Detail:	Neutral color box
Delivery Detail:	7-10 days after getting payment money

Specification of DOME CAMERA,PTZ

* PWM function, Adopt import global initiative focused synchronization send light system, low power consumption;

* Low heat（Dome temperature is maintained at 50 degrees below）;

* IR distance 200M; English/Chinese OSD menu;

* Constant current circuit design;wide voltage input. DC16—DC24V

* IR illumination angle variable from 5 degree to 60 degree;

* Dome ID, baud rate, communication protocol can be set via the controller;

* Supported Protocols : Pelco-D/P; Others on special request;

* 7",Total metal body construction, waterproof IP 66;

* Optional IP module (built in provision);

* Optional , 4 Alarm inputs and 2 alarm outputs.


Signal System	PAL /NTSC
Focus Model	Auto / Semiautomatic / Manual
Communication	RS-485
RS-485 Protocols	PELCO_D , PELCO_P,VICON SAMSUNG
Baud Rate	2400 bps/4800 bps/9600 bps
Supporting Module Protocol	Sony, Hitachi, CNB, LG automatic identification
Cruise Tours	4 groups
Cruise Points Qty Per	Max.27 points, dwell time user selectable
Infinitely variable speeds	0.08-280°/sec,360° level continuous rotation , 180° vertical automatic flip
Thermostatic setting	Support internally installed temperature sensors
Preset Speed	180°/S
Preset Points	220
Preset Accuracy	±0.01º
Pan Range	360º
Tilt Range	(-)5° ~ 90º
Auto Flip	Horizontal 360°,Vertical 180°
Display area	8 areas in the screen, it can show the edited title and support automatic scanning
Pattern scan	4 PATTERN model lines (pattern scan), recording time is not less than 180 seconds each line.
Auto scan	4 auto scanning lines
Timing Start	Support the function of time start-up preset position / Pattern scan /cruise scanning/level scanning/random scan
IR Control	Auto / Manual
Menu Language	English/Chinese
Peak Emission Wavelength	850
Leds	Third Generation infrared LED-1piece
Monitor Output	1.0V[p-p] / 75Ω, PAL、NTSC, BNC
Address	0-255
Security	Password protection: configured by the administrator
Privacy Zones (Masking)	Support 8 Zones
Heater In Operation	Auto
Alarm Input	4 inputs
Alarm Output	2 outputs
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan
Protection Level	IP66+
Working Temperature	indoor：（0ºC～+40ºC） outdoor：（-40℃～+60℃）
Power Supply	DC16V or AC16-24 ≤3A (standard power: AC24V3A)
Power Consumption	15~35W（ IR LED Open: 15W IR LED Close: 35W）
Material	Aluminum alloy
Package	30.53240CM
Net Weight	6.5KG
Humidity	≤95%(no condensation)
Mount Option	Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount

DOME CAMERA,PTZ-100H7CV

Q: Buy monitor camera attention to what: Due to the manufacturers in the DSP and related technology between the level of differences, so the product is also different, so the parameters are marked with the gap, and some marked 500 lines, and some standard 520 lines, there are marked 530 lines, the highest marked 540 lines, Even 600 lines. So a variety of line number classification, in fact, shows the differences between the various, of course, which also mixed with a small amount of domestic enterprises to 480 lines fake 500 lines above the product composition. In fact, even in the same 540 line products, because the manufacturers of production technology differences and DSP technology differences, the same line of products with different results. But with the naked eye to distinguish is more difficult to compare out, unless the professional testing equipment or image magnification to distinguish, or find one or two real high-end brand camera to contrast. But in essence, 520 lines or more are called high-definition cameras, but analog cameras in the existing DSP and manufacturing technology based on a limit upgrade, it will be the traditional 480 line HD standard to 520 lines Or 540 lines.

Q: I installed a monitoring camera admin user password forgotten! How do you handle: Terry: username admin password empty

Q: Monitor the camera's focal length how to choose?: Third, because the lens focal length and horizontal perspective is inversely proportional, so both want to see far, want to see wide and clear, it can not be achieved at the same time. Each focal length of the lens can only be in a certain range to achieve the best monitoring effect, so if the monitoring of the distance and a larger range, it is best to increase the number of cameras, or the use of electric zoom lens with PTZ installation , Of course, this for the civilian use, some expensive, and practical will not increase greatly.

Q: What is the difference between monitoring the camera and the usual?: 3. Camera effect: monitoring with the camera, generally require high clarity, because the current computer camera commonly used sensor chip is Micron or modern photographic chip, these two kinds of chip camera, clarity are similar, if the use of 5 glass Lens, then the requirements are less stringent occasions are generally able to meet the basic requirements, and 30 frames per second speed is basically able to meet the monitoring needs. If you need better clarity, you can use the physical dynamic 1.3 million camera (not online nonsense 1.3 million, need to emphasize that the sensor chip and interface chip support physical dynamic 1.3 million camera, can really be considered 1.3 million ), This camera is generally better imaging results than the use of magnesium light and modern sensor chip camera, can get better than the average physical 350,000 camera effect, but the bandwidth occupied and CPU occupancy rate is very high. So easy to monitor the camera system easy to use.

Q: What does it mean to monitor the camera channel?: Channel refers to the physical location of the video input of the camera on the monitoring matrix or the DVR device. Such as: ordinary hard disk video recorders support 16 video signals, so that the back of the hard disk video recorder has 16 video input interface, the channel refers to the physical location of these video interfaces, generally from left to right sort.

Q: 3.6mm and 6mm surveillance camera can see the screen angle is how much: 3.6MM angle is generally about 87 degrees 6MM angle is 60 degrees. The scope of the monitoring is not the same, a clear distance is not the same, 3.6MM lens is generally the best clear distance of 7-8 m 6MM lens the best clear distance of 15 meters 3.6mm: 90 ° about 6mm: 60 ° 8mm: 45 ° about 12mm: 35 ° or so

Q: What kind of surveillance camera points: Infrared integrated camera, integrated camera, infrared hemisphere, ordinary hemisphere, explosion-proof hemisphere, constant speed ball, medium speed ball, high speed ball, network camera, gun camera (low light, wide dynamic, color to black) And so on

Q: How to use the network cable to connect the surveillance camera?: Short distance directly with the network cable can be, I remember as if 40 ~ 70 should be no problem (my longest used 20 to 30 meters). If you can buy twisted pair transmitter, then each pair of cameras need a pair of distance greater than 300 meters with active, active recommended front-end ground. If you use a network camera or a normal camera + digital module (this name is not allowed) direct crystal head + switch.

Q: Hai Kang camera how remote monitoring: 1. If the device is connected to the public network through the router, you need to enable the UPnP function of the router and configure the UPnP parameter of the device or make port mapping on the router.

Q: Does the infrared surveillance camera automatically alarm when someone enters the monitoring range?: General camera is not the end of the low-end camera does not have this function, you can use the alarm to linkage, the alarm through the infrared detection of some people come in, will alarm. There is an automatic monitoring area of the camera can be, once someone appears in a certain area will be the alarm, similar to the road to shoot the kind of red light. Very sensitive, but the cost is relatively high. The best infrared camera can find 300 meters of people, but it is expensive.
