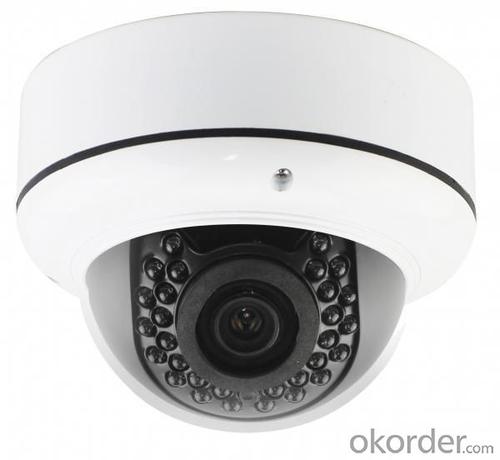

1/3 Sony CCD Vandalproof IR Dome Camera

1/3 Sony CCD Vandalproof IR Dome Camera

Ref Price:
$39.00 / pc get latest price
Loading Port:
China Main Port
Payment Terms:
TT or L/C
Min Order Qty:
100 pc
Supply Capability:
10000pcs per month pc/month

Add to My Favorites

Follow us:


OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Packaging & Delivery

Packaging Detail:Neutral color box
Delivery Detail:7-10 days after getting payment money



Description of 1/3 Sony CCD Vandalproof IR Dome Camera

Model CMAX-342A-IR45CMAX-348A-IR45CCMAX-354A-IR45CMAX-365A-IR45
Image sensor 1/3 SONY CCD
PixelPAL500(H)* 582(V)720(H)* 540(V)752(H)* 582(V)976(H) x 582(V)
NTSC510(H)* 492(V)768(H)*492(V)768(H)* 596(V)976(H)x 494(V)
Resolution420TVL480TVL540TVL650TVL
OSD menu NOYES
Video output1.0VP—P/75Ω
White balanceauto
Gain controlauto
Backlight compesationauto
Electronic shutter1/50(1/60)~1/120,000s
Gamma  correction 0.45
Sync  systeminternal
S/N radio >=48dB >=52dB
IR led48pcs Φ5 powerful imported IR leds
view distance 45m
Minimun  Illumination 0LUX(IR ON)
Operation lens  6mm or 8mm
Supplied voltageDC 12V,1000mA
Working temperature-10~60 ℃

1/3 Sony CCD Vandalproof IR Dome Camera

1/3 Sony CCD Vandalproof IR Dome Camera

Q:Does the infrared surveillance camera automatically alarm when someone enters the monitoring range?
The camera itself does not work, through the acquisition card, or hard disk video recorder, you can detect the mobile body will alarm,
Q:What is the difference between a dome camera, a gun camera and a dome camera in security monitoring?
Mainly the use of the difference, the dome camera is generally used for indoor ceiling place, because it is relatively small, so more beautiful. Gun camera is generally installed in the channel, plant or parking area and other areas. The advantage is that you can install long focal length lens to expand the scope of monitoring, the disadvantage is more obvious.
Q:Monitor the difference between the camera 720p and 1200 lines
Simply from the literal point of view, 1200 lines look better than 720P, but the actual effect, the 1200 line of the camera is through digital-analog conversion, and the effect of CMOS lens application in the simulation system, matching the problem (popular say acclimatized) , So the image of the 1200 line is much worse than the 720P image.
Q:What kind of surveillance camera points
Infrared integrated camera, integrated camera, infrared hemisphere, ordinary hemisphere, explosion-proof hemisphere, constant speed ball, medium speed ball, high speed ball, network camera, gun camera (low light, wide dynamic, color to black) And so on
Q:Yourself at home with a computer monitor how to install. Need to set up those. And installation steps
2. Monitor the camera to install the work, in accordance with the camera lens model and specifications, carefully fitted with the lens (infrared camera does not need to install the lens), be careful not to touch the lens CCD (marked part of the figure), confirm the fixed firmly , Turn on the power, connect the host or on-site use of monitors, small TV and so adjust the aperture focal length.
Q:Monitor the camera if the power supply to him a large current, pay attention to the current is not the voltage, the voltage is 12V, then what will happen to the camera?
The current is very rare to see this situation, but the current is low, then I am sure that the monitoring head will appear like a pattern like interference
Q:Home monitoring system which brand is better
Home surveillance camera is best wireless, do not need to be everywhere wiring. Wireless surveillance cameras can be placed anywhere, no wiring trouble. The only requirement is that you need to have a wireless router and place the surveillance camera at the location of the wireless router.
Q:What is the minimum illuminance indicator of the surveillance camera?
IRE Level: The maximum amplitude of the video output of the CCD camera is generally set at 100IRE (or 700 mV), and a 100IRE video indicates that you can fully drive a monitor to show the best brightness and contrast image quality. 50IRE video shows only half the contrast, 30IRE (or 210 millivolts) that only 30% of the original amplitude, usually 30IRE is the lowest performance available image value. So there is no indication of the lowest illuminance results of the IRE grade and are not actually comparable. Finally, it is the camera's special function settings.
Q:What kind of surveillance camera is good
The performance of the camera is mainly the minimum illumination (that is, the ability to adapt to the dark light), focal length (according to your workshop to install the camera position and to monitor the range of fixed focus, the shorter the shorter the focal length of the larger image is not very clear
Q:Is to use two TV sets, and can use this one to monitor the camera. Can I? How should I pick, but also with what accessories. Please prawn help me, thank you
The easiest way is what is not directly connected to the line, this method is the most simple and most reliable, with a long time to use three links is also easy to oxidize the problem! The line directly connected to the line, to the TV then then a lotus joint on the line, that is, like the DVD cable that line on the line!
