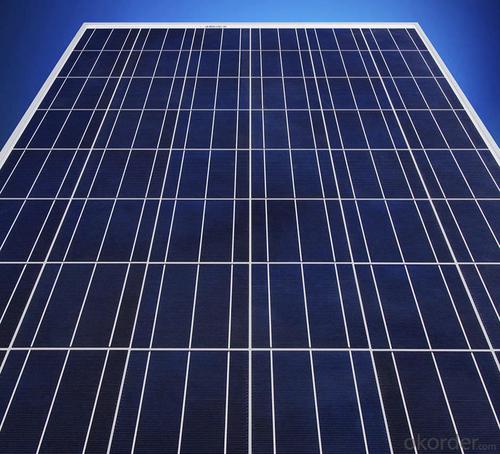

30W Small Poly Solar Panel Film Solar Panels CNBM

30W Small Poly Solar Panel Film Solar Panels CNBM

Ref Price:

Loading Port:: Qingdao

Payment Terms:: TT OR LC

Min Order Qty:: 10 set

Supply Capability:: 300000 set/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

Solar Panels Tempe Mono Solar Panels CNBM 235W

Mono Solar Panels CNBM 280W-300W for Mars Solar Panels

Best Quality Solar Polycrystalline Panels (270W-290W)

American Made Polycrystalline Solar Panels

Solar Panels Newcastle - High Quality Solar Module from CNBM

Solar Panels 300 Watts from CNBM

45w Marine Grade CNBM Monocrystalline Silicon Solar Panel for Home Use

Pool Solar Panels for Sale - Solar Panel Module from 10W to 310W from CNBM

Polycrystalline Solar Modules

CNBM offers a range of small, medium and large polycrystalline solar modules, designed for a range of requirements.

30W Poly solar Panel Small Poly Solar Panel CNBM

Specifications:

Tolerance	+/-3%
Cell	Polycrystalline silicon solar cells (156 x 156mm)
N0. of Cells	60 (10 x 6)
Dimension of Modules (mm)	1650 x 990 x 40
Weight (kg)	25.5

Limits:

Operating Temperature	-40~+85?
Storage Temperature	-40~+85?
Maximum System Voltage	1000 VDC max.
Hail Impact	Diameter of 28mm with impact speed of 86km/h

Temperature and Coefficients:

NOCT	48C+/-2?
Voltage temperature coefficient (%/K)	-0.35
Current temperature coefficient (%/K)	0.05
Power temperature coefficient (%/K)	-0.45

Characteristics:

Model:	SGM-200P	SGM-210P	SGM-220P
Max-power voltage Vmp (V)	29.2	29.4	29.41
Max-power current Imp (A)	6.85	7.14	7.48
Open-circuit voltage Voc (V)	36.5	36.69	36.9
Short-Circuit Current Isc (A)	7.28	7.6	7.93
Max-power Pm(W)	200	210	220

Model:	SGM-230P
Max-power voltage Vmp (V)	29.8
Max-power current Imp (A)	7.72
Open-circuit voltage Voc (V)	37.31
Short-Circuit Current Isc (A)	8.19
Max-power Pm(W)	230

STC: Irradiance 1000W/m2, module temperature 25?, AM-=1.5

Poly Crystalline Solar Panels Specifications Range

Maximum Power (Pm)	Dimension	Weight	Operating Voltage (Vmp)	Operating Current (Imp)	Open Circuit Voltage (Voc)	Short Circuit Current (Isc)
0.45W	140x80x10mm	0.08kg	3.3V	150mA	4.6V	160mA
1.0W	162x140x10mm	0.16kg	7.5V	150mA	10.3V	160mA
4.5W	269x251x23mm	0.8kg	16.5V	0.27A	20.5V	0.3A
10W	420.1×268.9×22.6mm	1.92kg	17.5V	0.58A	20.5V	0.6A
20W	425x502x50mm	3.0kg	16.8V	1.19A	21.0V	1.29A
30W	593x502x22.6mm	3.9kg	16.8V	1.78A	21.0V	1.94A
40W	655x537x50mm	5.75kg	17.3V	2.31A	22.1V	2.54A
50W	839x537x50mm	6.0kg	17.5V	2.9A	21.8V	3.17A
65W	1111x502x50mm	7.2kg	17.6V	3.69A	22.1V	3.99A
80W	1204x537x50mm	7.7kg	17.6V	4.55A	22.1V	4.8A

Q: in a solar panel, i know that the electrons are knocked loose and used as energy, what happens to the protons?: silicon based photovoltaic cells used some boron as dopant. i dont understand if that helps supress proton pastime, the way they be conscious boron on supressing run away nuclear reaction.... im clueless as you

Q: Can solar panels be installed on residential complexes or apartment buildings?: Yes, solar panels can be installed on residential complexes or apartment buildings. In fact, they are increasingly being installed on such structures to harness clean and renewable energy for multiple households. The installation process typically involves placing the panels on rooftops or in open spaces within the complex, allowing residents to benefit from reduced electricity costs and a more sustainable living environment.

Q: I'm building a solar panel for the first time and have the tabbed solar cells. I put together 4 strings of 9 cells. And the cells are each 0.55V, 3.6A.Because I'm going to be using the panel indoors and leaning it up against a window pane, I put them in a 24x36 inch poster-size frame. The frame has a plexiglass cover and a thick cardboard backing. My question to you is this. Will the cardboard backing up against the metal underside (positive side) of the solar cells be ok? I don't know if it may catch fire or if holes may burn through when there's full sun.My guess here is it should be ok. But maybe I'm wrong. If I am wrong, or if something should be put in between, please let me know what I should use.Thanks everyone!: No,do not use card board because your cells are quite powerful. Accident short might cause fire. Replace it with another piece of plexi-glass.

Q: I have a college project due within a week, and it involves a 00 Watt solar panel and a 2V 7.5Ah Battery. I got the project finished up and producing free energy for my house in September, however recently the battery I bought, that was specifically made to hold Solar Power, lost its charge (unsure how or why) and it is pretty much useless. Can I just go to a store and buy any 2V car battery to use?: well the thing to remember just like any rechargeable battery they don;t respond well to continues charging they need some down time to discharge and then recharge. during the charging process the liquid or battery solution get hot and even evaporates. Replacing the battery solution with water won't work when your battery has lost it's solution you need to get battery acid replacement or battery repair solution. this is sold in many location near where the batteries are sold. check your spec for your solar panel out put and take those specification to your local auto store and they might even suggest an over sized battery. you might consider adding an additional battery in series for additional power storage.you might also using a light sensor and cut off switch solenoid which which stop charging or which would also stop and current from returning back to the panel. if you have every own a small car the battery is much smaller than that of a pick up. be sure that you don't get the small battery look for a large heavy duty battery all sold in the same store.

Q: Can solar panels be used to power an entire office building?: Yes, solar panels can be used to power an entire office building. By installing a sufficient number of solar panels on the roof or surrounding areas, an office building can generate enough electricity to meet its energy needs. Additionally, by integrating battery storage systems, excess solar energy can be stored and used during non-sunlight hours, ensuring continuous power supply.

Q: what parts and tool do i need to build and connect a solar electric panel to my home: Solar energy is very expensive. Or I should say, solar panels are expensive, because once you install them the power is free. A typical residential solar power system that supplies around a kilowatt of power at best conditions (noon, sunny day) will cost about $0,000. This includes the solar panel, the inverter (converts DC into AC), the cabling, but not installation (that would probably run you another $2000). One kilowatt is not that much electricity. It would run one microwave oven, or one hair dryer, or 0 light bulbs, and nothing else. Most houses use 3 times that at peak hours. So you would still likely get some power off the grid at peak time, and other times you can sell it back to make a little money. The good news is that solar panels are getting cheaper. They are around $5 per watt now, and are projected to drop to half that in the next decade. At some point, it will reach the sweet spot that makes solar an attractive alternative to grid power and more people will jump on board. There are some tax incentives too, but more would certainly help.

Q: i need to make a mini-solar car which shouldn't cost much. it's for my science project. for now, i just found out how to make a solar panel using copper oxide, but it does not generate enough power to power up the engine of the toy car [ the small engine they used in the toys, like from TAMIA]: Have okorder . This will absolutely save yourself!

Q: For example, how many large solar panels would you need to operate a greenhouse with lighting for simulate sun during cloudy weather, a scheduled sprinkle system and other such things?I'm looking for a very in depth answer.: We think that powerful solar panels are good . As per their capacity they of-course needed many many solar panels, tks.

Q: . Do they scratch easily? How do I remove snow from them without scratching them?2. What does the upkeep of many solar panels consist of? I want to have my electricity completely off of the grid.3. Are all solar panels made from the same material, regardless of size?: anythign can be scratched/ruined/altered if not tended to properly.... remove the first biggest layer of snow and leave a lil under to try to see first if it melts away on its own (dpeendin what season of course) if not than get some luke warm water and soak the snow.... slosh it off with a rubber shovel or mop.broom whatever wont damage ur panels. anythign you take care of will last longer and take care of you.... and solar is expensive to put in and can be expensive to maintain . depends where you have most sun and depends how many resources you use, if you leave the tv on absent mindely all night and take 50 min showers or blast the heat with jsut on epathetic lil donwpour of rain instead of just BUNDLING UP like a alot of lazy *** ameicans and.or rich careless bastards of course youa re goign to be paying up and out of your asshhhhh-hooooo and nooooo there are some different materials solar panels are made of, there is a main base/core they use but im sure there are AT MOST two...the rest is either glass or plastic! depends for what you want and how many , includign size.... good luck!!!! excuse my typos
