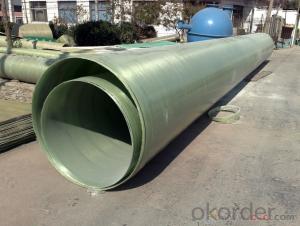

Cpvc Composite Pipes - Light Weight and High Strength FRP/GRP Pipe with Best Price (DN1-3M)
- Ref Price:
-
$1.00 - 3.00
/ kg
- Loading Port:
- China main port
- Payment Terms:
- TT or LC
- Min Order Qty:
- 1000 kg
- Supply Capability:
- 10000 kg/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Specifications
FRP pipe
ISO certificate
Competitive price
Good service
Flexible design, excellent characteristics, low cost.
Characteristics:
1. Good physical mechanics performance
2. Being resistant to chemical erosion and longer service life
3. Excellent hydraulic characteristics
4. Lower installation and keeping cost
5. Flexible design and shorter reform term
6. No medium pollution
FRP pipe classification by application field
1. Chemical medium transportation pipe
2.Various producing process pipe (chemical process, paper making process, polluted water treatment process, sea water purifying process, food and drink producing process, and medicine producing process)
3. Pressure pipe for small hydroelectric power station on the ground and cycling pipe for power plant
4. Polluted water collecting and transporting pipe
5. Drink water transporting main line and tubing pipe
6. Oil field water injecting pipe and oil transporting pipe
FRP pipe classification by pressure in working state
1. Medium and low pressure pipe 0.6MPa2.5 MPa
2. High pressure pipe5.5MPa24 MPa
3. Mobile gravity pipe (which can be used when the pressure is under 0.6MPa)
4. Vacuum tube, external pressure pipe or siphon.
FAQ
1..Is your company a factory or trade company?
A:We have our own factory , we are on this business more than 10 years.
2.Who will pay for the express cost ?
A: We can support you free samples ,but express cost will be paid by you .
3.How long is the delivery time?
A:within 10-15 days after receiving deposit.
- Q:What are the standards for FRP pipes?
- In order to comprehensively check the installation quality of the pipeline, it is necessary to carry out a comprehensive examination according to the test methods stipulated in the code for construction and acceptance of water supply and drainage pipeline works and to carry out the water pressure test. Permissible water seepage can be carried out according to the standard of FRP pipe.
- Q:How is the glass reinforced septic tank and the cement drain pipe connected?
- The interface can be bonded with epoxy resin adhesive. The epoxy resin strongly adhere to the two materials, but the bonding surface must be clean.
- Q:FRP acceptance standard
- Perform hydrostatic test. In order to comprehensively check the installation quality of pipes, the pressure test shall be carried out according to the test methods stipulated in the code for construction and acceptance of water supply and drainage pipe works, and the allowable seepage water quantity shall be carried out according to the standards of the steel pipe.
- Q:How can I replace the valve on the water supply pipe?
- According to the position of the branch pipe, the position of the opening is reasonably determined, and the position of the socket of the glass steel pipe is avoided as far as possible, and a better position is selected in the middle of the pipe body;
- Q:How much is a glass fiber reinforced plastic sand pipe socket pipe fitting?
- Gfrpmp light material, with the diameter of the pipe with pressure gfrpmp weight is 1/15 ~ 1/10 concrete pipe, resulting in transportation, lifting and lightweight, easy to install, laying pipes in drainage construction rectification, ensure the reliability of the pipeline axis and elevation positioning accuracy and construction. The drainage pipe interface with socket type "O" - type double seal ring connection, flexible joint tensile performance is better than that of concrete, so the soft mud foundation adaptability. The cost of pipe foundation treatment is greatly reduced compared with that of concrete pipe, so it is not necessary to install steel mould, lashing steel bar and pouring concrete as the concrete pipe, thus reducing the construction labor intensity and shortening the construction period [2].
- Q:What's the difference between glass fiber reinforced plastic pipe and glass fiber reinforced sand pipe?
- If the thickness of the pipe can meet the requirements of pressure, but can not meet the stiffness requirement, will choose to increase the thickness of sand to meet the stiffness (of course can not directly increase the sand thickness to meet the requirement of stiffness, but the cost is too high).
- Q:Are there any differences between FRP pipes and FRP pipes?
- Air duct is a pipe system used for air transportation and distribution. There are two kinds of composite air duct and inorganic air duct. The duct can be classified according to the shape and material of the section. Duct made of stainless steel duct, in the bite mouth, rivet joint, flange, four corners and other cracks painted with sealant (such as neutral glass glue). Surface dust and grease shall be removed before applying sealant. According to the section shape, the wind pipe can be divided into circular duct, rectangular duct, a variety of flat air pipe, wherein the circular duct resistance minimum maximum height, making complex. Therefore, the application of rectangular wind tube based. According to the material, the air duct can be divided into metal wind pipe, composite air pipe and macromolecule air pipe.
- Q:How to improve the compressive strength of waste glass fiber reinforced plastic profiles (such as square tubes) should be started with resin, curing agent, glass fiber or other aspects!
- Ensure the solidification of glass steel products in a reasonable range, in general, glass fibre reinforced epoxy resin material curing degree if the use of amine curing agent, the best curing degree in the range of 135 degrees --150 degrees, polyester resin, Mohs hardness of about 60 is OK.
- Q:What kind of project needs fiberglass pipe?
- Glass fiber reinforced plastic material has the advantages of corrosion resistance, high strength, low weight, and other materials can not be compared, the use of a wide range of purposes, such as water supply, chemical raw materials, hot and hot water transportation, ventilation and so on
- Q:Winding method of glass fibre reinforced plastic pipeline anticorrosive glass fiber cloth
- When the length and width of glass fiber mesh are not enough, the method of lap joint must be adopted to improve the tangential bearing capacity of the joint, so as to effectively overcome the radial tensile stress, bending force and bending shear stress. The lap length of the glass fiber cloth at the joint is generally 50 to 100mm, and the joint of each glass fiber cloth should be at a certain distance from the adjacent joint. The longitudinal and transverse joints between adjacent layers shall be greater than 300mm, and the distance from the same seam shall not be less than 500mm.5) paste made of circular duct, glass cloth along the radial 45 degree angle to the direction of cut cloth; conical paste products, according to the fan-shaped cloth.
