• Fuel Tanker  T5g 22000L Oil Truck Tank Truck System 1
  • Fuel Tanker  T5g 22000L Oil Truck Tank Truck System 2

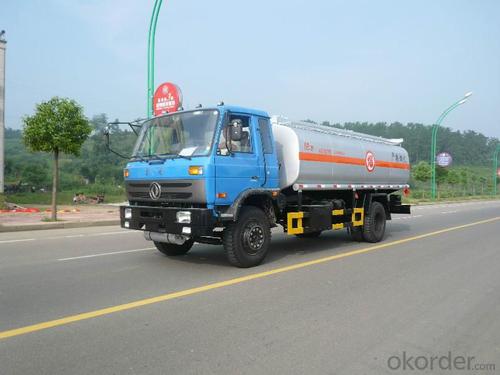

Fuel Tanker  T5g 22000L Oil Truck Tank Truck

Fuel Tanker T5g 22000L Oil Truck Tank Truck

Ref Price:
get latest price
Loading Port:
Shanghai
Payment Terms:
TT OR LC
Min Order Qty:
1 PCS
Supply Capability:
1500 PCS/month

Add to My Favorites

Follow us:


OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Fuel Tanker  T5g 22000L Oil Truck Tank Truck

Product Details

Basic Info.

Model NO.:

Transmission Type:Manual

Power:Diesel



Load Capacity:41-50t

Emission Standard:Euro 2



Drive Wheel:6×4

Engine Capacity:4-6L



Seats:≤5

Horsepower:451-500hp



Tire Type:Inner Tube

Tire Certification:ISO



Tire Design:Radial

Dumping Type:Bidirection Dumping Style



Condition:New

Maximum Speed(Km/H):110



Economical Speed(Km/H):85

Maximum Gradeability(%):45



Turning Diameter(M):14

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:howo



Packing:Nude

Standard:CCC



Origin:China

HS Code:8704190000



Production Capacity:100000 Units/Year.

Product Description




Condition:

New

Horsepower:

251 - 350hp

Drive Wheel:

6x4

Transmission Type:

Manual

Emission Standard:

Euro 2

Engine Capacity:

> 8L

Fuel Type:

Diesel

Brand Name:

HOWO

Size:

6730x2496x3035/3335/3535/3830

Gross Vehicle Weight:

8100






Weight Parameter

Complete Vehicle Kerb Mass(kg)

8100

Maximum authorized total mass (kg)

25000

Maximum authorized towed total mass(kg)

40000

Dimension Parameter

External Dimensions(mm)

Length

6730

Width

2496

Height

3035,3335,3535,3830

wheelbase(mm)

3200+1400

Minimum Ground Clearance(mm)

235

Performance Parameter

Maximum Speed(km/h)

110

Economical Speed(km/h)

85

Maximum Gradeability(%)

45

Turning diameter(m)

14

Recommended Configuration

Engine

Engine Type

MC07.34-30


Rated power(kW)/Rev(r/min)

248/2300

Maximum Torque(N*m)/Rev(r/min)

1250/1200-1800

Transmission

HW10

Clutch(mm)

430

Rear Axle

Type

MCY13

Speed Ratio

4.11

Fuel Tank(L)

400

Chassis Cross-section(mm)

F965
B762×270×85×8

Suspension(Front,Back)

3/4

Tyre

295/80R22.5

Fuel Tanker  T5g 22000L Oil Truck Tank Truck

Fuel Tanker  T5g 22000L Oil Truck Tank Truck


Q:Does the truck have automatic gear?
Yes, but China should not. Foreign countries are much more automatic!
Q:Truck brake shake reason
On the brakes, shaking what is the case, if it is high speed (80 feet or more) on the brakes, steering wheel slight vibration is normal, because there are road resistance coefficient influence and body deceleration impact.
Q:What kind of car is pickup?
As the name suggests, it is also a car model with a sedan head and a cab with an open wagon compartment at the same time.
Q:What's the super truck for coal mines?
The open pit coal mine is a dump truck. At present, more domestic ones are used in Xiangtan, Carter Bellas and so on, and the tonnage is 50 tons to 220 tons
Q:What are the criteria for the tonnage of freight cars?
Close packed truckUnlike the container trucks, the van does not separate the frame and the trailerFreight car headstock.A heavy truck can be divided into these parts:The car and truck front (Hong Kong: traffic and front)A cargo bucketA lifting board (Hongkong is known as the "tail board")
Q:Classification of freight car bridges
Don't understand, I have been watching the bridge appearance. The size, like Cummings's is the 153 bridge, 608 steel, 153 is a small bridge. Width are different. The Dongfeng car is the 153145 bridge is called so called liberation and Dongfeng 153 bridge. 457 bridge at bridge. You see, the half shaft can be seen,
Q:What kind of car does pickup truck belong to?
Pickup is a type of vehicle with a SUV front and a cab with an open wagon compartment. It is characterized by the comfort of the car, the power and the ability to load and adapt to the road. And at present, many brands of pickup equipment are not inferior to cars, leather seats, top sound, everything.
Q:What do you mean by the 6X2, 6X4 driving methods of the trucks?. Please say more details
The 6 refers to the vehicle a total of 6 heads is 3 axes, 2 refers to the 2 axis is an axis is driven, in the same way, 6X4 refers to the 3 axis, 2 axis drive, the number and the wheel is Never mind, only the total number and the axis and the number of the drive shaft.
Q:What is the big truck lock bridge?
Another differential lock between the bridge and bridge, called the bridge differential lock, mainly used for the bridge and the rear axle rotate synchronously.
Q:How to define the super height of freight cars?
Fifty-fourth the carrying capacity of a motor vehicle shall not exceed the quality approved by the motor vehicle driving permit, and the length and width of the vehicle shall not exceed the carriage, and the following provisions shall be observed:(1) heavy and medium-sized trucks and semi trailers shall not be more than 4 meters from the ground and shall not exceed 4.2 meters in carrying containers;(two) the carrying capacity of other motor vehicles shall not exceed 2.5 meters from the ground;
