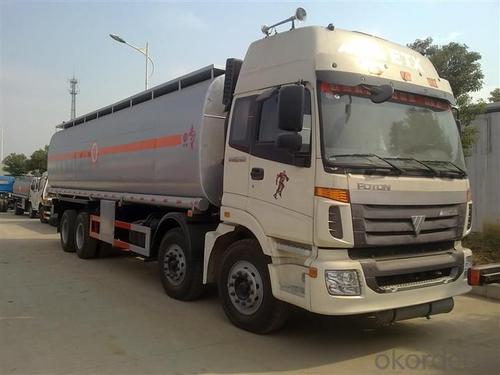

Fuel Tank Truck 6X4 300HP 25cbm with Weichai Engine

Fuel Tank Truck 6X4 300HP 25cbm with Weichai Engine

Ref Price:

Loading Port:: Shanghai

Payment Terms:: TT OR LC

Min Order Qty:: 1 PCS

Supply Capability:: 1500 PCS/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Basic Info.

Model NO.:CLQ5251GJY4SX

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 4

Tank Volume:15001-30000L

Drive Wheel:6×4

Seats:≤5

Horsepower:251-350hp

Engine Capacity:＞8L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ECE, ISO, DOT

Tire Design:Radial

Condition:New

Engine:Weichai Diesel Engine

Rated Power:270HP/300HP

Tank Capacity:25-27cbm

Drive Type:6X4/LHD,Rhd

Chassis:Shacman Brand

Export Markets:North America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SHACMAN

Packing:Nude Packing

Standard:ISO9001

Origin:China Mainland

HS Code:870423009

Production Capacity:10, 000units/Year

Product Description

Engine: Weichai Engine
Rated Power: 270/300HP
Chassis: Shacman famous brand
Drive Type: 6x4/LHD,RHD is optional.
Tank Capacity: 25-27CBM

Item	CLQ5251GJY4SX
Chassis Model	Shacman SX1256UN434
Diesel Engine Model	Weichai WP10.270E40/WP10.300E40
Displacement/ Rated Power	9726ml /199kw;221kw
Tire and spare tires	11.00-2018PR,11.00R2016PR,12.00-2016PR,12.00R2014PR(10+1 spare tire)
Cabin	Flat Roof Cabin
Wheel base	4325+1350,4600+1350mm
Axle	Front axle:5T / Rear axle:10T
Steel plate No. Spring	9/12,10/12
Oil Paint	Metallic paint
Tank Capacity	25-27m3
Tank Material	Q235B (carbon steel)
Tank thickness	5mm
GVW	25000 kg
Payload	14345 kg
Kerb Weight	10460 kg
Dimensions (LxWxH)	9950,10500x2500x3350 mm
Max. Speed	90 km/h

Fuel Tank Truck 6X4 300HP 25cbm with Weichai Engine

Q: The van truck tailgate and what is the difference: The difference between the van and truck tailgate is very simpleYou can literally understand it,Van is the car as imaging containers, all closed type.The truck is just a row of fence fence stopped, car is open, as is the large volume of cargo handling.

Q: What's the difference between a large truck and a tractor?: The truck, truck needs, so with hopper, is a whole.

Q: Why does the transmission gear and reverse gear use straight gears, while other gears use bevel gears? In addition, why do heavy duty trucks use straight gears for some transmissions?: In addition, heavy truck may be too large torque, the use of helical teeth, the axial force is too large, so that the axial positioning of the gear is difficult to implement, so the use of straight teeth.

Q: How many kilometers is the wagon maintained?: The 1. engine through the filter Sanqing after the operation, should be easy to start, smooth operation, normal exhaust (refers to exhaust), water temperature, oil pressure requirements, smooth speed, abnormal sound, the belt tension is moderate, no leakage four (water, oil, electricity and gas) phenomenon.The 2. direction free travel and the front beam meet the requirements. The steering is light, flexible and reliable. When driving, the front wheel has no left or right swing head and deviation.3., the clutch free travel meets the requirements, easy operation, separation, complete, stable combination, reliable, no noise, hydraulic system without oil leakage.4. transmission box, drive axle, universal joint (or half shaft), transmission device and other lubrication good, reliable connection, no noise and overheating, do not jump gear, flexible gear, no oil leakage.5. brake pedal free stroke and brake intermittent meet the requirements, driving, parking brake good, no deviation phenomenon when braking and brake drag delay phenomenon, the inertia proportional valve works normally, no oil leakage.6. the tire pressure is normal (different models specify high and low voltage standards are different).7., cantilever, shock absorption, fixed and reliable, function is normal, the hub bearing temperature is not high fever after driving.8. generator, starter, light, instrument, signal lamp, button, switch, accessory equipment is complete and complete, can work normally.9., the whole car lubrication points filling lubricating oil.10. all car wash clean.

Q: C1 can you drive a 6.8 meter long truck?: No, because the C1 driving license to drive for small and micro passenger cars (the small passenger car is less than or equal to 9 or less, and the length is less than 6 meters), light and mini trucks; light, small, micro special vehicles.

Q: What kind of license do you need to drive a truck with a load of 5 tons?: If it's a truck alone, B2 will do, as long as it's not a trailer.The vehicle class code is expressed in 1 digit Arabia figures.

Q: What skills do trucks reverse?: Let's talk about the skills of trucks entering the warehouse first.A truck into the library, linked to the reverse, people sit back on the right side of the carriage second bar (from front to back) and in the bar in a diagonal line to the direction of the right to make the car killed, right angle and tail rod keep 60 cm distance around the turn into the bar, at this time, the left hand on the steering wheel (like clock) 3 point position, head in the middle of the cab car rear window glass box after the center point, when the trunk center point and left behind the bar aligned, the left back direction to the car down to the bottom line is not to stop, the car out of the bottom line.

Q: B2 driver's license, can you drive the big truck in the eight round?: Sure。In the freight car class, the B2 card, in addition to caring about the car (that is usually said to drag the head car, quasi driving code named A2) can not drive, other yellow cards of the van, as long as no trailer can drive.

Q: What's the procedure for a minivan?: Now less than 2 tons, you can not apply for operating permit. I don't know where you are.

Q: What brand of van is good?: There is a Jiangling, this car is also good, the Isuzu engine technology, the market is also very good reputation, has the characteristics of Isuzu Isuzu, relatively better, but the price is much cheaper, more than 70 thousand, and more than 80 thousand, their common characteristic is the motivation is good, but the high cost of maintenance.
