20m Telescopic boom aerial working platform
- Ref Price:
-
- Loading Port:
- Tianjin
- Payment Terms:
- TT OR LC
- Min Order Qty:
- -
- Supply Capability:
- 100台 /month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like

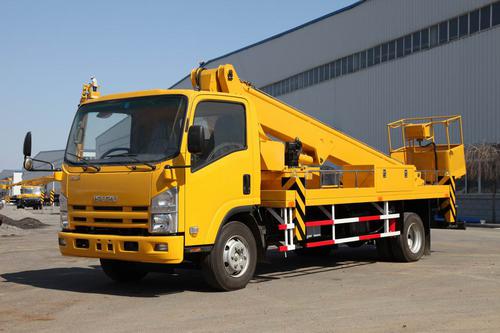

The max. working height of this aerial working platform is 20m.
It can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
We start this business from 1998, have many years of design and production experience.For the upper structure, we use HQ600 high strength steel, for some key components, we imported from Europe to assure product high quality.
Our product is durable and easy operation and maintenance, we can supply training for customer in our factory for free. pls find below detail parameters:
Bulletin No. | KFM5080JGK410S | |
External dimensions（mm） | 8520×2260×2750 | |
Structure type | Three-section telescopic boom | |
Working Cage | Internal size（mm） | 1173×713×1100 |
Rated loading（kg） | 200 | |
Max. Working height（mm） | 20200 | |
Max. Height from ground（mm） | 18500 | |
Max. Working radius（mm） | 13100 | |
Working radius when doing the highest height（mm） | 3100 | |
Working Boom | Lifting angle of main boom（º） | -20°—78° |
Boom rack rotation angle（º） | 360 | |
Outrigger | Vertical span（mm） | 4500 |
Horizontal span（mm） | 4000 | |
Traveling of vertical outrigger（mm） | 550 | |
Adjustment | Single adjustable | |
Chassis Introduction
Traveling Performance Parameters |
Chassis model | ISUZU QL11009LARY |
Persons | 3 | |
Axle base (mm) | 4175 | |
Wheel base (front/rear)（mm） | 1680/1650 | |
Driving mode | 4×2 | |
Front suspension（mm） | 1110 | |
Rear suspension（mm） | 2110 | |
Approaching angle（º） | 20 | |
Departure angle（º） | 10 | |
Min. Turning diameter（mm） | 16000 | |
Min. Ground clearance（mm） | 215 | |
Engine | Engine model | 4HK1-TCG40 |
Rated power（kw/r/min） | 139/2600 | |
Torque（N、m/r/min） | 510/1600 | |
Max. Speed（km/h） | 100 | |
Gas consumption per one hundred miles(diesel oil) （L） | 13 | |
Specification of the tire | 235/75R17.5-14PR | |
The whole weight（kg） | 8080 | |
Max. Weight with whole loading（kg） | 8275 | |
- Q: What is the relationship between the winch and the reel and the reel shaft?
- First, the reel is mounted on the upper drum holder, and then the spline shaft is inserted into the internal spline of the friction plate of the reducer (the picture is seen), and then the hoisting motor (the balance valve is installed) and
- Q: What are the truck cranes getting off the system and the car system?
- The following is the part that gets off (the part that can not be rotated).
- Q: What is the weight of a truck crane?
- , The input conditions after the computer will prompt you to have several configurations can be completed lifting, you can choose their own
- Q: What is the principle of car hanging arm?
- The first section telescopic arms are driven by the cylinder 1, and the second and third sections are driven by the cylinder 2.
- Q: What are the main parts of the truck crane?
- The truck crane is mainly composed of a running part and a working part. The working part includes a luffing mechanism, a telescopic mechanism, a lifting mechanism, a rotating mechanism and an outrigger
- Q: What is the working principle of a truck crane?
- In addition there are some car cranes inside the telescopic arm mounted with a plunger-type cylinder, but this application is rare.
- Q: How about the commonly used car cranes for the construction of the villa
- In the large construction site more common there are three kinds of lifting machinery, one is the electric tower crane, the second is the car is a crane, commonly known as car crane, the third is a crawler crane, commonly known as crawler crane.
- Q: What are the characteristics of the development of car cranes abroad?
- The remote control system is used in a truck crane and other mobile crane, which includes a controller on the controller and a receiver mounted on the crane, the controller having an electromagnetic radiation generator, a receiver acting on a crane
- Q: What is the basic structure of a car crane?
- The truck crane is mainly composed of lifting, changing, turning, lifting and car chassis.
- Q: What are the four kinds of truck cranes?
- the boom of the boom (the elevation angle of the adjustment boom), the horizontal cylinder of the leg and the vertical cylinder of the leg.
