Articulated boom aerial working platform working height 16m
- Ref Price:
-
- Loading Port:
- Tianjin
- Payment Terms:
- TT OR LC
- Min Order Qty:
- -
- Supply Capability:
- 100台 /month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like

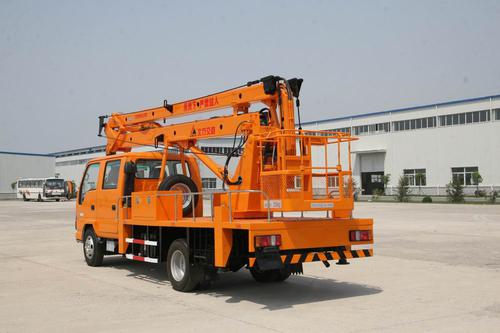

The max. working height of this aerial working platform is 16m.
It can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
We start this business from 1998, have many years of design and production experience.For the upper structure, we use HQ600 high strength steel, for some key components, we imported from Europe to assure product high quality.
Our product is durable and easy operation and maintenance, we can supply training for customer in our factory for free. pls find below detail parameters:
Bulletin No. | KFM5065JGK | |
Type | GKZ-16Q | |
External dimensions（mm） | 7300×2000×2970 | |
Structure type | Three-section articulated boom | |
Working Cage | Internal size（mm） | 1100×600×1100 |
Rated loading（kg） | 200 | |
Max. Working height（mm） | 14000 | |
Max. Height from ground（mm） | 14300 | |
Max. Working radius（mm） | 7700 | |
Working radius when doing the highest height（mm） | 3220 | |
Working Boom | Max. Raising angle of lower boom（º） | 70 |
Max. Raising angle of upper boom（º） | 70 | |
Max. Raising angle of jib（º） | 90 | |
Boom rack ration angle（º） | 360 | |
Outrigger | Vertical span（mm） | 3200 |
Horizontal span（mm） | 3600 | |
Traveling of vertical outrigger（mm） | 450 | |
Adjustment | Single adjustable | |
Lifting | Rated lifting weight（kg） | 995 |
Rated lifting height（mm） | 8630 | |
Chassis Introduction
Traveling Performance Parameters | Chassis model | ISUZU NKR77LLWCJAY |
Persons | 2+3 | |
Axle base (mm) | 3815 | |
Wheel base (front/rear)（mm） | 1504/1425 | |
Driving mode | 4×2 | |
Front suspension（mm） | 1015 | |
Rear suspension（mm） | 2040 | |
Approaching angle（º） | 24 | |
Departure angle（º） | 11 | |
Max. Grade ability（%） | 30 | |
Min. Turning diameter（mm） | 18000 | |
Min. Ground clearance（mm） | 190 | |
Engine | Engine model | 4KH1-TC |
Rated power（kw/r/min） | 96/3400 | |
Torque（N、m/r/min） | 280/1700 | |
Max. Speed（km/h） | 90 | |
Gas consumption per one hundred miles(diesel oil) （L） | 10.8 | |
Specification of the tire | 7.00-16 | |
The whole weight（kg） | 5875 | |
Max. Weight with whole loading（kg） | 6200 | |
- Q:What is the principle of the arm boom of the boom-type truck crane?
- Synchronous expansion and contraction using a single cylinder plus wire rope, pulley components to achieve expansion and contraction
- Q:Is the crane (a truck crane) a truck?
- The details of these management issues, in the local road traffic management departments will have a clear provision
- Q:What is the design process for a truck crane?
- Drawing a plan (such as parts, parts assembly drawings and assembly drawings, painting drawings, etc.), out of parts table, wearing parts list.
- Q:What is the difference between a truck crane and a car crane?
- In addition to add the domestic 1200t car crane has been used off the assembly line.
- Q:What are the safety procedures for truck cranes?
- The driver must work closely with the commander (lifting engineer), in strict accordance with the signal (flag or gesture) issued by the commander; operation must be marked (bell or speaker) signal; if the command signal is unclear or wrong, the right
- Q:What is the basic structure of a car crane?
- A large, long-working mechanical-powered truck crane has been replaced by a hydraulic truck crane.
- Q:What is the reason for the jitter of the crane boom
- Once the air into the hydraulic circuit, it will increase the oil elasticity, reduce the hydraulic drive stiffness, the telescopic cylinder impact and crawling phenomenon, causing the boom when the telescopic jitter.
- Q:What is the hook crane technique?
- From the hook at one go, can not Dayton, a big arm on the Akira, the premise is to know to be able to hang up
- Q:What is the development process of a car crane?
- But in general, China's automobile crane industry has always been the path of independent innovation, has its own clear development context, especially in recent years, China's automobile crane industry has made considerable progress, although compared with abroad also
- Q:What is the material of the truck crane wheel?
- 3, in addition, there are welding pulley or hot-rolled pulley, welding pulley or hot-rolled pulley material is generally made of A3 or 20 steel, low carbon content, the ideal plastic and rigid.
