XCMG Truck Crane QY100K

Ref Price:

Loading Port:: China Main Port

Payment Terms:: TT or L/C

Min Order Qty:: 1 set

Supply Capability:: 100 Sets Per Month set/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

XCMG Truck Crane QY25K

TADANO Truck Crane GT-250E

Articulated boom aerial working platform working height 16m

composite boom Aerial working platform-26m

Shipyard gantry crane 04

QY8D Truck Crane

Mobile Crane with High Speed and high quality TC5610

Rough Terrain Crane Wheel Truck Crane Mobile Cranes with 5 Section Telescopic Boom ISO9001

The features of QY100K are as follows:

1. XCMG QY100K Truck Crane Compact structure, reasonable arrangement, wide outrigger span, and 360º operation of the boom.

2. Six-axle off-road carrier equipped with imported Cummins engine and automatic transmission, max. grade-ability of 40%; maneuverable steering system, good pass-ability, min. turning diameter of 24m.

3. XCMG QY100K Truck Crane Lifting operation is controlled by integrated PLC for construction machinery. Control signals and operating performance chart of parts can be set and adjusted with digit. Working safety, reliability and efficiency are improved greatly.

4. Electric control outriggers leveled by button, and accelerator speed-up button improve working efficiency greatly.

5. XCMG QY100K Truck CraneFive-section boom of oviform boom profile, special blocks and aligning devices and imported high-tension steel plates, minimize the boom weight, make boom telescope smoothly and align accurately and improve the lifting capacity greatly.

6. Euro2 engine for construction machinery equipped on superstructure smooth running, lower noise, powerful output and suitable for continuous work of long time.

7. XCMG QY100K Truck CraneSelf-erecting counterbalances—can be variously combined to meet various working requirements. Various combination of counterweight improves the lifting capacity of mid-extended boom. Movable control box facilitate operation of counterweight.

8. Hydraulic system is a constant power and variable displacement system of cost energy and high efficiency. Combined with PLC, it can adjust flow and pressure of the system according to the change of load automatically, control speed precisely and sensitively.

9. XCMG QY100K Truck CraneComfortable operator’s cab with integrated front and roof windows, air-conditioning, roller blinds, adjustable operator’s seat, noise and heat insulation. It can be tilted backwards 20°.

10. Optional automatic lubricating device. During operation, it will lubricate main positions automatically according to the preset time interval.

11. XCMG QY100K Truck Crane Other optional parts such as jib, single top, anti-ultraviolet rays glazing, and radio-cassette player in operator’s cab are available.

Details of Truck Crane QY100K:

Dimension	Unit	QY100K-I
Overall length, width, height	mm	15600×3000×3850
Wheel base	mm	1420+2420+1800+1420+1505
Weight
Total weight in travel	kg	54900 58000
Axle load
Axle 1	kg	7500 7500
Axle 2	kg	7500 7500
Axle 3	kg	8300 10000
Axle 4	kg	12000 12500
Axle 5	kg	12000 12500
Axle 6	kg	7600 8000
Power
Engine rated power	kW/(r/min)	360/1800 (306/1900)
Engine rated torque	N.m/(r/min)	2200/1300 (2010/1200)
Engine rated speed	r/min	1800 (1900)
Min. ground clearance	mm	310
Travel
Approach angle	°	20
Departure angle	°	14
Braking distance (at 30km/h)	m	≤10
Max. grade ability	%	40
Min. turning diameter	m	24
Fuel consumption for 100km	L	70
Main performance
Max. rated total lifting capacity	m	100
Min. rated working radius		3
Turning radius at turntable tail
Counterweight	mm	4200
Aux. winch	mm	4590
Max. lifting torque		3450
Base boom	kN.m	3450(4m×88t)
Fully extended boom	kN.m	1950(24m×7.1t)
Fully extended boom＋ jib	kN.m	1230(19.2m×6t)
Outrigger span (full extension)
Longitudinal	m	7.56
Lateral	m	7.6
Lifting height
Base boom	m	13.5
Fully extended boom	m	50.9
Fully extended boom＋ jib	m	70.4
Boom length	m	13.5
Fully extended boom	m	51
Fully extended boom＋ jib	m	51+18.1+4
Working speed
Jib setting angle	°	0、15、30
Boom luffing time	s	75
Boom
Boom telescoping time
Full extension	s	160
Max. swing speed	r/min	2
Outrigger extension/retraction time
Outrigger beam in extension/retraction	s	25/15
Outrigger jack in extension/retraction	s	45/25
Lifting speed (single rope, layer 4)
Main winch	m/min	105
Aux. winch	m/min	104

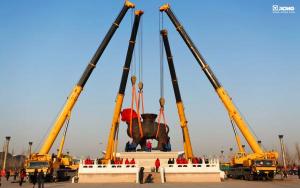

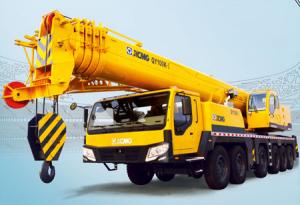

XCMG CRANE 100T

xcmg crane

Q: What is the relationship between the winch and the reel and the reel shaft?: Winch system: get off the oil pump through the center of the rotary joint, and then through the main valve, the first through a gale balance valve, and then drive the hoisting motor, hoisting motor through a spline shaft connected to the reducer (some motor directly connected to

Q: How is the length of the main hoist's main winch and sub-winch wire rope calculated?: 2, the length of the main hoist wire rope to determine: the crane placed in a solid level on the ground, the reel fixed on the reel, winding not less than 3 laps, and then the main arm of the crane,

Q: What are the characteristics of the development of truck cranes in China?: In the enterprise should establish a sound product research and development system, the product serialization, the full range, to form a large series of large, small, increase the number of products, so that the scale of production continue to expand

Q: What are the main parts of the truck crane?: Truck crane is a crane installed in the car chassis on a lifting transport equipment, due to a flexible, able to walk faster operating characteristics

Q: How about the commonly used car cranes for the construction of the villa: Higher, that is, the transfer site is not as convenient as the car crane, need to be removed after the transport, to the new site but also in the assembly

Q: Is the truck crane a special equipment?: related to life safety;the greater the risk;Second, it is to see whether it is in the classification of the equipment.

Q: What is the benefit of the four metal brackets in the rear of the car when lifting the crane: Hydraulic truck crane in the lifting of the four brackets open, obviously increased the weight of the station when the area, a solid crane center of gravity, but also play a supporting role, so that when the lifting time will be more stable.

Q: What is the development process of a car crane?: But in general, China's automobile crane industry has always been the path of independent innovation, has its own clear development context, especially in recent years, China's automobile crane industry has made considerable progress, although compared with abroad also

Q: Does the truck crane commander need a document?: Yes, commanders and operators need to be certified.

Q: What is the difference between a crane and a crane?: There are also fixed base cranes; there are some special cranes.That is, the crane includes a crane, but some lifting equipment can not be called a crane.
