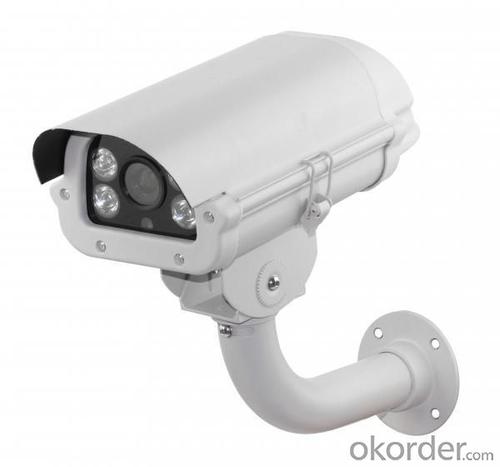

CCTV IR Waterproof Camera with 1/3 SONY
- Loading Port:
- China Main Port
- Payment Terms:
- TT or L/C
- Min Order Qty:
- 100pcs pc
- Supply Capability:
- 10,000pcs per month pc/month
OKorder Service Pledge
Quality Product, Order Online Tracking, Timely Delivery
OKorder Financial Service
Credit Rating, Credit Services, Credit Purchasing
You Might Also Like
Packaging & Delivery
Packaging Detail: | Neutral color box |
Delivery Detail: | 7-10 days after getting payment money |
Description of CCTV IR Waterproof Camera with 1/3 SONY
Model | CMAX-642M-IR50 | CMAX-648M-IR50 | CMAX-654M-IR50 | CMAX-665M-IR50 | |
Image sensor | 1/3 SONY CCD | ||||
Pixel | PAL | 500(H)* 582(V) | 720(H)* 540(V) | 752(H)* 582(V) | 976(H) x 582(V) |
NTSC | 510(H)* 492(V) | 768(H)*492(V) | 768(H)* 596(V) | 976(H)x 494(V) | |
Resolution | 420TVL | 480TVL | 540TVL | 650TVL | |
OSD menu | NO | YES | |||
Video output | 1.0VP—P/75Ω | ||||
White balance | auto | ||||
Gain control | auto | ||||
Backlight compesation | auto | ||||
Electronic shutter | 1/50(1/60)~1/120,000s | ||||
Gamma correction | 0.45 | ||||
Sync system | internal | ||||
S/N radio | >=48dB | >=52dB | |||
IR led | 36pcs Φ8 powerful Blue IR leds | ||||
view distance | 50m | ||||
Minimun Illumination | 0LUX(IR ON) | ||||
Operation lens | standard:6mm operation :3.6mm,6mm, 8mm 12mm, 16mm lens (optional) | ||||
Protection level | IP65 | ||||
Supplied voltage | DC 12V,1000mA | ||||
Working temperature | -10~60 ℃ |
- Q: There are cameras at the fork in the expressway
- The third is to monitor the camera, this camera has a spherical, cylindrical, square box and so on. Some of these cameras with LED lighting device, at night to keep the light to ensure that the camera vision clear. Set the purpose of these cameras is mainly to capture the various types of information applied to the security prevention and control, according to the image records that the facts of the case, locked so that arrested all kinds of criminal suspects
- Q: Is the camera pixel taller the better?
- Although the output of the picture is large, but the quality of the image has not been really effective to improve, and even there may be serious distortion. Only physical pixels high picture will be really clear.
- Q: What is the number of lines that a surveillance camera needs to use?
- Video cable, audio cable is a AV, BNC and other interfaces used by the line, the power cord is the ordinary power cord
- Q: Monitor the camera if the power supply to him a large current, pay attention to the current is not the voltage, the voltage is 12V, then what will happen to the camera?
- The current is very rare to see this situation, but the current is low, then I am sure that the monitoring head will appear like a pattern like interference
- Q: The working principle of the camera with infrared light
- Infrared emission diode (IR LED) infrared lamp principle is: by the infrared light-emitting diode matrix composed of light. Infrared emission diode from the infrared radiation efficiency of high materials (commonly used gallium arsenide GaAs) made PN junction, plus forward bias voltage to the PN junction injection current excitation infrared light. Spectral power distribution for the central wavelength of 830 ~ 950nm, half-peak bandwidth of about 40nm or so, it is narrowband distribution, for ordinary CCD black and white camera can feel the range. The emission power of the infrared light emitting diode is expressed by the irradiance μW / m2. The maximum radiation intensity of the infrared diode is generally in front of the optical axis and decreases with the increase of the angle between the radiation direction and the optical axis. The radiation intensity is 50% of the maximum value of the angle is called the half intensity radiation angle, that is, half power angle. The radiation angle of the infrared light emitting diodes of different packaging process models is different.
- Q: Monitor the camera in the monitor screen appears in the camera 001 what meaning
- Specific recommendations to ask the two manufacturers of equipment. Personal feeling should be the camera with their own figures.
- Q: What is the meaning of monitoring the focal length in the camera?
- Surveillance cameras sellers do not understand the concept of a lot of focus, they tell you that the lens is a few millimeters, the a few millimeters is the focal length or lens caliber they do not understand, they only know to see far or see close.
- Q: What is the abbreviation for monitoring the OLUX on the camera?
- Background light is usually provided by other light sources, because the camera's imaging surface illumination is not convenient and direct measurement, generally given the camera lens aperture conditions, the use of ambient illumination values to characterize the camera optical sensitivity and optical dynamic response range.
- Q: I would like to ask how the video surveillance camera is powered?
- ??Wiring, or to use two lines of good, if their own home, then, with a control line does not matter, but to the customer with the words, or two good, so look more professional, the probability of the problem comparison Smaller.
- Q: A camera for an hour how much space
- Depends on your video recorder video format is CIF or D1
