IP67 Rated A larm GPS tracking kit
Dual tracking techlogy ad poted with Sattelite and L AC/CID Tra cking
1-5mA powe r consumpti on in sleep mode for your battery run out protection - Built-on Board 3D accelerometer sensor for move ment and crash detection
3 Digital Outputs / 4Digital Outputs available

1. Alarm Alert System

a. Shake Alarm: SMS alert

b. Door open Alarm (optional for Vehicle): SMS alert and Call

c. Power Failure Alarm: SMS alert and Call

d. Engine on Alarm: SMS alert and Call

e. SOS Alarm: SMS alert and Call

f. Geo Fence Alarm: SMS alert

g. Speed Over Alarm: SMS alert

h. Moving Alarm: SMS alert

2. Introduction

AS-200 is a waterproofed GSM/GPRS/GPS alarm tracking kits.

This small unit equiped with Quad Bands GSM/GPRS module, Hi-sensitivity GPS receiver, Shocking sensor and RF receiver. The built-in GSM/GPS antennas significantly short the installation time, built-in Siren with Off/ON programmable will bring u more options for security purpose.

AS-200 support both GPS tracking and LAC/CID(GSM Network Station Code) tracking, which brings u a idea solution with 7-24 position fix with no blind area for locating your mobile objects.

It can work alone without any third party help, but also could integreate to a monitoring center base by SMS query or TCP connection query

3. Main Features

SMS/GPRS Data Transmit
Waterproofed: IP67
All built-in: Alarm buzzer, GSM/GPS antenna, 3D accelerometer
Arm/Disarm: SMS comm and, Remote controller, and Input sign al from external device
Illegal Door Open, Engine On, Shake alarm by SMS and missed Phone Call Alert to pres et 4 registered Phone NOs.
GEO Fence Setup and breaking alert
Over-speed limit over Alert
Power Failur e Alarm alert
Crash Accid ent Alert
Remote cut- off engine
System Acce ss Password Protection
Dual Trackin g technology : GPS and LAC/CID tracking
External Sire n connection capability
RF receiver connection c apability for remote controller
Multi sleep Level configu ration: Simple Sleep/Deep Sleep/Normal
External Low battery Alert

4. Specifications

Quad bands GSM modem :850/900 /18 00 /1900MHz
Ublox 6M GPS Receiver: Frequency: L1, 1575.42 MHz. Minimum signal tracked: -160d
Working Temp -20°C ~ +75°C
Humidity: 20~95%
GSM/GPS antenna: Built-in
Built-in Siren: 95dB
Remote controller:
Working frequency: 433MHz. Code: 1527/2240 study

Working Voltage: 12V ( 27A 12V dry battery)

Control Distance: 20- 50M

Mainframe Power supply: 7-60V DC
Backup battery: Lithium Battery 650mAH, 3.7V DC
Tracking Ac curacy: 5-10 Meters
Waterproof Level: IP67
Power Consumption: Normal: 80-180mA
Simple Sleep : less than 15mA (GSM ON, GPS Off, Alarm trigger active)
Deep Sleep: less than 5mA (GSM Off, GPS Off, Alarm trigger a ctive)

How it works Service Platform Apple SMS APP

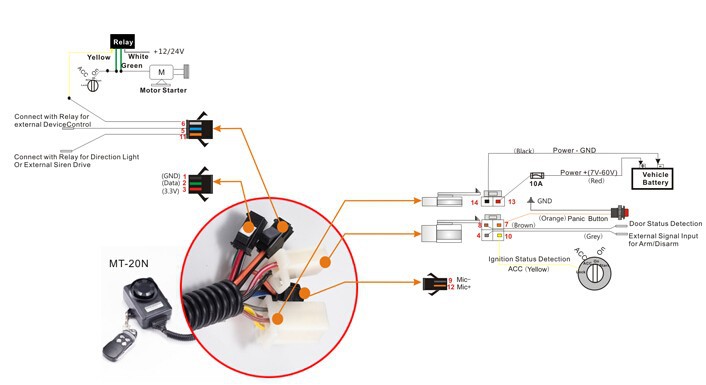

I/O Interface:

RU-200 Interface

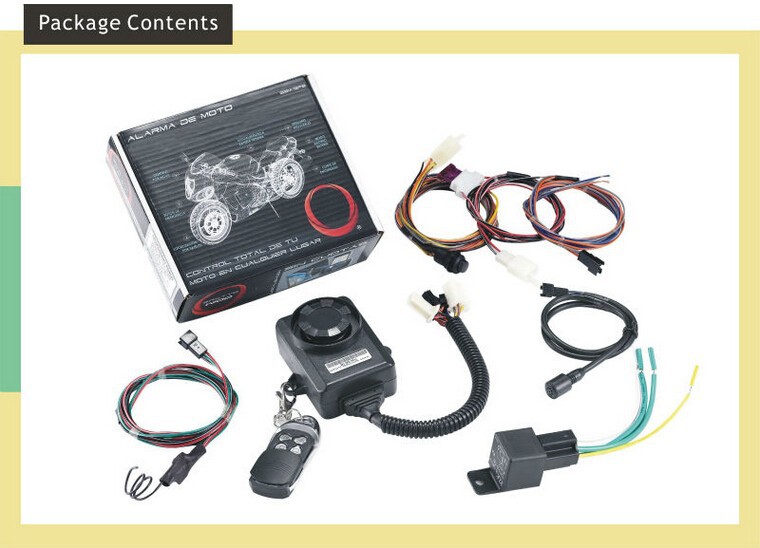

RU-200 Package

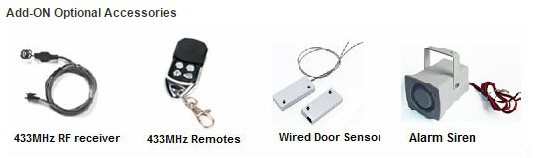

Add-On Optional Accessories
