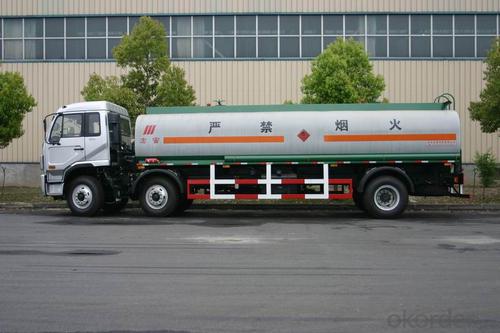

Tank Truck 8X4 for Fuel Transport Transport Tanker Truck
Product Details
Basic Info.
Model NO.:CLW Heavy Industry Co.
Transmission Type:Manual
Power:Diesel
Load Capacity:1-10t
Emission Standard:Euro 3
Tank Volume:5001-10000L
Drive Wheel:4×2
Seats:≤5
Horsepower:150-250hp
Engine Capacity:6-8L
Storage:Oil
Tire Type:Inner Tube
Tire Certification:ECE, GCC, ISO, DOT
Tire Design:Radial
Condition:New
Material:Carton Steel Q235
Exhaust/Power(Kw):120HP
Type:Fuel Tank Fuel Tank Truck Fuel Tank Trailer
Engine Model:Dongfeng
Wheel:6wheels
Capacity:8000L
Driving Model:4X2
Chassis Model:EQ1090
Warranty:One Year for Three Parts (Engine, Gearbox, Axle)
Package:Bulk, RO-RO, Container, Naked for Fuel Tank Truck
Export Markets:Global
Additional Info.
Trademark:CLW
Packing:RO-RO Bulk Naked Container
Standard:ECE ISO GCC CCC ASME ASTM
Origin:Hubei China
HS Code:8701909000
Production Capacity:100000PCS/Year
Product Description
1.Description:DONGFENG 8cbm 4X2 Fuel tank Truck
2.Drive Model:4X2
3.Chassis:EQ1090
4.Dimensions(L x W x H)mm:7000*2285*2700
5.Wheel base (mm):3800
6.Overhang (front/rear) (mm):1180/1640
7.Wheel track (front/rear) (mm):1830/1640
8.Approach/Departure angle(°):19/10
9.Curb Weight:4215kg
10:GVW.:94000kg
11.Max. driving speed(km/h):8
| Model | JYJ5312GYY |
| Chassis model | ZZ1317N4667C1 |
| Driving form | 8x4 |
| Total mass(kg) | 31000 |
| Curb weight(kg) | 12530 |
| Engine | WD615.47(371HP), Euro II emission standard Engine type: Diesel 4stroke direct injection engine, 6cylinder inline with water cooling, turbo-charging & inter cooling |
| Cab | HW76(one bed with A/C) |
| Transmission | HW159710(10 Forward, 2 Revise) |
| Front axle | HF7 (7000kg) |
| Driving axle | HC16 (16000kg x 2) |
| Steering system | ZF8098 |
| Tire | 12.00R20 (11pcs, including one spare tire) |
| Wheelbase(mm) | 1950+4600+1350 |
| Front/rear Overhang (mm) | 1540 / 2490 |
| Approach/departure angle(°) | 15 / 20 |
| Maximum speed(km/h) | 75 |
| Number of spring leaf | 10/12 |
- Q: What do you mean by the 6 * 4 on the truck?
- The front figure represents the total wheel number of the whole car (ie the location of several mounting tires, simply the number of spindles and the number of axles x 2)
- Q: How do trucks change their oil?
- The first car off switch open the engine and oil as the lid, and then put the oil screw removed protection plate under the engine to unload the oil sump (keep off oil seal washer) came out as oil drops almost to tighten the screw (note to drop in parts of oil clean) then you can install the oil, installed after pull out the oil foot clean check oil quantity difference should be slightly higher than the upper limit of the dipstick and cover the upper oil cover and put the car under the East (about 5 minutes) this is to let the new oil reach all parts through the operation of the engine, the side of it the oil can confirm is near the limit of the dipstick
- Q: Common trouble of truck starter?
- The fault point in general are: Starter bearings (copper sleeve) wear gap is too large, the starter brush inside the starter is too short, too dirty, it is normal to the maintenance of common problems, if the starter has fault, the fault point may not start very much, different places may damage with a fault feature if the magnetic switch is damaged, you can try to use the pliers (a thick wire) anode connection starter magnetic switch with the ignition lock, ignition is usually with the sewing thread. If you can't start to coarse terminal connected to the stator wire with magnetic switch on connection), fault characteristics of the bearing clearance is too large is the engine sound started boring very heavy, and so on, wow, this question is too general, so much a fault will not end, said it had several. Don't understand. Just ask me,
- Q: What oil does the pickup truck burn?
- Pickup trucks are basically diesel vehicles, pickup trucks are vans, diesel power is better, so gasoline vehicles are eliminated
- Q: Truck tire distance
- If you have access to the site of the road on both sides of the wheel is not the kind of collapse, middle high raised serious rutting under the condition of your vehicle by car (or as long as the width of the lateral width of the tire on both sides of the body) can, do not need to consider the track.
- Q: What's the difference between a truck engine and a car engine?
- General truck engines, whether gasoline or diesel, have a longer piston stroke, and focus on low speed, high torque output, which is beneficial for heavy loads rather than high speed driving.Car engine piston stroke is shorter, focusing on high rotation, high horsepower output. It's good for high speed, not heavy haul.Broadly speaking, the difference between diesel engines and gasoline engines is the above two points.If you count the cost and practicality, can be large horsepower engine car is.
- Q: Is it okay to change the normal truck to the container?
- It is possible for ordinary freight cars to change boxes. Buy a vacuum box directly and press. A lot of people when this inspection put behind the box down, but not high, otherwise you will be fined.
- Q: What documents do you need for a pickup truck?
- Small trucks need certificates as follows:1, truck driver qualification certificate (for transportation)2, operation of the vehicle operating permit (for transportation)3, vehicle compulsory insurance (insurance company or some vehicles affiliated company will charge)4, the vehicle license (after buying a car home, there are traffic police vehicles)
- Q: How much is the water temperature of the truck?
- The normal temperature is the center of the needle, 90 degrees centigrade.
- Q: What are the European trucks?
- The trucks, which run on expensive European highways, form a beautiful landscape. The painting of many trucks is more than just a logo. It gives the impression that it is a work of art, a manifestation of personality, and a perfect combination of force and beauty.
