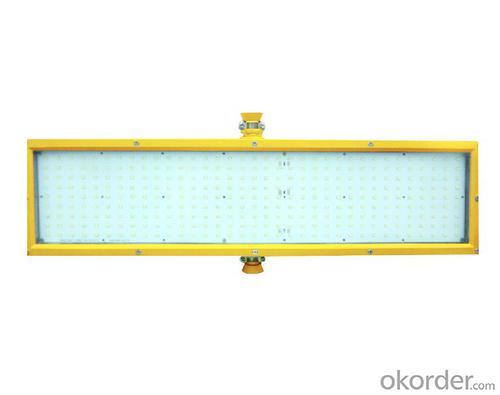

Mining Explosion Proof and Intrinsically Safe LED Roadway Lights(A)
- Ref Price:
-
- Loading Port:
- Tianjin
- Payment Terms:
- TT OR LC
- Min Order Qty:
- 1 pc
- Supply Capability:
- 300 pc/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Explosion proof, water proof, dust proof.
LED cold solid light source, power saving, high brightness, maintenance-free, green and environmental protection
Application
Be applicable to the explosive luminous environment like roadway, chamber in the coal mine, and the flammable and explosive places like oil exploration, oil refining, chemical and military industry, where is full of methane, coal dust or mixed explosive air, or harmful gas.
Adopt in-line die casting aluminum heat sink, high degree protection flameproof housing. Optimized structure design and sealing technology, the degree of waterproof & dustproof reach IP65 level. Be applicable to the explosive luminous environment like roadway, chamber in the coal mine, and the flammable and explosive places like oil exploration, oil refining, chemical and military industry.
Low energy consumption, high luminous efficiency, power consumption is only 20% of the fluorescent lamp’s with the same luminance.
Wide irradiation range, high Intensity of illumination.
Long service life, maintenance free, completely eliminate the hidden dangers caused by change light frequently, reduce the underground worker intensity.
Power saving. Save about 90% compared with the same brightness of the incandescent lamp.
Adopt wide voltage design (AC85-265V), effectively protect the lights, reduce the lighting flicker caused by the voltage change because of underground equipment's open & stop.
Raw Material: High quality Die-casting Aluminum
Tempered glass, Stainless steel bolts
Light source: Epistar
Drive: Domestic super Wide voltage range Constant-current constant-voltage power supply.
Light Size: 596x234x200mm
Weight: N.W: 7.5kgs G.W.: 8kgs
Package: Foam + Carton, 2pcs/carton
Carton Size: 715x515x245mm
Parameters | ||||||||||
Power (W) | Color temperature (K) | Illumination Lx(3m) | Operating Voltage (V) | Luminous Efficiency of Light Source(Lm/W) | Ex-mark | Protection class | Anti-corrosion class | Life (H) | Size (L*W*Hmm) | Cable entry |
15W~60W | 4500K~6500K | 50Lx~260Lx | AC85V~AV265V | 110~120Lm/W | Exd[ib]I Mb/ Exd[ib] II B T4 Gb | IP65 | WF2 | ＞50000 | 596*234*200 | M30x2 Φ8~10 |
>
- Q: Ordinary lighting rectifier and explosion-proof lamp rectifier can be used instead of the difference?
- It's a ballast, not a rectifier.General lighting ballasts and explosion-proof lamp ballasts can not be used in general.Because the installation size and parameters are not the same.The explosion proof lamp is usually isolated and explosion-proof. If the ballast is installed inside the isolation cover, there is no particular requirement for the ballast in theory.However, the internal temperature of the isolation cover is poor, so the environmental temperature index of the ballast is required. It is better to work at 50 or above.The so-called isolated explosion refers to the presence of flammable gas inside and outside the isolation hood, the internal deflagration, short circuit, arc and other accidents, the energy generated in the discharge process will not ignite the external combustible gas.
- Q: Explosion proof electric appliance unit is very much, how to judge its production aptitude how, is the business license that sees its only? Thanks for the reply, thanks!
- Determine its production qualificationYou have to inquire through the unit's product certification, whether you can check to get explosion-proof certification,There are a lot of electrical appliances do explosion-proof lamps, are OEM enterprises are false,As long as you query the certification of the unit, the enterprise is still qualified,
- Q: Why is the three proof lamp more expensive than the explosion-proof lamp?
- Three proof lampFallwaterproofdustproofExplosion proof lamps are only pieces, shocks, and sparks that prevent the lamp from exploding
- Q: After consultation with the Quality Supervision Bureau, in 2003 has canceled the explosion-proof lighting production license approval items
- Installation of electrical lighting - Installation of special lamps.
- Q: Do explosion-proof lamps, foreign trade companies need what certification?
- If the import business, the abroad lamp certificate into the domestic certificate; if it is to do export business, to have a foreign agent explosion-proof lamp certification, need help please message!From Nanyang Zhongtian explosion protection
- Q: Exd, II, C, T6, Gb and Exia, II, B, T2, Ga and Exia II, C, T4, which kind of explosion-proof grade is higher? Please sort 10I know the difference between flameproof and intrinsically safe, as well as the meaning of other characters. Just order and explain the reasons, thank you!
- Not intrinsically safe explosion-proof lamp, explosion-proof electrical is: ExiaIICT4 than ExiaIIBT2 high level. T is an explosion-proof electrical temperature group, T6, the maximum surface temperature is not more than 85 degrees, T4 is not more than 135 degrees centigrade, and T2 is not more than 300 degrees centigrade. Exia this type of relatively high levels can be used in Zone 0, zone 1, zone 2; flameproof D, can be used in zone 1, zone 2.
- Q: Transformer room lighting should adopt explosion-proof lamps and lanterns
- There is general relationship between the choice of lamps with lamp installation environment, such as explosive environment should be used (note that the explosion-proof explosion-proof lighting environment is not the same, the level of protection is not the same), moist environment can be used to waterproof and Dustproof lamp, outdoor lamp should be determined according to the requirements of the protection shell protection, emergency lighting shall be made of refractory glass etc..
- Q: What is explosion-proof lamps and lanterns engineering style?
- The explosion-proof lamp is used for dangerous places exist combustible gas and dust, to prevent the lamp may produce arc, spark ignition and high temperature surroundings of combustible gas and dust, so as to achieve the explosion-proof requirements, widely used in oilfield power plant chemical plant oil unit.
- Q: Do explosion-proof lamps require 3C certification?
- Three, low-voltage appliances (9 kinds)Low voltage electrical apparatusLow voltage electrical apparatusLeakage protection, circuit breaker (including RCCB, RCBO, MCB), low voltage switch, fuse (isolator, isolating switch, fuse box) and other circuit protection devices [Protector: limiter circuit protection, overcurrent protection, thermal protector, overload relay, low voltage electrical contactor, relay, motor starter (36V< & 1000V, voltage) other switch (switch, vacuum switch, pressure switch, proximity switch, foot switch, temperature switch, level switch, button switch, limit switch, micro switch, tumbler switch, temperature switch, limit switch, switch, automatic conversion switch, knife switch), other devices (Contactors and motor starters, signal lamp, auxiliary contact module, master controller, AC semiconductor motor controller and a start Low voltage switchgear assemblies.Four, small power motors (1 kinds), small power motorsFive, power tools (16 kinds)Drill (including impact drill), Electric Screwdrivers and impact wrenches, electric grinder, sander, circular saws, electric hammer (including electric), non flammable liquid electric gun, electric scissors (including double electric scissors, electric punching), tapping machine, reciprocating saws (including jigsaw, Dao Ju), inserted into the concrete vibrator, electric chain saw, planer, electric shears and electric shears, bakelite milling and trimming machine, electric stone cutting machine (including marble cutting machine)
- Q: How much is the voltage and current of jw7623/hz charger for marine King multi-function light proof explosion lamp?
- Ocean King multi-function light explosion proof lamp jw7623/hz charger voltage current isRated voltage: 3.7VRated capacity: 2.2AH
