LED Wall Washer Single Color IP66 24*3W

Ref Price:: $137.13 / pc

Loading Port:: Shenzhen

Payment Terms:: TT

Min Order Qty:: 50 Pcs pc

Supply Capability:: 100000 Pcs Per Month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

150W LED Street Lighting Road Lighting Public Lighting

LED High Mast Lighting Fixture,Golf Course Lamp,Square Lamp

Intelligent Controlled Street Light Solar

LED Wall Washer Single Color IP65 18W

LED Wall Washer RGB IP65 18W

LED Wall Washer Single Color IP65 18*3W

LED Wall Washer RGB IP65 18*3W

LED Wall Washer Single Color IP65 36*3W

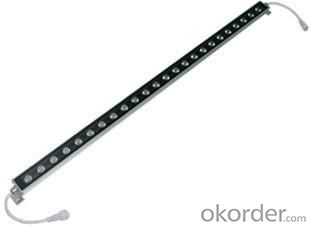

LED Wall Washer Single Color IP66 24*3W The main part of the product pressed with good quality of stainless steel.Sealed up with the toughened glass and silasticto, and internal silicone potting with good capacity of waterproof.Solid-state high-power LEDs, 3-watt.PMMA(optical grade acrylic plastic) lens.Built-in constant current driver ensures the lamp work steadily.3-core rubber cable of power supply is 1.5 mete.3-core silicone cable for signal input is 0.25 meter with waterproof male connector, and the other cable for signal output is female connector.General FeaturesThe working voltage is AC90-260v, 50/60Hz.The working temperature is -40~50Low luminous decay, 1% per 1,000 hours.The external control mode is DMX512 with color changes synchronously.Long life, working hours at least up to 30,000 hours.IP65-IP68.

Q: LED what's the wattage of the wall washer?: Small power wash wall lamp: use a small power chip beads, a 10W, 12W, 15W, M. The length of the wall washing lamp can be cut, and it will take as long as possible.

Q: Led why does the wall washing lamp come out in various colors?: It's made of 3 color LED, with an external controller that combines different colors

Q: LED how far can I wash the wall lamp?: General wall lamp can irradiate 1-9 meters, SMD beads power can achieve 10W, 12W, 15W, 18W, irradiation distance of 1-1.5 meters, the projection distance is 3 to 4 meters.

Q: What is wall washing lamp and why is it called wall washing lamp?: Parameters: now widely used LED wash wall lamp basically is made of 1W high power LED tube (each LED tube with a single lens made of PMMA high efficiency, its main function is the distribution of two LED tube light), a single line or multi line arrangement (Second Tier I classified as LED light), most of the LED wall washing lamp LED tube is a common radiator, and some manufacturers is a place of LED tube in a small radiator, the light angle are generally narrow (20 degrees), (50 degrees), width (120 degrees) three. At present, the high power LED wash wall lamp (narrow angle) of the farthest effective projection distance of 15-20 meters, the commonly used power is about 8W, 12W, 24W, 27W, 36W etc. several kinds of power forms, and their common dimensions are 300, 500, 600, 1000 etc, can according to the actual application of different The length and power density

Q: Can you tell me how to judge the quality of LED wall washing lamp?: Electrical testHigh voltage test according to GB7000 requirement test, qualifiedThe grounding test shall be tested according to the GB7000 requirementNo light is shiningThe spot has no overlap and so on. The light is even and soft3, packaging: refer to the light packaging quality evaluation criteria4, marking: refer to lamps labeling quality evaluation criteria5, appearance: refer to the appearance quality evaluation criteria of lamps and lanterns

Q: LED washing wall lamps and related lamps, how to choose good or bad?: The outdoor lighting is in a bad environment! The sealing ring (or glass glue, waterproof glue) and waterproof head must be tested. You might ask, "how do you experiment?" Tell you, these auxiliary materials have to be tested, installed on the lamp, put to high temperature 65 degrees, 72H, low temperature 15 degrees 72H, immersion 24H, and then put the high temperature 72H, after a total of these cycles. Just qualified!

Q: Led washing wall lamp, how much is it per meter?: Moreover, the wall washing lamp has the power and the small power to wash the wall lamp the minute, may revolve the bracket installment, the clip installation, uses the structure adhesive and so on the installment way.

Q: Is the power consumption of LED wall washing lamp high?: One of the reasons that LED wall washing products stand out in many products is that it consumes less power, saves resources and reduces expenditure economically. The main reason is that the internal current is a constant current during the manufacturing process. After using this current, no matter how long the lighting is used, there will be no more power consumption due to the increasing brightness, which is popular and willing to accept.

Q: I have a construction site. I don't know whether to use LED line lights or LED wall washing lamps. Where are the 2 differences between them?!: Indoor recommendations with LED lines for outdoor recommendations use wall wash lamps

Q: LED how to choose the wall washing lamp?: Wash wall lamp housing demand according to tile admit scale, the greater the number of watts, demand the radiator is bigger, the market of many low-end goods made of thin materials 36W, so reduce the cost, but the goods can not ensure the heat dissipation, so the speed of light lamps increase, affecting the use of lamps. Wall lamp lighting produced by colormax thick material tensile aluminum with excellent heat dissipation, abundant commodity to ensure outstanding, delayed decay, ensure that the quality of the goods. On the market, we can see from some types of this data thickness, such as 55677655, refers to the LED wall washing lamp shell cross-section width, height parameters. The bigger the number, the more heavy the shell of the wall washer, the better the heat. 7655 of the information must be more expensive than 5565.

With advanced sound production equipment, testing equipment for LED packaging device manufacturing base. Keep pace with world-class technology and management. Can meet the ISO9001: 2008 quality certification system for LM-80 testing standards, establish a strict quality control system and improve product testing process to ensure stable and reliable product quality.
