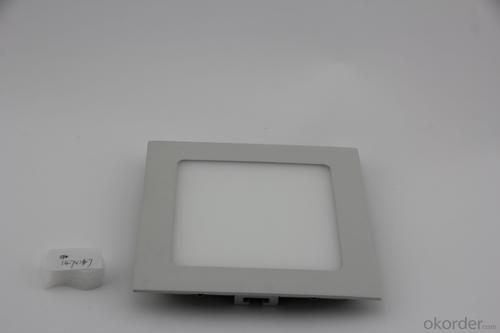

LED Panel Light Square SMD Chip 9W

Ref Price:: $6.25 / pc

Loading Port:: Shenzhen

Payment Terms:: TT

Min Order Qty:: 10 Pcs pc

Supply Capability:: 20000 Pcs Per Month pc/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

You Might Also Like

LED Panel Light Round SMD Chip 3W

LED Panel Light Round SMD Chip 9W

LED Panel Light Round SMD Chip 12W

LED Panel Light Round SMD Chip 15W

LED Panel Light High CRI Ultra Thin 600*600mm For Ceiling

LED Mini Panel Light Round Shape Dia-casting Aluminum

LED Super Slim Mini Panel Light Aluminum/ABS

LED Panel Light High CRI Ultra Thin 600*600 3Years Warranty

LED Panel Light Square SMD Chip 9W

Features:

1. Can replace traditional LED tube lights, no need for ballast and starter, reducing the rate of failure;

2. Turn on the light immediately, no flicker and no delay, no high-frequency noise;

3. Aluminum housing, resistant to damage and excellent heat dissipation, and recyclable;

4. Wide Voltage range, can work under low voltage, the brightness will not change with voltage fluctuation;

5. Great color rendering, color presentation is more realistic, more vivid, better light definition;

6. Long lifetime, lifespan is more than 50,000 hours;

7. Eco-friendly, No pollution of Lead and Mercury, Lower energy consumption and pollutants eliminated;

8. High luminous efficiency, save 60% electricity bill compared to traditional tube light.

Applications:

1. Hotels, Conference, Meeting rooms

2. Factories & Offices

3. Commercial Purposes

4. Residential/institution Buildings

5. Schools, Colleges & Universities, Hospitals

6. Other lighting use

Q:What is the light source of the LED panel light?: The LED panel light source is the LED chip. It is placed on the 2 side of the panel light, and the light is uniformly distributed to the whole light surface through the light guide plate on the back

Q:What is the structure of the smart LED panel lamp?: LED panel lamp is composed of an outer frame (with a fixed lamp body structure and heat dissipation function), PC cover (mask), LGP (light divergence uniform), diffusion plate (light diffusion), light source (light), power (low voltage current LED lamp cover (required), heat, dust barrier foreign) etc..

Q:What's the difference between the LED panel light and the LED ultra-thin panel light?: This is the concept of manufacturers in play.... We are doing the LED lamp, generally called panel light, but can be divided into two types, one is the lamp panel in real sense, it is the principle of LED lamp from the side and then through the light guide plate and the diffusion plate makes the role of the middle panel light, this is the so-called ultra thin panel lamp. Another can be said to be a pseudo panel, it is the LED lamp is evenly distributed on the front, and then directly onto the panel, which is called positive light, its thickness is much thicker than the first one. Generally speaking, generally speaking, panel lights refer to the first type, unless explicitly stated that they are positively glowing.

Q:What is the light guide panel of the LED panel lamp?: Usually aluminum Plexiglass。 About the LED panel light knowledge, please refer to Technology Co., Ltd. web site

Q:Decoration, living room and office, with LED tube or LED panel light?: Panel light. OK downlight. Our company is the production of LED downlight. On promotion. Think about it

Q:How is the indoor installation of the LED panel lamp convenient?!: 1, hanging: first in the LED panel lights back mounted on the suspension member, then connect the lanyard on it. Consumers must pay attention to ask, understand clearly hanging components is the manufacturer's standard parts or buy parts?.2, suction top type: first in the ceiling to play a few holes, and then LED panel light slide into the suction ceiling frame installed on the ceiling, fixed three sides. Then slide the panel light into it, and then screw the frame around the fourth edge. Convenient, simple and time-saving.3, embedded type: the first sheet metal groove is arranged on the ceiling, and then the bracket is fixed at the back of LED panel light pieces protruding outward, and then into the panel light, the sheet metal bracket and the ceiling of the anastomotic groove can be fixed on the ceiling. But because of the different thickness of the ceiling, it is necessary to adjust the height between the lamp face and the bracket, otherwise it will cause the LED panel lamp to be higher or lower than the ceiling surface. In general, suspension mounted LED panel lights are best for aquarium lighting, while ceiling mounted is the most common and easiest way to do so.

Q:Differences between office buildings, office lighting, LED panel lights and traditional lamps: Service life is different in lengthOffice, office lighting, LED panel light is environmental protection and energy saving. Compared with the traditional lamps and lanterns, the service life of the lamps and lanterns is much longer, but the service life of the LED panel lamps is long, and there is no accurate measurement.

Q:What is the voltage of the LED panel lamp 30W?: Is the input voltage or output voltage, the input voltage is generally 220V, the output of various brands and specifications are not the same, the general are DC60-90V, 300mA

Q:How to install the LED panel lamp, is there a installation instruction?: Stent typeFirst, make a few holes in the ceiling, then slide the LED panel light into the suction ceiling and install it on the ceiling. Fix the three sides. Then, turn the panel light into the fixed slide mounting box, slide in, and then fix the frame with the screws on the fourth edge. Convenient, simple and time-saving.

Q:How does the embedded LED panel light fit onto the ceiling?: What's the weight of a flat lamp? What spring cards do you use?

It is specialized in the production and sale of backlight manufacturers in product quality and quality have a great advantage. Produced an area of 2000 square meters, including color LED, CCFL backlight 10,000 clean room 380 square meters, LED side backlight module one hundred thousand 400 square meters clean workshop, monthly production reached 500,000 PCS.

1. Manufacturer Overview
Location	Shenzhen,China
Year Established	2011
Annual Output Value
Main Markets	Mid East；Western Europe
Company Certifications

2. Manufacturer Certificates
a) Certification Name
Range
Reference
Validity Period

3. Manufacturer Capability
a)Trade Capacity
Nearest Port	Shenzhen
Export Percentage
No.of Employees in Trade Department	20 People
Language Spoken:	Chinese
b)Factory Information
Factory Size:	Above 4,000 square meters
No. of Production Lines	About 6
Contract Manufacturing	OEM Service Offered；Design Service Offered
Product Price Range	Cheap
