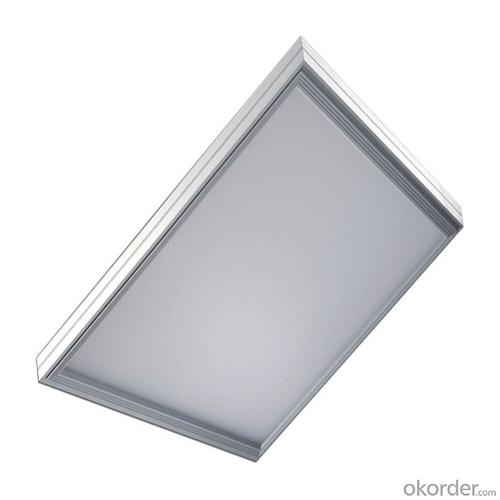

LED Panel Light Side Emitting Ultra-Thin

LED Panel Light Side Emitting Ultra-Thin System 1

LED Panel Light Side Emitting Ultra-Thin System 2

LED Panel Light Side Emitting Ultra-Thin

Ref Price:: $44.00 - 49.00 / unit

Loading Port:: China main port

Payment Terms:: TT or LC

Min Order Qty:: 20 unit

Supply Capability:: 2000 unit/month

Inquire Now

Add to My Favorites

OKorder Service Pledge

Quality Product, Order Online Tracking, Timely Delivery

OKorder Financial Service

Credit Rating, Credit Services, Credit Purchasing

Quick Details

Light Source:	LED	Item Type:	Panel Lights	LED Light Source:	San'an/Taiwan Epistar
Warranty(Years):	2	Input Voltage(V):	AC85-265V	Lamp Power(W):	36
Lamp Luminous Flux(lm):	2880	Lamp Luminous Efficiency(lm/w):	80	CRI (Ra>):	75
Color Temperature(CCT):	2700k-7000k	Working Temperature(℃):	-20 - 50	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum	IP Rating:	IP65	Certification:	CCC, CE, EMC, RoHS
Place of Origin:	Guangdong, China (Mainland)	Model Number:	E-XPY48W	Products Name:	LED panel light
Power:	36w/48w	Lighting Source:	SMD2835	Beam Angle:	120
Emitting Style:	Side Emitting	Power Factor:	0.6	Color Temperarture:	2700-7000k
Main Market:	Europe/Middle east	Warranty:	2years	Factory:	Henglan,Zhongshan,China(mainland)

Packaging & Delivery

Packaging Details:	Natrural white inner box and then standard export carton
Delivery Detail:	25days

Product Description

Factory direct high quality products square flat led panel ceiling ligh/led panel 600x600 with reasonable price from China

LED Pnale Light

LED Panel Lights are a stylish and economic lighting solution for offices and work space areas. They offer a flicker free instant start lighting solution that ensures comfortable working environment. They produce an even light without glare and are available in 4000K and 5700K. The 4000K option is recommended for office areas as when working with paper etc, it offers the best visual acuity without glare from the white surfaces while 5700K (daylight) is ideal for work areas i.e

Feature of our LED panel light:

1. Wide range of available voltage AC85-265v suite for different areas,isolation constant current diver with IC

2.Japan Mitsubishi Acrylic Light Guide Plate with laser dotting technology ensure the high light conducting efficiency and soft light distribution

3. Eco-friendly and energy saving 80%

4. Easy to install and maintain

5. Good heat dissipation,but low light decay

6. Long lifespan (more than50000hrs), low cost of maintenance.

7. SMD2835/SMD3528 chips with high lumen.

8. CE certificate and RoHS compliance.

9.Light decay less than 5% after 3 years' regular usage

Q: How is the indoor installation of the LED panel lamp convenient?!: 1, hanging: first in the LED panel lights back mounted on the suspension member, then connect the lanyard on it. Consumers must pay attention to ask, understand clearly hanging components is the manufacturer's standard parts or buy parts?.2, suction top type: first in the ceiling to play a few holes, and then LED panel light slide into the suction ceiling frame installed on the ceiling, fixed three sides. Then slide the panel light into it, and then screw the frame around the fourth edge. Convenient, simple and time-saving.3, embedded type: the first sheet metal groove is arranged on the ceiling, and then the bracket is fixed at the back of LED panel light pieces protruding outward, and then into the panel light, the sheet metal bracket and the ceiling of the anastomotic groove can be fixed on the ceiling. But because of the different thickness of the ceiling, it is necessary to adjust the height between the lamp face and the bracket, otherwise it will cause the LED panel lamp to be higher or lower than the ceiling surface. In general, suspension mounted LED panel lights are best for aquarium lighting, while ceiling mounted is the most common and easiest way to do so.

Q: What is the voltage of the LED panel lamp 30W?: The input voltage is 100-240 and the input frequency is 50/60

Q: How do you remove the LED panel light?: Look at the installation book, in turn, on the lineReminder: remove the lamp when power off, careful shock??To adopt Oh (V are your)

Q: Can LED panel lCan LED panel lamp be used in table tennis hall?amp be used in table tennis hall?: According to the provisions of the design standard of national building lighting illumination standard table tennis table: the project value for the training of 750lx; the game to reach 1000lx, LED because of its advantages of no delay, no noise, no stroboscopic, very suitable for table tennis hall of lighting, but if the venue space is too high, it is difficult to achieve LED panel lights standard illuminance value.

Q: What is the structure of the smart LED panel lamp?: LED panel lamp is composed of an outer frame (with a fixed lamp body structure and heat dissipation function), PC cover (mask), LGP (light divergence uniform), diffusion plate (light diffusion), light source (light), power (low voltage current LED lamp cover (required), heat, dust barrier foreign) etc..

Q: What's the difference between the LED panel light and the LED ultra-thin panel light?: This is the concept of manufacturers in play.... We are doing the LED lamp, generally called panel light, but can be divided into two types, one is the lamp panel in real sense, it is the principle of LED lamp from the side and then through the light guide plate and the diffusion plate makes the role of the middle panel light, this is the so-called ultra thin panel lamp. Another can be said to be a pseudo panel, it is the LED lamp is evenly distributed on the front, and then directly onto the panel, which is called positive light, its thickness is much thicker than the first one. Generally speaking, generally speaking, panel lights refer to the first type, unless explicitly stated that they are positively glowing.

Q: What is the light guide panel of the LED panel lamp?: The optical grade acrylic plate as basic raw materials, and then use the LCD panel and the backlight module of notebook computer display technology, through the light guiding points full of high light transmittance, the PC distribution guide dot design makes the LED panel light guide plate parts light converted into surface light source are light design and manufacture after molding.1, the light guide plate (light guide plate) is the use of optical grade /PC acrylic sheet, and then use high-tech materials with high reflectivity and absorption of light, the optical grade acrylic bottom with UV screen printed guide dot printing technology. The use of optical grade acrylic sheet drawing out the lights stay in optical grade acrylic sheet surface, when the light guide to each spot, the reflected light will spread to all angles, and then destroy the reflection condition by the light guide plate is injection.2, through the various density, different sizes of light guide point, can make the light guide plate uniform luminescence. The purpose of the reflector is to reflect the light exposed on the bottom back into the light guide plate to improve the use efficiency of the light. Under the same area of illumination, the luminous efficiency is high and the power consumption is low. Single side micro array light guide plate is usually made by injection molding.

Q: What material does the LED panel light need, such as the light guide plate or something?: The light guide plate (light guide plate) is the use of optical grade /PC acrylic sheet, and then use high-tech materials with high reflectivity and absorption of light, the optical grade acrylic bottom with UV screen printed guide dot printing technology. The use of optical grade acrylic sheet drawing out the lights stay in optical grade acrylic sheet surface, when the light guide to each spot, the reflected light will spread to all angles, and then destroy the reflection condition by the light guide plate is injection.

Q: How can I change the lamp of integrated ceiling lamp in the kitchen? I want to change to LED panel lamp: What kind of light is it? If it is a round of ordinary incandescent lamp, the lamp basically is round, there are several clips on the lampshade, is directly removed, the Mai Rui technology microwave induction lamp mounting panel back can, with automatic induction switch lamp function,

Q: LED panel light beads is used which beads?: If you require to price point, you can select 3014 beads, the general utility and home lighting. If you require comprehensive quality and price are relatively high point, you can choose 5630 beads, the general utility and commercial lighting.
