Product Description

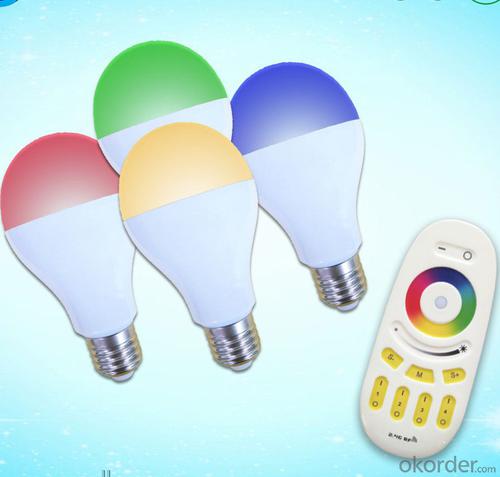

This product is a high-performance replacement type RGB+W LED bulb, Remote control for wireless control, With 64W colors and 9 kinds of dynamic change models for choice, at the same time has the function of illumination of white light. Using LED light source, its power consumption is 20% of the traditional incandescent lamp, the service life is energy-saving lamp more than 10 times. Easy installation and use simple at the same time, security and stability, achieve intelligent illumination lamps and lanterns, both energy saving and environmental protection.
The lamp body is made of aluminum plastic forming, the greatest degree to solve the problem of the high power LED heat dissipation. The lampshade adopts imported polymer nano materials, light transmittance as high as 85% above, homogeneous soft light output. Control ways, using the 2.4G high frequency wireless transmission technology, low power consumption, remote control distance is far, strong anti-jamming capability, high speed of air communication and so on. The appearance remote control is fashionable and beautiful. Function is practical and simple controls, using capacitive touch design, has the rich that move light, color mixing function. For household lighting, scene layout it adds a different exotic atmosphere.
Technical Parameters
Light bulbs parameters:
content | parameter | content | parameter |
Supply Voltage | AC86-265V 50/60HZ | Working temperature | -40℃-60℃ |
Power consumption | 9W | Power factor | >0.65 |
White light color temperature section | WW（2700-3500K）\ CW（6000-6500K） | luminous flux | 810LM |
Color rendering index | ＞80 | Light angle | 140° |
White LED specifications | 5730 （0.5W/each） | RGB LED specifications | 5050（1.5W/each） |
External dimension | Φ68*120mm | The service life | 50000H |
The material | Plastic cover the aluminum +The PC cover | Lamp holder specifications | E27 E26 B22 |
Application places | Household lighting, commercial lighting, KTV, bar, Can also be mounted on a chandelier, floor lamp, desk lamp, etc | ||
The remote control parameters：
content | parameter | content | parameter |
Supply Voltage | 3V，2*AAA battery | Transmission power | 6db |
Transmission frequency | 2400-2483.5MHz | Standby power consumption | 10uA |
Modulation method | GFSK | Remote control distance | 20-30m |
External dimension | 120×52×20mm |
External dimension
The function of remote control
“M” dynamic mode table:：
NO. | Mode | Brightness state | Speed state |
1 | 7 colors fade | adjustable | adjustable |
2 | White fade | adjustable | adjustable |
3 | Red green blue white 4 colors fade | adjustable | adjustable |
4 | Red green blue white 4 colors jump | adjustable | adjustable |
5 | 8 colors jump（7 color+white） | adjustable | adjustable |
6 | Red light fade and flash | adjustable | adjustable |
7 | Red light fade and flash | adjustable | adjustable |
8 | Red light fade and flash | adjustable | adjustable |
9 | Full automatic play mode | adjustable | adjustable |
Application scenarios
- Q: LED what is the glue between the aluminum base of the bulb and the cooling aluminum?
- A lot of sticky glue can live it yourself have not tried to guess 502 good brothers of this kind of glue can be, but do not know good heat resistance and high power LED heat is still very large, if you are a small power never mind
- Q: Why is 3W's LED plastic bulb so cheap on the market? Is there any drawback to the price difference between aluminum and aluminum?
- The LED price of aluminum alloy 3W is probably about 30.
- Q: How to choose the bulb power?
- Obviously, the designer doesn't want the ball lights to work at rated current, but there is a margin, so the light bulb will work more reliably. Because of the constant current source, current of each lamp is not 30mA, but 330mA/13=25mA, of course, the brightness of the lights will be smaller.
- Q: What are the driving IC used in LED bulb?
- Commonly used LED driver is based on the number of different W set, and now out of the drive program are quite a lot, according to customer requirements will also limit the number of different drivers IC.
- Q: In a bulb, the ambient temperature of the LED is LED, the temperature of the air in the bulb, or the temperature of the aluminum substrate
- The lamp is normal body temperature measurement temperature lamp, lamp heat sink temperature is the key, if the heat do good, heat sink temperature is close to the junction temperature, but the temperature are generally measured lamp pin temperature, plus a rise coefficient estimation of heat sink temperature, so as to estimate. The temperature of the lamp. The temperature of the aluminum substrate and the heat sink is relatively surface, and the superficial and relatively useful temperature depends on the junction temperature, which is related to the life of the LED. So the temperature near the pin or heat sink is more realistic.
- Q: What are the requirements of the LED series inspection specification for bulb bulbs?
- Anti torque test is carried out using only suitable for torque meter, torque test, lamp holder should be firmly bonded on the lamp or lamps used to purchase spin spin out parts, E26 and E27 for 3N*m.
- Q: What advantages does LED bulb replace energy saving lamp?
- The response time is fast, the energy saving lamp is millisecond, and the LED light is nanosecond
- Q: LED what does "A60" mean by bulb 60? And what does "MR16" mean?
- MR is a reflector that is represented by a plurality of reflector groups, and 16 represents the maximum outer diameter of 1/8*16*25.4=50
- Q: What's the difference between a glass cap for a bulb and a PC hood?
- 1, impact strength comparisonPC and glass is the biggest difference resistance shock, PC is transparent plastic, the most resistant to impact, smashing not broken.Similarly, PC is 200-300 times the impact resistance of glass. PC is 30-50 times the impact strength of PMMA acrylic.
- Q: What does "A19" mean in LED A19 bulb?
- A represents the bubble type, A hemisphere bubble 19, and the back figure indicates the bubble size (mm in diameter)
