Hanger Bridge Crane Double Beam Overhead Crane
- Ref Price:
-
- Loading Port:
- Shanghai
- Payment Terms:
- TT OR LC
- Min Order Qty:
- 1 unit
- Supply Capability:
- 30 unit/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like

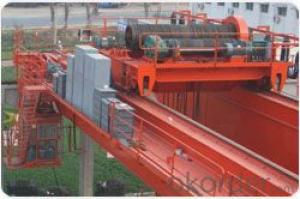

Hanger bridge crane is the widely used hoisting machinery currently.It is mainly comprised of box-shaped bridge,crane crab,trolley travelling mechanism and electric control system.The load handing device is the hook.
On the girder laid rails for crane crab to transversely move.The girder is weld with the box-shaped end girder.At the middle of the end girder are joints which are fastened with bolts for fragmented transportation of bridges.The platform is used to place trolley travelling mechanism,electric equipment and used for repair.
Features:
1.Weight overload protection device;
2.Top quality polyurethane buffer;
3.Crane travelling limit switch and lifting limit switch;
4.Voltage lost protection function,when power is failure then it needs reset all function to start working;
5.Emergency stop system,in case of emergency,the operator could use emergency stop button to cut off power and stop the crane operation immediately to protect human and relevant property;
6.Current overload protection function;
Technical Specification:
Lifting Weight(t) | 5, 10, 16/3.2, 20/5, 32/5, 50/10 | 75/20, 100/20, 125/32, 160/50, 200/50, 250/50 | 300/40, 350/75, 400/80, 450/80 | |
Span(m) | 10.5-31.5 | 13.5-31.5 | 17-22 | |
Max. Lifting Height | Main Hanger | 20 | 22 | 24 |
Auxiliary | 22 | 22 | 32 | |
Steel Track Recommended | 43kg/m or QU70 | QU100 | QU120 | |
Working duty | A3- A7 | |||
Voltage supply | 380v, 50hz, 3-phase or as your requirements | |||
Working temperature | -10℃-- 40℃ | |||
