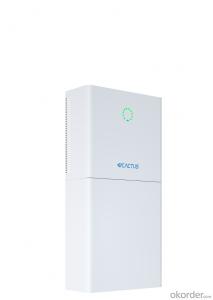

Factory price 5kw inverter and 10kwh lithium-ion battery all in one storage energy system
- Ref Price:
-
- Loading Port:
- SHANGHAI
- Payment Terms:
- TT OR LC
- Min Order Qty:
- 50 pc
- Supply Capability:
- 5000 pc/month
OKorder Service Pledge
Quality Product, Order Online Tracking, Timely Delivery
OKorder Financial Service
Credit Rating, Credit Services, Credit Purchasing
You Might Also Like
Specification
NO. of MPPT Trackers:
2
NO. of Strings per MPPT Tracker:
1
Battery Voltage Range:
204.8V, 409.6V
Inverter Capacity:
3.6kw, 4.8kw, 5kw, 6kw
Inrush current:
16 .a.c.A, 11.3us
Rated Voltage:
220/230/240
Battery Cycling times:
6500
Specification
| Model | WH-SPHA3.6H-5.12KWh WH-SPHA3.6H-10.24KWh | WH-SPHA4.6H-5.12KWh WH-SPHA4.6H-10.24KWh | WH-SPHA5.0H-5.12KWh WH-SPHA5.0H-10.24KWh | WH-SPHA6.0H-5.12KWh WH-SPHA6.0H-10.24KWh |
| MMPT Voltage Range | 100-550V | |||
PV Input | ||||
| Max.DC Input power(w) | 4800 | 6200 | 6650 | 8000 |
| NO.of MPPT Trackers | 2 | |||
| Battery Model | WH-BXB5.12 | WH-BXB10.24 | ||
| Battery Capacity | LFP5.12KWh | LFP10.24KWh | ||
| Battery Voltage Range | 160-227.2 | 320-454.4 | ||
| Max.charge/discharge current | 25/25 | |||
| Cycling times | 6500 | |||
| AC Input/Output | ||||
| Rated output Power | 3600 | 4600 | 5000 | 6000 |
| Rated Voltage(V) | 220/230/240 | |||
| Rated Frequency | 50/60 | |||
| EPS Output | ||||
| Max.output power | 3600 | 4600 | 5000 | 6000 |
| Rated Voltage | 230V | |||
| Efficiency | ||||
| PV Max. Efficiency | 97.6% | |||
| Protection | ||||
| DC isolation protection | yes | |||
| Over/under voltage protection | yes | |||
| Surge protection | yes | |||
| Over heat protection | yes | |||
| General Data | ||||
| Dimension | ||||
| Net weight | ||||
| Gross weight | ||||
| BMS communication interface | ||||
| Ingress protection | IP65 | |||
| safety and approvals | ||||
| Safety | IEC62040.1:2019 IEC 62109-1&-2 IEC62619 UN38.3 IEC60730-1 | |||
| EMS | EN IEC 61000-6-2:2019 EN IEC 61000-6-3:2021 | |||
Our company
Application
Certificates
Our company
- Q: How is the capacity of the battery defined?
- The capacity of the battery unit is AH (safety) is the product of current and time.
- Q: What is the difference between a maintenance-free battery and a conventional battery?
- Different materials will produce a different phenomenon: the traditional battery in the course of the use of the phenomenon of liquid reduction occurs, because the antimony on the grid will pollute the sponge on the negative plate of pure lead, weakened after the full charge of the battery Electromotive force, resulting in excessive decomposition of water, a large number of oxygen and hydrogen, respectively, from the positive and negative plates to escape, so that the electrolyte reduced. With calcium instead of antimony, you can change the fully charged battery back electromotive force, reduce the overcharge current, liquid gasification rate decreases, thereby reducing the loss of electrolyte.
- Q: What are the technical parameters of the battery?
- Battery capacity is defined as ∫ t0tdt, theoretically t can be infinite, but in fact when the battery discharge is lower than the termination voltage continues to discharge, which may damage the battery, so t value is limited, the battery industry, in hours (h) Battery sustainable discharge time, feel the C24, C20, C10, C8, C3, C1 and other nominal capacity value.
- Q: How to determine the battery is good or bad?
- Instrument test: the general use of battery discharge tester, the test instrument two positive and negative clamp were holding the battery positive and negative electrodes, press the test button to observe the test instrument instructions.
- Q: What are the hazards of battery over discharge?
- Excessive discharge can seriously damage the battery's electrical performance and cycle life.
- Q: Maintenance-free battery how to detect it?
- When using a maintenance-free battery, it is easy to think that maintenance-free is the idea that no maintenance is required. Maintenance-free Although maintenance costs and times can be reduced, but for the appearance of the clean-up is essential, so that "maintenance-free" more point to the battery inside.
- Q: What battery does the van use?
- The most obvious feature of lead-acid batteries is the top of the plastic cover can be unscrewed, there are ventilation holes above. These fillers are used to fill pure water, check the electrolyte and the use of exhaust gas. In theory, lead-acid batteries need to check the density of each electrolyte and the level of liquid, if there is a need to add distilled water. But with the upgrading of battery manufacturing technology, lead-acid battery development for the lead-acid maintenance-free batteries and colloidal maintenance-free batteries, lead-acid batteries do not need to add electrolyte or distilled water. Mainly the use of positive electrode to produce oxygen can be absorbed in the negative oxygen cycle, to prevent water reduction. Lead-acid water batteries are mostly used in tractors, tricycles, car start, etc., and maintenance-free lead-acid battery wider range of applications, including uninterruptible power supply, electric vehicle power, electric bicycle batteries. Lead-acid batteries according to the application needs to be divided into constant current discharge (such as uninterruptible power supply) and instantaneous discharge (such as car to start the battery).
- Q: What are the advantages of maintenance-free batteries?
- Maintenance-free battery using lead-calcium alloy grille, the amount of water generated when charging less water evaporation is low, with the shell with a sealed structure, the release of sulfuric acid gas is also very little, so with the above advantages.
- Q: The role of the battery?
- Battery is a kind of battery, its role is to be able to save the limited power, in the right place to make 6v4ah emergency light battery. Its working principle is to convert chemical energy into electricity.
- Q: How does the battery increase the voltage?
- You can use the same battery in series, with 5 12v battery in series becomes 60v, if you need the current is relatively small, you can use DC-DC module to 12v voltage rise to 60v.
