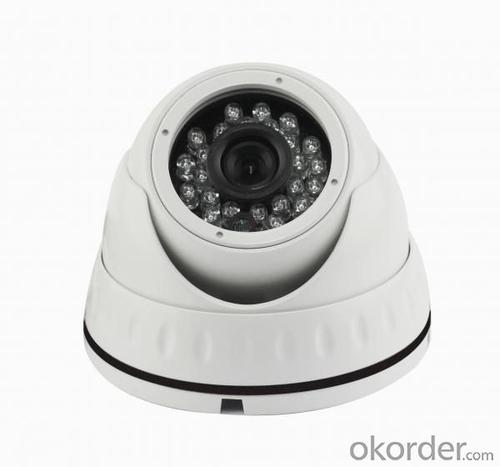

Description of Factory Best Price Dome Camera
| Model | CMAX-342H | CMAX-348H | CMAX-354H | CMAX-365H | |
| Image sensor | 1/3 SONY CCD | ||||
| Pixel | PAL | 500(H)* 582(V) | 720(H)* 540(V) | 752(H)* 582(V) | 976(H) x 582(V) |
| NTSC | 510(H)* 492(V) | 768(H)*492(V) | 768(H)* 596(V) | 976(H)x 494(V) | |
| Resolution | 420TVL | 480TVL | 540TVL | 650TVL | |
| OSD menu | NO | YES | |||
| Video output | 1.0VP—P/75Ω | ||||
| White balance | auto | ||||
| Gain control | auto | ||||
| Backlight compesation | auto | ||||
| Electronic shutter | 1/50(1/60)～1/120,000s | ||||
| Gamma correction | 0.45 | ||||
| Sync system | internal | ||||
| S/N radio | >=48dB | >=52dB | |||
| Minimun Illumination | 0.1LUX | ||||
| Operation lens | standard:6mm operation :3.6、8mm lens | ||||
| Supplied voltage | DC 12V,1000mA | ||||
| Working temperature | -10~60 ℃ | ||||
- Q: Wireless micro-surveillance camera how to see what to shoot
- If it is with memory, then the memory card can be placed on the card reader to the computer to play, if there is no memory, then there is a receiver, the receiver connected to the hard drive will receive the signal stored in the hard drive, Can be played through the hard drive on the monitor.
- Q: Monitor how the camera is connected
- 3. How to use the network cable to monitor the camera to save costs. Twisted pair transmitter generally refers to the use of cable to transmit video equipment, twisted pair transmission using differential transmission principle, the video signal will be converted into the same amplitude, the opposite polarity of the video signal, through the twisted pair transmission, The two ends of the opposite side of the video signal subtraction into a normal video signal, it can effectively suppress common mode interference, even in strong interference environment, its anti-jamming capability is better than coaxial cable, and through the Video signal processing, the transmission of the image signal than the coaxial cable is clear, the same network cable will not interfere with each other.
- Q: Monitor the use of the camera
- Depends on what you use, the use of more than 1. to prevent the occurrence of traffic accidents. For example, on the highway if there is no monitoring of the camera monitoring, some people will drive speeding, resulting in traffic accidents, which will
- Q: How to connect a hard disk video recorder to a computer
- (3) hard disk video recorder itself is a separate recording, operation and other monitoring functions of the host, do not need to connect with the computer. Because the hard disk video recorder is a separate function of the host, even with the computer connection, the computer host is open, the DVR can be normal video. Now the video recorder basically support network access, the video recorder and computer network cable docking, install the CMS software or through the browser to access the IP address of the video recorder can play the recorded video recording.
- Q: Will the video surveillance camera screen will jump out of this camera settings like the option?
- It should be accidentally transferred out of the camera settings menu, if it is, then select the corresponding camera, and then exit the menu
- Q: Monitor the farthest distance from the camera can be far, which manufacturers out
- The effective distance of the surveillance camera is determined by the lens focal length used, and there is no direct relationship with the manufacturer. Surveillance cameras on the market effective monitoring distance is generally in the five meters to 150 meters.
- Q: What is the effective range of infrared surveillance cameras?
- 6 mm more than a narrow angle lens, the general effective distance is about 100 meters. And some 25 mm is about 150 meters, if the high-speed laser PTZ machine can reach 300 meters of infrared distance, but this cost is very high, about 13,000 or so, commonly used lens general angle is as follows: 2.8mm 101 ° 3.6 Mm 83 ° 4mm 76 ° 6mm 53 ° 8mm 35 ° 12mm 28 ° 16mm 21 ° 25mm 13 ° 1 / 3CCD and 1/4 CCD angle difference around 20 ° Hope to help you.
- Q: Is there a surveillance camera that can be plugged in
- Oh, the first kind of camera is generally by the lens, image sensor, analog / digital converter, image control And other parts of the composition, if the audio function, then, coupled with the sound collection, processing and transmission components.
- Q: Monitor the camera 1 road 4 what is the difference
- Very simple This is for the camera's hard disk video recorder to the general are at least 4 Road 8 Road 16 Road 32 Road, a camera all the way, there are 16 points can be connected to 16 points is 16 cameras.
- Q: How to install a surveillance camera
- 2. For the first time, the system may search the driver to install, free of charge can be identified, can not help but may also download the file automatically install the driver, the next time you insert the time will be much better.
