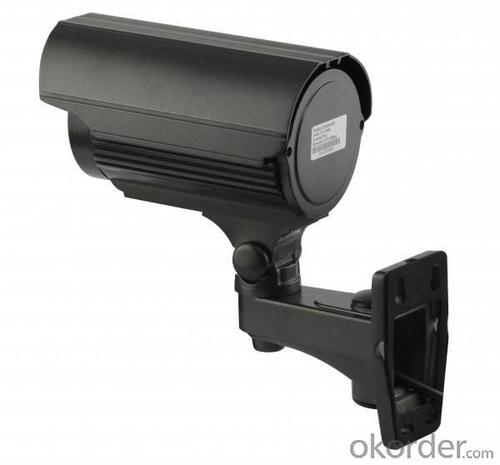

650TVL IR Array Waterproof Camera
- Ref Price:
-
- Loading Port:
- China Main Port
- Payment Terms:
- TT or L/C
- Min Order Qty:
- 100pcs pc
- Supply Capability:
- 10,000pcs per month pc/month
OKorder Service Pledge
Quality Product, Order Online Tracking, Timely Delivery
OKorder Financial Service
Credit Rating, Credit Services, Credit Purchasing
You Might Also Like
Packaging & Delivery
| Packaging Detail: | Neutral color box |
| Delivery Detail: | 7-10 days after getting payment money |
Description of 650TVL IR Array Waterproof Camera
| Model | CMAX-642S-RA60 | CMAX-648S-RA60 | CMAX-654S-RA60 | CMAX-665S-RA60 | |
| Image sensor | 1/3 SONY CCD | ||||
| Pixel | PAL | 500(H)* 582(V) | 720(H)* 540(V) | 752(H)* 582(V) | 976(H) x 582(V) |
| NTSC | 510(H)* 492(V) | 768(H)*492(V) | 768(H)* 596(V) | 976(H)x 494(V) | |
| Resolution | 420TVL | 480TVL | 540TVL | 650TVL | |
| OSD menu | NO | YES | |||
| Video output | 1.0VP—P/75Ω | ||||
| White balance | auto | ||||
| Gain control | auto | ||||
| Backlight compesation | auto | ||||
| Electronic shutter | 1/50(1/60)～1/120,000s | ||||
| Gamma correction | 0.45 | ||||
| Sync system | internal | ||||
| S/N radio | >=48dB | >=52dB | |||
| IR led | Build in 2pcs powerful IR array leds | ||||
| view distance | 60m | ||||
| Minimun Illumination | 0LUX（IR ON） | ||||
| Operation lens | 8mm F1.2 big lens; Options: 6mm, 12mm, 16mm (optional) | ||||
| Protection level | IP65, Side open housing waterproof design | ||||
| Supplied voltage | DC 12V,1000mA | ||||
| Working temperature | -10~60 ℃, support heater and fan | ||||
- Q: What is the meaning of the high definition and standard definition of the surveillance camera?
- Camera is divided into ordinary camera (standard definition) and high-definition camera, standard definition camera is the physical resolution of 720P in a video format, 720P refers to the vertical resolution of the video to 720 lines progressive scan, the current standard definition In about 400 lines.
- Q: Monitor the camera's focal length how to choose?
- Third, because the lens focal length and horizontal perspective is inversely proportional, so both want to see far, want to see wide and clear, it can not be achieved at the same time. Each focal length of the lens can only be in a certain range to achieve the best monitoring effect, so if the monitoring of the distance and a larger range, it is best to increase the number of cameras, or the use of electric zoom lens with PTZ installation , Of course, this for the civilian use, some expensive, and practical will not increase greatly.
- Q: 20 meters away with the number of mm monitor camera lens appropriate?
- According to the imaging principle, the smaller the focal length, the wider the field of view, but the distance is not clear. The larger the focal length, the narrower the field of view, but the longer the distance will be clearer.
- Q: Do i have a surveillance camera and a computer? Can the house be installed?
- Analog camera can not, digital can
- Q: Office area monitoring camera how to choose?
- 1, because the hemispherical can be ceiling on the ceiling, more beautiful
- Q: What color is the monitor when the camera is turned on?
- You should be equipped with infrared camera infrared camera infrared light with LED lights and photosensitive resistors, when the light is lower than the infrared light is lower than the minimum illumination of the infrared light when the infrared light will open, most of the red, there are White light and no red light at night no light, the specific and the relationship between the wavelength of infrared light.
- Q: What is the meaning of the camera function heartbeat?
- In order to ensure that the heartbeat mechanism is in contact with the monitoring center when idle, a heartbeat mechanism based on the network and the host load is to use the information parameters in the network system to establish a mechanism for sensing the current network and The load condition of the host and dynamically adjusts the heartbeat mechanism of the heartbeat transmission cycle in real time according to the load condition so as to speed up the node fault detection system when the system resources are not occupied too. The "heartbeat" function is mainly used for the joint system function Of the monitoring and to achieve some of their own functions automatically switch.
- Q: The working principle of the camera with infrared light
- Infrared emission diode (IR LED) infrared lamp principle is: by the infrared light-emitting diode matrix composed of light. Infrared emission diode from the infrared radiation efficiency of high materials (commonly used gallium arsenide GaAs) made PN junction, plus forward bias voltage to the PN junction injection current excitation infrared light. Spectral power distribution for the central wavelength of 830 ~ 950nm, half-peak bandwidth of about 40nm or so, it is narrowband distribution, for ordinary CCD black and white camera can feel the range. The emission power of the infrared light emitting diode is expressed by the irradiance μW / m2. The maximum radiation intensity of the infrared diode is generally in front of the optical axis and decreases with the increase of the angle between the radiation direction and the optical axis. The radiation intensity is 50% of the maximum value of the angle is called the half intensity radiation angle, that is, half power angle. The radiation angle of the infrared light emitting diodes of different packaging process models is different.
- Q: Monitor 32 video recorders how to take 80 way camera
- If you do not require the picture quality can be used to split the screen to the four screen into a road inside, reasonable arrangements can also see more than 80 cameras, but the video is four pictures can not be a separate screen.
- Q: A camera for an hour how much space
- Depends on your video recorder video format is CIF or D1
We have strong technical supports and qualified professionals. Our professionals have advanced technical and interpersonal skills, guaranteeing the reliable quality, improvement and innovation of our products. We welcome customers at home and abroad to visit us for guidance and business negotiation to create a brilliant future!
1. Manufacturer Overview
| Location | Guangdong,China |
| Year Established | 2011 |
| Annual Output Value | US$10 Million - US$50 Million |
| Main Markets | North America South America Eastern Europe Southeast Asia Africa Mid East Eastern Asia Western Europe |
| Company Certifications | CE；Rosh；ISO 9001:2000 |
2. Manufacturer Certificates
| a) Certification Name | |
| Range | |
| Reference | |
| Validity Period |
3. Manufacturer Capability
| a) Trade Capacity | |
| Nearest Port | SHENZHEN,GUANGZHOU,SHANHAI |
| Export Percentage | 71% - 80% |
| No.of Employees in Trade Department | 21-50 People |
| Language Spoken: | English, Chinese, Spanish, German, French, Russian, Italian |
| b) Factory Information | |
| Factory Size: | 1,000-3,000 square meters |
| No. of Production Lines | 6 |
| Contract Manufacturing | OEM Service Offered Design Service Offered Buyer Label Offered |
| Product Price Range | Low and/or Average |
