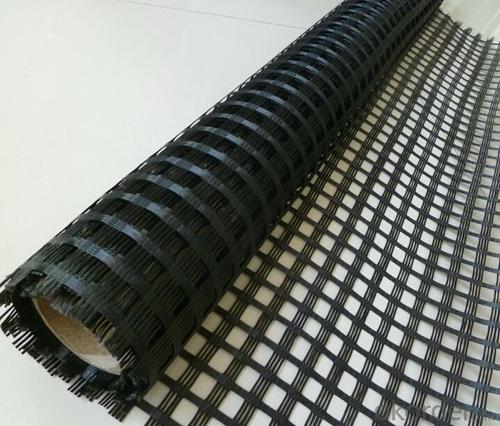

Fiberglass Geogrid/Polyester Geogrid for Slope And Retaining Wall Reinforced
- Loading Port:
- Qingdao
- Payment Terms:
- TT or LC
- Min Order Qty:
- 5000 m²
- Supply Capability:
- 1000000 m²/month
OKorder Service Pledge
OKorder Financial Service
You Might Also Like
Fiberglass Geogrid
1.Description of Fiberglass Geogrid
CMAX fiberglass geogrid is made from glass fiber by weaving technology and coating treatment.
2.Specification of Fiberglass Geogrid
Tensile Strength: 25-25KN; 30-30KN; 50-50KN; 80-80KN; 100-100KN; 120-120KN;
Road Size: 3.95x100m; as customer required;
3.Technical Data Sheet of Fiberglass Geogrid
Item | CMAX30-30 | CMAX50-50 | CMAX80-80 | CMAX100-100 | CMAX120-120 | CMAX150-150 | |
Mesh Size(mm) | 25.4 x 25.4 or 12.5 x 12.5 or 50.8x 50.8 | ||||||
Breaking strength | Warp direction | 30 | 50 | 80 | 100 | 120 | 150 |
Across warp | 30 | 50 | 80 | 100 | 120 | 150 | |
Elongation at break % | Warp direction | 4 | |||||
Across warp | 4 | ||||||
Thermal tolerance (℃) | -100 ~280 | ||||||
Width(m) | 6 |
4.Property of Fiberglass Geogrid
1). High strength, low elongation;
2). Heat-resistant, high modulus.
3). Light weight, good flexibility.
4). Anti-erosion, long life time.
5.Application of Fiberglass Geogrid
1). Roadbed reinforcement, prevent road surface crack.
2). Road reconstruction
3). Soft soil reinforcement, improve road whole bearing capacity and prevent crack.
Polyester Geogrid
1.Description of Polyester Geogrid
CMAX polyester geogrid is made from polyester fiber by weaving technology after gummed processing.
2.Specification of Polyester Geogrid
Tensile Strength: 25-25KN; 30-30KN; 50-50KN; 80-80KN; 100-100KN; 120-120KN; 150-150KN; 200-200KN;
Road Size: 3.95x100m; as customer required;
3. Technical Data Sheet of Polyester Geogrid
Item | Unit | Index | ||||||||||||||||||||||
Tensile Strength | Warp | KN/m | 55 | 80 | 100 | 120 | 150 | 200 | 300 | 400 | 600 | 800 | 1200 | |||||||||||
Weft | KN/m | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 50 | 50 | 100 | 200 | ||||||||||||
Elongation | % | 13 or 10 | ||||||||||||||||||||||
Grid size | Mm | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||||||||||||||||
Width | M | 2 or 4 or 5.2 or 6 | ||||||||||||||||||||||
Item | Unit | Index | ||||||||||||||||||||||
Tensile Strength | Warp | KN/m | ||||||||||||||||||||||
Weft | KN/m | |||||||||||||||||||||||
Elongation | % | 13 or 10 | ||||||||||||||||||||||
Grid size | Mm | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||||||||||||||||
Width | m | 2 or 4 or 5.2 or 6 | ||||||||||||||||||||||
4. Property of Polyester Geogrid
1). High tensile strength
2). Low elongation
3).Anti-erosion, anti-aging
4).Good affinity with base material
5). Light weight, water drainage
5.Application of Polyester Geogrid
1). Roadbed reinforcement in highway, railway and municipal road.
2).Reinforcement and separation in dam and river, improve soft soil bearing capacity and stability.
3).Roadbed slope reinforcement, retaining wall renforcement.
FAQ
We have organized several common questions for our clients,may help you sincerely:
Q: How about your company?
A:Our company are one of the largest geosynthetic products supplier in the world.We have the products experience more than 20 years.Already export to USA/Germeny/Australia/Zambia/Brazil etc.more than 20 countries.Almost 10years.Our products including Geocell/Fiberglass Geogrid/Geomembrane/Geotextile/Geonet etc.
Q.Does your products have good qualitity?
A:Yes,we have do many big projects such as the 2008 Beijing Olympic BIRD NEST. Divert water from the south to the north project. And our products have CE certificate also.
Q:How long can we receive the products after purchase?
A:In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 15-20 working days can be delivery.
Q: what other products can you supply?
A: pp nonwoven geotextile, pp woven geotextile, pp geogrid, HDPE geogrid, geomembrane, etc.
- Q:How do geogrids improve the performance of reinforced slopes?
- Geogrids improve the performance of reinforced slopes by providing additional strength and stability to the soil. They are placed within the soil layers and act as a reinforcement element, distributing the loads more evenly and reducing soil movement. This helps to prevent slope failure, increase the overall bearing capacity, and enhance the long-term durability of the slope.
- Q:How do geogrids enhance the performance of geosynthetic clay liner erosion control blankets?
- Geogrids enhance the performance of geosynthetic clay liner erosion control blankets by providing additional reinforcement and stability. They help to distribute the load and prevent the geosynthetic clay liner from shifting or sliding, thereby increasing its resistance to erosion.
- Q:Geogrid test items: what is the point of the joint point?
- The conventional test items of geogrid are tensile strength, elongation, and welding point peeling force.So it is not feasible for you to put the waterproof material on the geogrid.
- Q:How do geogrids improve the stability of shorelines?
- Geogrids improve the stability of shorelines by providing reinforcement and preventing soil erosion. They are typically installed beneath the surface of the shoreline, creating a strong and stable foundation. Geogrids help distribute the load of the soil and wave forces, reducing the risk of slope failure or collapse. Additionally, they enhance the soil's resistance to erosion caused by waves, currents, or wind, ultimately preserving the shoreline's integrity and preventing further degradation.
- Q:What are the differences between geogrids and geonets?
- Geogrids and geonets are both geosynthetic materials used in civil engineering and construction, but they differ in structure and function. Geogrids are typically made of high-strength polymer materials, such as woven or knitted polyester or polypropylene, and have a grid-like structure. They are used to reinforce soil and provide tensile strength to the ground. Geogrids distribute loads over a wider area, reducing soil settlement and improving stability. They are commonly employed in applications like retaining walls, roads, embankments, and slopes. On the other hand, geonets are formed by extruding polymeric materials into a net-like configuration. They have a three-dimensional structure characterized by interconnected voids or channels. Geonets are used for drainage purposes, providing a pathway for liquids to flow through the material while preventing clogging. They are commonly used in applications such as landfill liners, subsurface drainage systems, and erosion control. In summary, the main difference between geogrids and geonets lies in their structure and function. Geogrids provide reinforcement and tensile strength to the soil, while geonets facilitate drainage and prevent clogging.
- Q:What is the recommended installation method for geogrids?
- The recommended installation method for geogrids is to first prepare the subgrade by removing any vegetation or loose soil, and then compact the subgrade to achieve a stable base. The geogrid should be unrolled and placed on top of the prepared subgrade, ensuring it is stretched and anchored securely at the edges. Overlapping the geogrid panels by the manufacturer's recommended amount and using connector devices may be necessary. Finally, the geogrid should be covered with an appropriate fill material and compacted in layers to ensure proper integration and load distribution.
- Q:How do geogrids improve the performance of geocomposite drains?
- Geogrids improve the performance of geocomposite drains by providing enhanced soil reinforcement and stabilization. They help to distribute the load from the surface and reduce stress on the geocomposite drain, preventing it from getting deformed or collapsing. Geogrids also increase the overall strength of the system, improving its longevity and efficiency in draining water or preventing soil erosion.
- Q:Introduction of steel plastic grille
- By a single band,
- Q:How do geogrids improve the performance of geotextile-reinforced slopes for erosion control?
- Geogrids improve the performance of geotextile-reinforced slopes for erosion control by adding an additional layer of stability and strength. They provide enhanced soil confinement, preventing soil movement and erosion. This reinforcement helps to distribute the load more evenly across the slope, reducing the risk of slope failure. Additionally, geogrids increase the tensile strength of the geotextile fabric, enhancing its ability to withstand stress and maintain its integrity over time. Overall, geogrids significantly improve the erosion control capabilities of geotextile-reinforced slopes, making them more effective and durable in preventing soil erosion.
- Q:What kind of circumstances need to shop geogrid
- In the treatment of bad foundation, or the transformation of the old road, geogrid can quickly improve the bearing capacity of the foundation, speed up the progress of construction; control of soft ground settlement development, shorten the construction period, so that the early use of the road.
